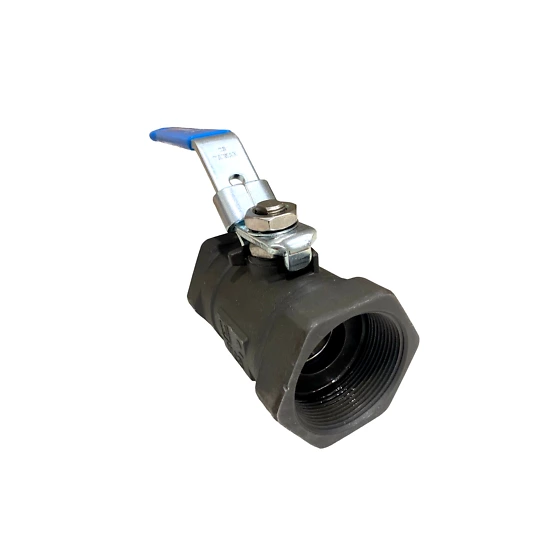

ASTM A216 WCB Ball Valves, ASME B16.34, 2PC, 1 IN, 1000 PSI
- Product Name:
- ASTM A216 WCB Ball Valves, 2 Piece
- Design Standard:
- ASME B16.34
- Body Material:
- ASTM A216 WCB
- Size:
- 1 Inch, DN25
- Pressure:
- 1000 PSI, PN16
- End Connection:
- NPT Threaded
- Operation:
- Lever
- Temperature Range:
- -20°C to 150°C
- Medium:
- Water, Oil, Gas, etc
Key Specifications / Features
The China ASTM A216 WCB Ball Valves Plant offers high-quality 2-piece body ball valves, adhering to ASME B16.34 standards. These valves are made from cast carbon steel, ensuring durability and reliability. They feature a 1-inch (DN25) size, rated for 1000 PSI (PN16) pressure, and come with NPT threaded ends for easy installation. The lever-operated design allows for simple and efficient operation, making them ideal for various industrial applications.
We offer two-piece split body ball valves available in both forged and investment cast versions. These valves feature a compact design and provide tight shut-off sealing. They are designed and manufactured to meet the latest international standards, including API 6D, ASME B16.34, and BS 5351, or their equivalents. Standard features include fire-safe construction, anti-static design, and blowout-proof stems. Made from stainless steel, these female-threaded ball valves are ideal for a wide range of applications involving water, oil, and gas.
Structural Features
Size: 1/2-4 Inch (DN15-DN100)
Material: SS 201, SS 304, SS 316 (ASTM A351 CF8, CF8M)
Pressure Rating: 1000 PSI, PN16
Suitable Media: Water, oil, air, and certain corrosive liquids (WOG)
Temperature Range: -20°C to 150°C
Connection: Female/Female threaded
Thread Types: NPT, BSPT, BSP, PT, DIN 2999, etc.
Sealing Materials: PTFE, RPTFE, PPL, etc.
Materials of Main Parts
| No | Part | Material |
| 1 | Cap | ASTM A351 CF8, CF8M |
| 2 | Sea | PTFE, RPTFE, PPL |
| 3 | Ball | SS 304,SS 316 |
| 4 | Seal Ring | PTFE |
| 5 | Body | ASTM A351 CF8, CF8M |
| 6 | Gasket | PTFE, RPTFE |
| 7 | Packing | PTFE, RPTFE, PPL |
| 8 | Stem | SS 304, SS 316 |
| 9 | Gland | SS 304 |
| 10 | Handle | SS 201 |
| 11 | Nut | A194-8 |
| 12 | Gasket | SS 304 |
| 13 | Lock Sheet | SS 201 |
| 14 | Holster | PVC |
Main Dimensions (mm)
| Size | Port | Pressure | d | L | H | H1 | E |
| 1/2 Inch | FP | 1000 PSI | 15 | 62 | 60 | 27 | 98 |
| 3/4 Inch | FP | 1000 PSI | 20 | 70 | 67 | 30.5 | 120 |
| 1 Inch | FP | 1000 PSI | 25 | 81 | 70 | 33.5 | 120 |
| 1-1/4 Inch | FP | 1000 PSI | 32 | 96 | 82 | 42 | 150 |
| 1-1/2 Inch | FP | 1000 PSI | 38 | 105 | 91 | 46.5 | 170 |
| 2 Inch | FP | 1000 PSI | 48 | 120 | 100 | 56.5 | 170 |
| 2-1/2 Inch | FP | 1000 PSI | 65 | 138 | 125 | 72.5 | 250 |
| 3 Inch | FP | 1000 PSI | 78 | 170 | 142 | 89 | 250 |
| 4 Inch | FP | 1000 PSI | 100 | 205 | 163 | 102.5 | 300 |
