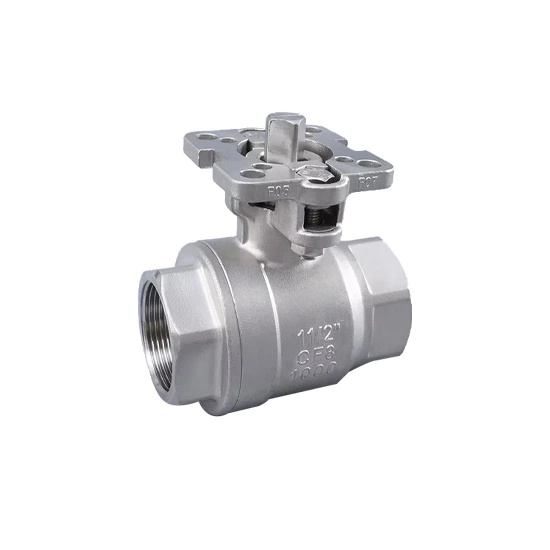

High Platform Ball Valve, ASTM A351 CF8, 1-1/2 IN, 1000 PSI

Key Specifications / Features

The High Platform Ball Valve Plant is a robust and reliable valve solution designed in accordance with the stringent ASME B16.34 standard. It features a cast stainless steel body made from ASTM A351 CF8 material, ensuring exceptional durability and corrosion resistance. With a nominal size of 1-1/2 inch (DN40) and a pressure rating of 1000 PSI, this full port ball valve offers minimal flow restriction and maximum efficiency. Its NPT threaded connections provide secure and easy installation. The high platform design is ideal for integration with actuators.

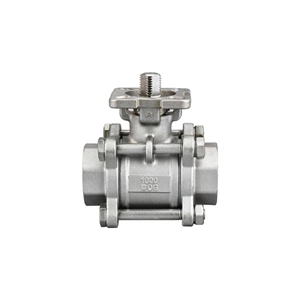

Direct Mounted Ball Valves are specifically designed for direct actuator mounting to ISO 5211 standards. These valves feature adjustable stem packing and blowout-proof stems, ensuring reliability and safety. They are rigorously tested, with 100% air testing conducted to meet or exceed international standards. Available in both cast and forged body configurations, these ball valves offer standard port or full bore options. They are designed and manufactured in strict compliance with international standards such as API 6D, ASME B16.34, BS 5351, or their equivalents.

Structural Features

» Type: High Platform Threaded Ball Valve
» Size Range: 1/2-4 Inch (DN15-DN100)
» Material: Stainless Steel 304, 316, etc.
» Pressure Rating: 1000 PSI, PN16
» Suitable Medium: Water, oil, air, and some corrosive liquids (WOG)
» Temperature Range: -20°C to 150°C
» Connection Type: F/F threaded
» Sealing Materials: PTFE, RPTFE, PPL, etc.
» Optional Features: Locking device or stem extension
» Mounting Options: Direct mounting to ISO 5211
» Port Configuration: Full port or regular bore
» Design Standards: ANSI B16.34, API 608
» Wall Thickness Standards: ANSI B16.34, EN 12516-3
» Thread Standards: NPT, BSPT, BSP, PT, DIN 2999, etc.
» Testing Standards: API 598, EN 12266
