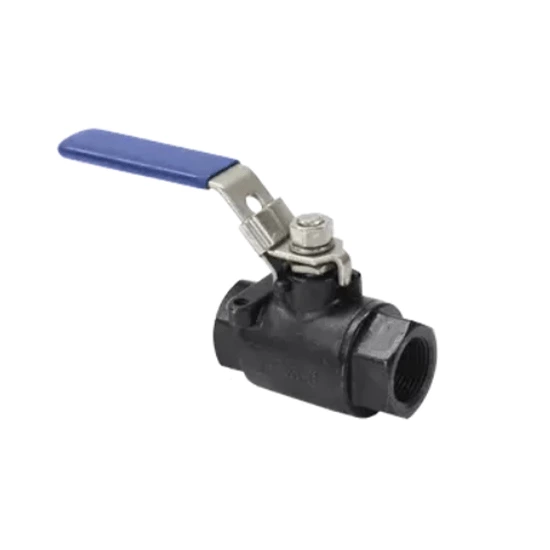

1000 PSI Ball Valve, ASME B16.34, ASTM A216 WCB, 3/4 IN, NPT
- Product Name:
- 2 Piece Threaded Ball Valve
- Design Standard:
- ASME B16.34
- Body Material:
- ASTM A216 WCB
- Size:
- 3/4 Inch, DN20
- Pressure:
- 1000 PSI, PN16
- End Connection:
- NPT Threaded
- Operation:
- Lever
- Temperature Range:
- -20°C to 150°C
- Medium:
- Water, Oil, Gas, etc
Key Specifications / Features
The 2-piece Threaded Ball Valve is a high-performance valve designed according to ASME B16.34 standards. It features a carbon steel ASTM A216 WCB body, ensuring durability and strength. With a 3/4-inch (DN20) size, it supports up to 1000 PSI and PN16 pressure ratings, making it suitable for a wide range of industrial applications. The valve is equipped with NPT threaded ends, offering easy installation and reliable sealing in fluid control systems.
We offer Two-Piece Split Body Ball Valves, available in both Forged and Investment Castings. These valves feature a compact structure and tight shut-off sealing. Designed and manufactured to the most updated international standards, including API 6D, ASME B16.34, BS 5351, or equivalents, they come with standard features such as Fire Safe, Anti-static, and Blow-out protection. The ball valve is widely used across various industries due to its robust design and stainless steel composition. This female stainless steel ball valve is ideal for applications involving water, oil, and gas.
Structural Features
» Product: 2-Piece Thread Ball Valve
» Size: 1/2-4 Inch (DN15-DN100)
» Material: SS 201, SS 304, SS 316 (ASTM A351 CF8, CF8M)
» Pressure: 1000 PSI, PN16
» Suitable Medium: Water, oil, air, and some corrosive liquids (WOG)
» Temperature Range: -20°C to 250°C
» Connection: F/F threaded
» Type of Thread: NPT, BSPT, BSP, PT, DIN 2999, etc.
» Sealing: PTFE, RPTFE, PPL, etc.
Materials of Main Parts
| No | Part | Material |
| 1 | Cap | ASTM A351 CF8, CF8M |
| 2 | Sea | PTFE, RPTFE, PPL |
| 3 | Ball | SS 304, SS 316 |
| 4 | Seal Ring | PTFE |
| 5 | Body | ASTM A351 CF8, CF8M |
| 6 | Gasket | PTFE, RPTFE |
| 7 | Packing | PTFE, RPTFE, PPL |
| 8 | Stem | SS 304, SS 316 |
| 9 | Gland | SS 304 |
| 10 | Handle | SS 201 |
| 11 | Nut | A194-8 |
| 12 | Gasket | SS 304 |
| 13 | Lock Sheet | SS 201 |
| 14 | Holster | PVC |
Main Dimensions (mm)
| Size | Port | Pressure | d | L | H | H1 | E |
| 1/2 Inch | FP | 1000 PSI | 15 | 62 | 60 | 27 | 98 |
| 3/4 Inch | FP | 1000 PSI | 20 | 70 | 67 | 30.5 | 120 |
| 1 Inch | FP | 1000 PSI | 25 | 81 | 70 | 33.5 | 120 |
| 1-1/4 Inch | FP | 1000 PSI | 32 | 96 | 82 | 42 | 150 |
| 1-1/2 Inch | FP | 1000 PSI | 38 | 105 | 91 | 46.5 | 170 |
| 2 Inch | FP | 1000 PSI | 48 | 120 | 100 | 56.5 | 170 |
| 2-1/2 Inch | FP | 1000 PSI | 65 | 138 | 125 | 72.5 | 250 |
| 3 Inch | FP | 1000 PSI | 78 | 170 | 142 | 89 | 250 |
| 4 Inch | FP | 1000 PSI | 100 | 205 | 163 | 102.5 | 300 |
