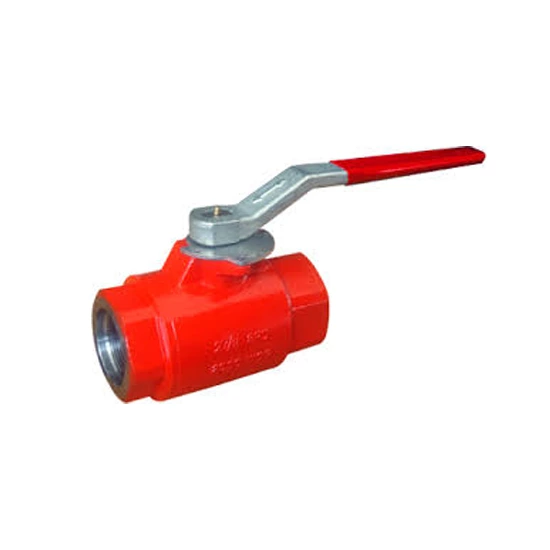

2PC Threaded Ball Valve, ASTM A216 WCB, 5000 PSI, NPT
- Product Name:
- 2PC Thread Ball Valve
- Body Material:
- Carbon Steel ASTM A216 WCB
- Size:
- Customized
- Pressure:
- 5000 PSI
- End Connection:
- NPT Threaded
- Features:
- Full Port, 2 Piece Body
Key Specifications / Features
The 2-Piece Threaded Ball Valve is constructed with a carbon steel ASTM A216 WCB body, offering strength and reliability for demanding applications. Featuring a full port design, it ensures maximum flow with minimal pressure drop. The valve is customizable in size and has a pressure rating of 5000 PSI, making it suitable for high-pressure systems. It comes with NPT threaded ends.
The Oil Field Thread Ball Valve is designed for reliable fluid control in oilfield applications. It features a robust ball valve body with valve tubes on both sides. The right side of the valve body's inner cavity is equipped with a secondary slide rail, while the valve rod passes through the body. A stable block is installed at the top of the valve rod, with a handwheel securely attached to the stable block. The valve rod also includes a limit device within its inner cavity for precise operation.
Technical Specifications
Size Range: NPS 2–4 Inch (DN50–DN100)
Temperature Range: -29°C to 120°C
Pressure: 3000 PSI, 5000 PSI
Body and Bonnet Material: ASTM A216 WCB
Seat Material: DELRIN
Ball and Stem Materials: SS 420, SS 304, SS 316
End Connections: ASME B1.20.1 (NPT), API 5B LP
Inspection and Testing: API 598
Medium: Water, gas, oil, etc.
Product Features
Threaded Body Construction
Adjustable Packing Gland
Blow-out-Proof Stem
Lockable Lever Handle
Lever Operated, Threaded
Floating Ball
Fire Safe Design
Rugged Locking Device
Grease Fitting
NACE MR0175 Compliant
Full Port or Reduced Bore Optional
Materials of Main Parts
| No | Part | Matarial |
| 1 | Body | ASTM A216 WCB |
| 2 | Body Seal | VITON |
| 3 | Bonnet | ASTM A216 WCB |
| 4 | Seats | DELRIN |
| 5 | Ball | SS 420, SS 304, SS 316 |
| 6 | Stem | ASTM A276 420 |
| 7 | Thrust Bearing | PTFE |
| 8 | Stem Seal | VITON |
| 9 | Stem Seal | VITON |
| 10 | Stem Bearing | PTFE |
| 11 | Stop Plate | CS+Ni |
| 12 | Pin with chain | Spring Steel |
| 13 | Retainer Ring | Spring Steel |
| 14 | Stop Pin | Carbon Steel |
| 15 | Hexagon Bolt | Carbon Steel |
| 16 | Grease Zerk | Ductile Iron |
| 17 | Handle | Spring Steel |

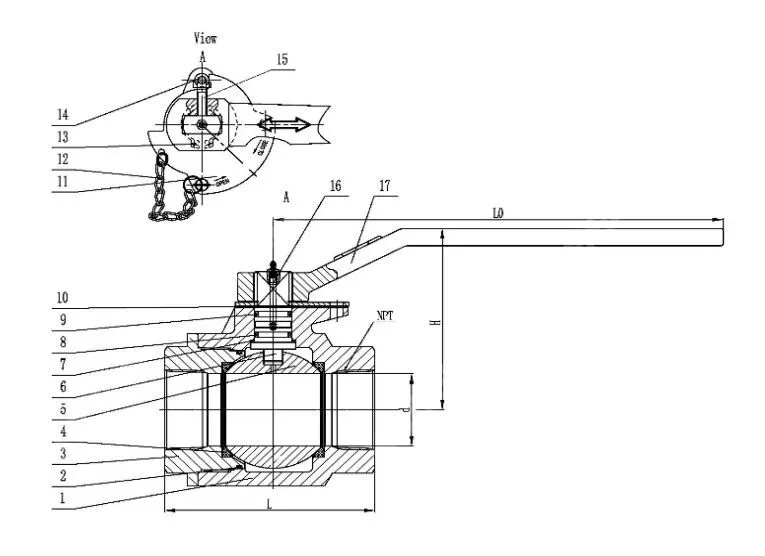

Main Dimensions (IN)
| Size | Port | Pressure | L | H | d | NPT | Lo | Weight (Lbs) | Torque (in.Lb) |
| 2” | RP | 3000PSI | 5.51 | 5.07 | 1.5 | 11.5 | 10 | 12.15 | 1750 |
| 2” | RP | 5000PSI | 5.51 | 5.07 | 1.5 | 11.5 | 10 | 14.20 | 2700 |
| 3” | RP | 3000PSI | 8.24 | 2 | 2 | 8 | 10 | 23.02 | 2350 |
| 4” | RP | 3000PSI | 8.72 | 3 | 3 | 8 | 20 | 42.90 | 3660 |
