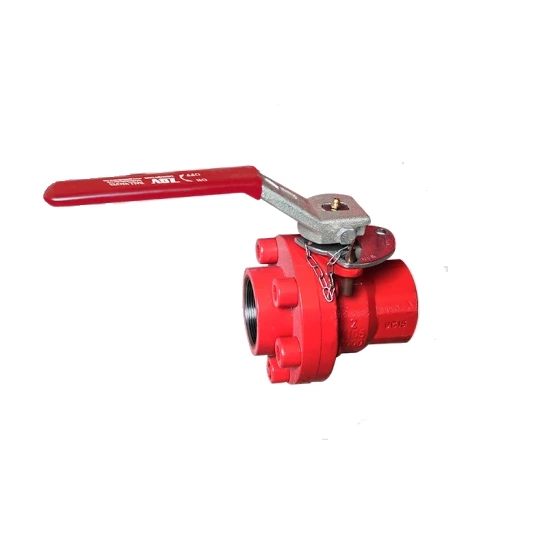

ASTM A105 Oilfield Ball Valve, 2 Inch, 5000 PSI, NPT, BB, FP
- Product Name:
- ASTM A105 Oilfield Ball Valve
- Body Material:
- ASTM A105
- Size:
- 2 Inch, DN50
- Pressure:
- 5000 PSI
- End Connection:
- NPT Threaded
- Operation:
- Lever
- Features:
- Bolted Body, Full Port
Key Specifications / Features
We are a reliable supplier of ASTM A105 oilfield ball valves, designed with a robust carbon steel body to withstand harsh conditions. These valves feature a 2-inch (DN50) size and a high-pressure rating of 5000 PSI. The bolted body design ensures durability and reliability, while the full port allows for unrestricted flow. NPT threaded ends ensure easy installation and a lever for simple operation.
This is an oil field ball valve, which includes a ball valve body and valve tubes. The left and right sides of the ball valve body are equipped with valve tubes. The right side of the inner cavity of the ball valve body features a second slide rail. The valve rod runs through the ball valve body. A stabilizing block is installed at the top of the valve rod, with a handwheel fixedly installed at the top of the stabilizing block. A limit device is installed within the inner cavity of the valve rod.
Technical Specification
» Size Ranges: NPS 2 Inch (RP), 2 Inch (FP), 3 Inch (FP)
» Design Pressure: 2500 PSI, 3000 PSI, 5000 PSI
» Material: ASTM A105, A216 WCB, A487 4C
» End Connections: ASME B1.20.1 (NPT), API 5B LP
» Temperature Range: -20°C to 120°C
» Medium: Water, Oil, Gas
Structural Features
» Back-seated Stem Blow-out Proof and Fire-Safe: Ensures safety and reliability.
» External Stem Lubrication and Vented Weather Seal: Enhances durability and protection against weather.
» Stainless Steel Trim: Provides maximum corrosion protection.
» Full and Reduced Port Configurations: Available to meet various application requirements.
» Pressure Equalization Hole in Ball: Prevents trapped pressure in the body cavity.
» Standard Locking Handle: Addresses safety and security concerns with a double locking feature for tank valves.
» NACE MR0175 Compliance: Ensures resistance to sulfide stress cracking.
» Inspection and Testing: API 598
» Material Specifications:
2500 PSI and 3000 PSI bodies: ASTM A216 WCB material.
5000 PSI bodies: ASTM A105 and A487 4C materials.
Materials of Main Parts
| No | Part | Material | |
| 1 | Body | ASTM A216 WCB | ASTM A487 4C |
| 2 | Body Seal | VITON | |
| 3 | Bonnet | ASTM A216 WCB | ASTM A487 4C |
| 4 | Seats | DELRIN | |
| 5 | Ball | ASTM A276 420 | |
| 6 | Stem | ASTM A276 420 | |
| 7 | Thrust Bearing | PTFE | |
| 8 | Stem Seal | VITON | |
| 9 | Stem Seal | VITON | |
| 10 | Stem Bearing | PTFE | |
| 11 | Stop Plate | CS+Ni | |
| 12 | Pin with chain | Stainless Steel | |
| 13 | Retainer Ring | Spring Steel | |
| 14 | Stop Pin | Spring Steel | |
| 15 | Screw | Carbon Steel | |
| 16 | Grease Zerk | Carbon Steel | |
| 17 | Handle | Ductile Iron | |
| 18 | Cap Screw | A193 B7M | |

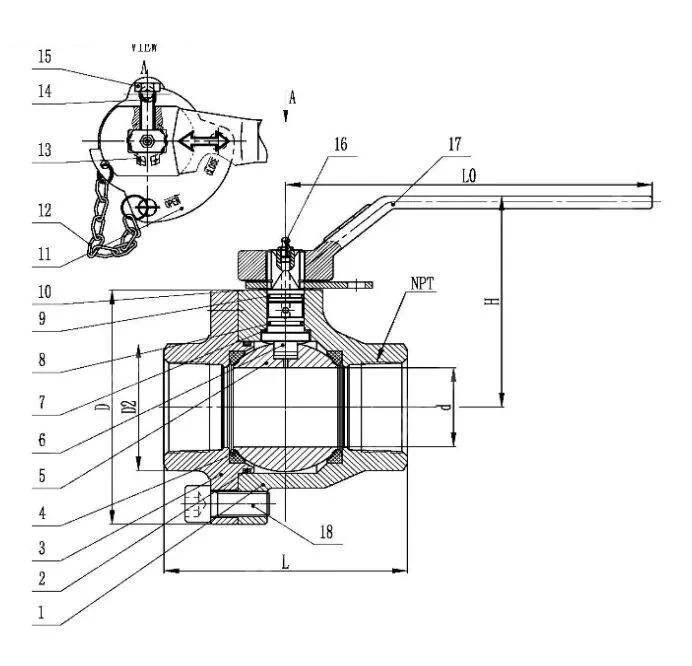

Main Dimensions (in)
| Size | Port | L | D | D2 | d | H | Lo | Weight (Lbs) | Torque (in.Lb) |
| 2 Inch | RP | 5.5 | 4.92 | 3 | 1.5 | 4.94 | 10 | 13.12 | 1750 |
| 2 Inch | RP | 5.5 | 4.92 | 3 | 1.5 | 4.94 | 10 | 13.12 | 2700 |
| 2 Inch | FP | 5.75 | 5.91 | 3.13 | 2 | 5.32 | 10 | 19.6 | 2350 |
| 2 Inch | FP | 5.75 | 5.91 | 3.13 | 2 | 5.32 | 10 | 19.6 | 3850 |
| 3 Inch | FP | 8.13 | 7.87 | 4.53 | 3 | 7.31 | 20 | 48.94 | 4100 |
| 3 Inch | FP | 8.13 | 7.87 | 4.53 | 3 | 7.31 | 31.5 | 49.93 | 7080 |
