ASTM A395 Ball Valve, 2-1/2 Inch, 2000 PSI, NACE MR0175, NPT
- Product Name:
- Oilfield Ball Valve, Full Port
- Body Material:
- Ductile Iron ASTM A395
- Size:
- 2-1/2 Inch, DN65
- Pressure:
- 2000 PSI
- End Connection:
- NPT Threaded
- Nace:
- NACE MR0175
Key Specifications / Features

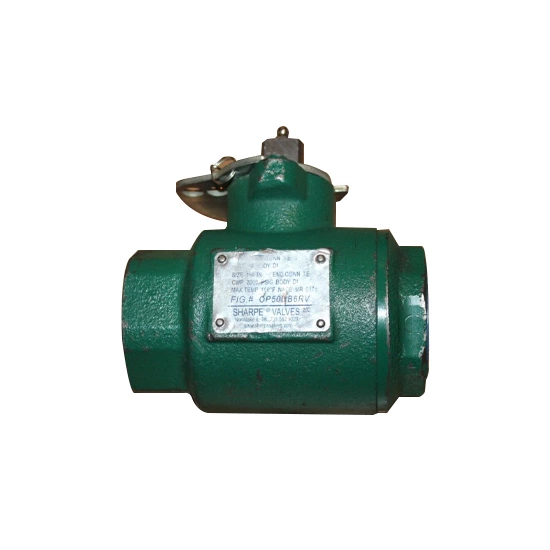

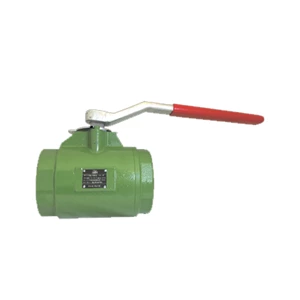

The Ductile Iron ASTM A395 Ball Valve, designed for oilfield applications, features a full port design with a size of 2-1/2 inch (DN65) and a pressure rating of 2000 PSI. It is NACE MR0175 compliant for resistance to sulfide stress cracking, making it ideal for harsh environments. The valve has NPT threaded connections for easy installation and reliable performance in demanding industrial and oilfield systems.
This ball valve is engineered specifically for oil field applications, featuring a durable valve body with valve tubes positioned on both sides. The right side of the inner cavity includes a second slide rail to enhance operational stability. The valve rod extends through the valve body, topped with a stable block that securely holds a handwheel. Additionally, a limit device is integrated within the valve rod's inner cavity, ensuring precise and reliable control.
Technical Specifications
» Size Range: NPS 1–4 Inch (DN25–DN100)
» Pressure Ratings: 1000 PSI, 1500 PSI, 2000 PSI NSCWP
» Temperature Range: -29°C to 120°C
» Body and Bonnet Material: Ductile Iron ASTM A395
» Seat Material: RPTFE, DELRIN
» Ball and Stem Material: SS420, SS304, SS316
» End Connections: ASME B1.20.1 (NPT), API 5B LP
» Inspection and Testing: API 598
» Suitable Mediums: Water, oil, gas
Product Features
» Threaded Body Construction
» Adjustable Packing Gland
» Blow-Out-Proof Stem
» Lockable Lever Handle
» Lever Operated, Threaded
» Floating Ball, 2000 W.O.G. Full Port
» Fire-Safe Design
» Rugged Locking Device
» Grease Fitting
» NACE MR-0175 Compliant
» Full Port or Reduced Bore Optional
Materials of Main Parts
| No | Part | Matarial |
| 1 | Body | Ductile Iron A395 |
| 2 | Body Seal | VITON |
| 3 | Bonnet | Ductile Iron A395 |
| 4 | Seats | RPTFE/SELRIN |
| 5 | Ball | SS420, SS304, SS316 |
| 6 | Stem | ASTM A276 420 |
| 7 | Thrust Bearing | PTFE |
| 8 | Stem Seal | VITON |
| 9 | Stem Seal | VITON |
| 10 | Stem Bearing | PTFE |
| 11 | Stop Plate | CS+Ni |
| 12 | Pin with chain | Stainless Steel |
| 13 | Retainer Ring | Spring Steel |
| 14 | Stop Pin | Spring Steel |
| 15 | Hexagon Bolt | Carbon Steel |
| 16 | Grease Zerk | Carbon Steel |
| 17 | Handle | Ductile Iron |

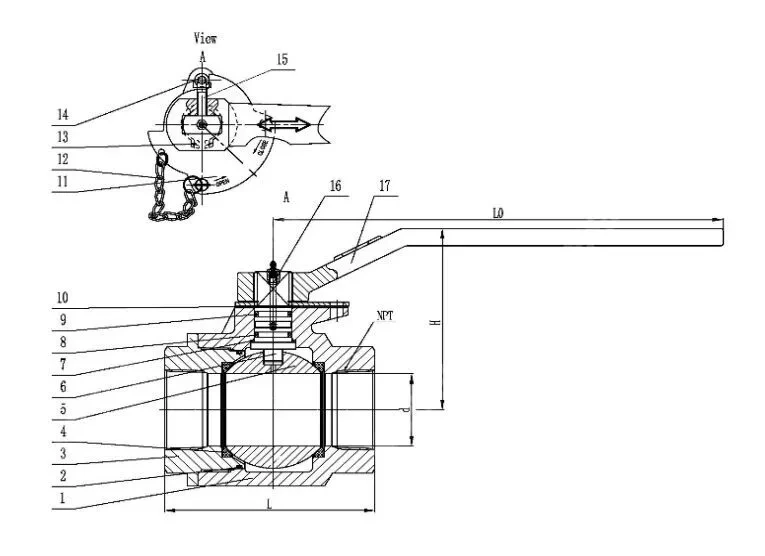

Main Dimensions (mm)
| Size | Port | Pressure | L(mm) | H(mm) | d(mm) | D(NPT) | KGS |
| 1" | FP | 2000PSI | 102 | 93 | 25.4 | 11.5 | 1.93 |
| 2" | RP/FP | 2000PSI | 140 | 134 | 38 | 11.5 | 6.00 |
| 2-1/2" | RP/FP | 2000PSI | 152 | 140 | 50 | 8 | 8.28 |
| 3" | RP/FP | 2000PSI | 190 | 140 | 50 | 8 | 9.00 |
| 4" | RP/FP | 2000PSI | 222 | 174 | 76 | 8 | 20.00 |
