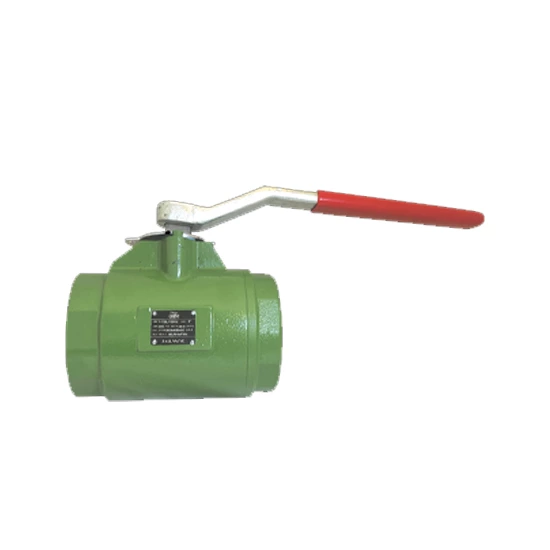

Oil Field Ball Valve, ASTM A395, 2-1/2 Inch, 2000 PSI, NPT
- Product Name:
- Oil Field Ball Valve, Full Port
- Body Material:
- Ductile Iron ASTM A395
- Size:
- 2-1/2 Inch, DN65
- Pressure:
- 2000 PSI
- End Connection:
- NPT Threaded
- Operation:
- Lever
Key Specifications / Features
The Oil Field Ball Valve is designed with a durable ductile iron ASTM A395 body for enhanced strength. Featuring a full port design, it comes in a 2-1/2 inch (DN65) size and is rated for 2000 PSI pressure. The valve has NPT threaded ends for secure connections and is operated by a lever for easy manual control.
This ball valve is specifically designed for oil field applications, consisting of a robust valve body and valve tubes on both the left and right sides. A second slide rail is incorporated into the right side of the valve body’s inner cavity, enhancing operational stability. The valve rod passes through the valve body, with a stable block mounted at its top. A handwheel is securely attached to the stable block, while a limit device is integrated into the valve rod's inner cavity for precise control.
Technical Specifications
» Size Range: NPS 1–4 Inch (DN25–DN100)
» Pressure Ratings: 1000 PSI, 1500 PSI, 2000 PSI NSCWP
» Temperature Range: -29°C to 120°C
» Body and Bonnet Material: Ductile Iron ASTM A395
» Seat Material: RPTFE, DELRIN
» Ball and Stem Material: SS420, SS304, SS316
» End Connections: ASME B1.20.1 (NPT), API 5B LP
» Inspection and Testing: API 598
» Suitable Mediums: Water, oil, gas
Product Features
» Threaded Body Construction
» Adjustable Packing Gland
» Blow-Out-Proof Stem
» Lockable Lever Handle
» Lever Operated, Threaded
» Floating Ball, 2000 W.O.G. Full Port
» Fire-Safe Design
» Rugged Locking Device
» Grease Fitting
» NACE MR-0175 Compliant
» Full Port or Reduced Bore Optional
Materials of Main Parts
| No | Part | Matarial |
| 1 | Body | Ductile Iron A395 |
| 2 | Body Seal | VITON |
| 3 | Bonnet | Ductile Iron A395 |
| 4 | Seats | RPTFE/SELRIN |
| 5 | Ball | SS 420, SS 304, SS 316 |
| 6 | Stem | ASTM A276 420 |
| 7 | Thrust Bearing | PTFE |
| 8 | Stem Seal | VITON |
| 9 | Stem Seal | VITON |
| 10 | Stem Bearing | PTFE |
| 11 | Stop Plate | CS+Ni |
| 12 | Pin with chain | Stainless Steel |
| 13 | Retainer Ring | Spring Steel |
| 14 | Stop Pin | Spring Steel |
| 15 | Hexagon Bolt | Carbon Steel |
| 16 | Grease Zerk | Carbon Steel |
| 17 | Handle | Ductile Iron |
Main Dimensions (mm)
| Size | Port | Pressure | L(mm) | H(mm) | d(mm) | D(NPT) | KGS |
| 1" | FP | 2000PSI | 102 | 93 | 25.4 | 11.5 | 1.93 |
| 2" | RP/FP | 2000PSI | 140 | 134 | 38 | 11.5 | 6.00 |
| 2-1/2" | RP/FP | 2000PSI | 152 | 140 | 50 | 8 | 8.28 |
| 3" | RP/FP | 2000PSI | 190 | 140 | 50 | 8 | 9.00 |
| 4" | RP/FP | 2000PSI | 222 | 174 | 76 | 8 | 20.00 |
