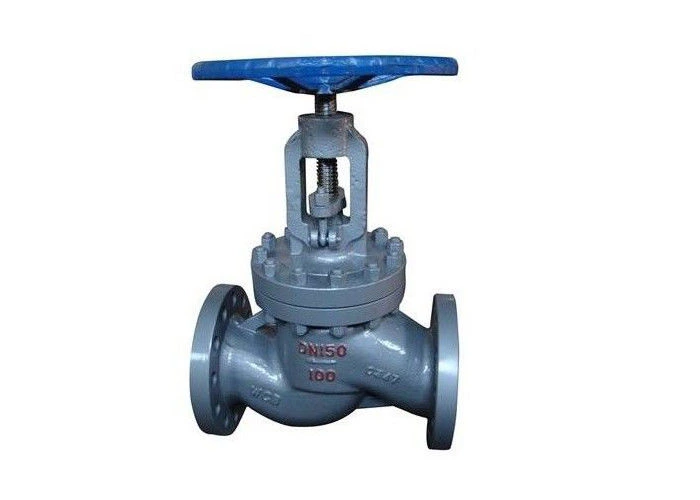

J41H Carbon Steel Stainless Steel Globe Valve , Flange Connection Threaded Globe Valve
- Size:
- DN10-DN200
- Pressure:
- PN1.6～16MPa
- High Light:
- threaded globe valve , stainless steel flanged globe valve
- Temperature:
- -29～570℃
- Applicable Media:
- Water, Oil, Steam And Other Non-corrosive Media
- Material Of Body:
- WCB
- Design Specification:
- GB/T 12235

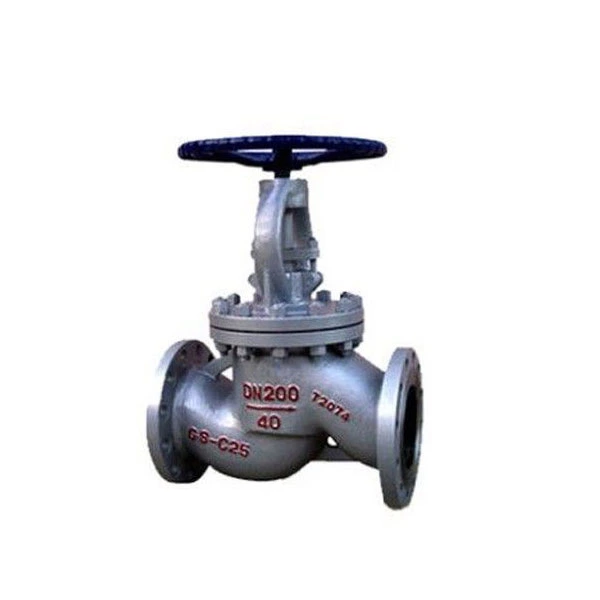

J41H Carbon Steel Stainless Steel Globe Valve Flange Connection Threaded Globe Valve
Specification:
Size: DN15-DN1200
Model:J40H
Pressure: PN16-PN250
Material: 1.0619/GP240GH/GS-C25(WCB), 1.1156 (LCB), 1.7357 (WC6) ,1.7379/1.7382(WC9),1.7363 (C5), 1.7389 (C12), 1.4308(CF8), 1.4408(CF8M), 1.4552(CF8C).Etc
Type: Rising Stem Flange end RF/FTJ/FM
Operation: Handwheel, gear worm ,Electric operated
Standard:
Design & Manufacture Std.: DIN3352,BS 1873,Etc
Face to Face Std.: DIN 3202, BS2080 F1, F2,Etc
End Connection Std.: DIN2543-2548,Etc
Test Standard: ISO5208, BS 6755 DIN 3230,Etc

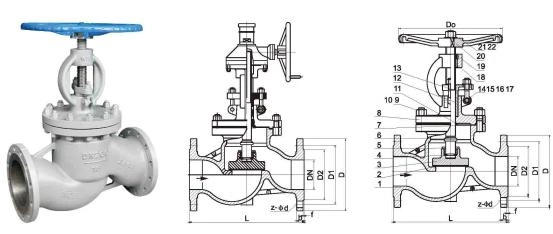

| NO. | Part Name | Material | |
| 01 | Body | ASTM A216WCB | GS-C25,CF8,CF8M |
| 02 | Seat Ring | ASTM A216+13Cr | |
| 03 | Disc | ASTM A105+13Cr | A105,SS304,SS316 |
| 04 | Split Ring | C.S | |
| 05 | Disc Cover | C.S | 25#,SS304,SS316 |
| 06 | Stem | ASTM A182 F6a | 13Cr,SS304,SS316 |
| 07 | Gasket | 304+Graphite | 304+Graphite |
| 08 | Bonnet | ASTM A216WCB | A105,SS304,SS316 |
| 09 | Stud | ASTM A193 B7 | |
| 10 | Nut | ASTM A194 2H | |
| 11 | Backseat | ASTM A216+13Cr | |
| 12 | Packing | Graphite | Graphite |
| 13 | Bushing | ASTM A216 F6a | |
| 14 | Gland | ASTM A216WCB | Cu Alloy |
| 15 | Pin | C.S | 13Cr,SS304,SS316 |
| 16 | Gland Bolt | ASTM A193 B7 | |
| 17 | Gland Nut | ASTM A194 2H | |
| 18 | Stem Nut | ZcuAl10Fe3 | |
| 19 | Screw | C.S | |
| 20 | Handwheel | ASTM A395 | C.S |
| 21 | H.W. Lock Nut | C.S | 25# |
