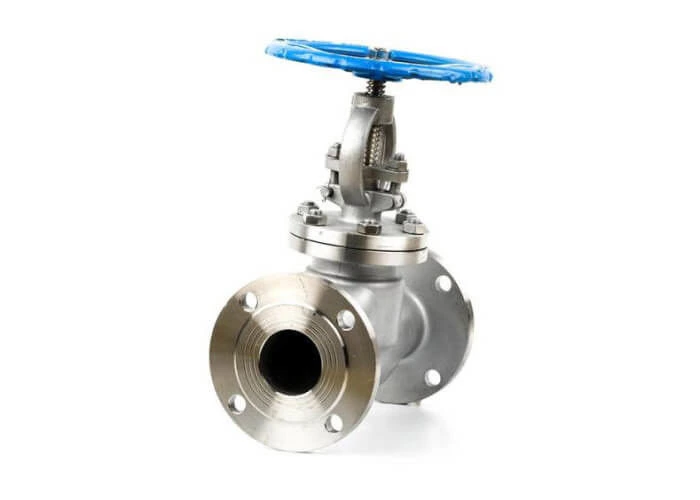

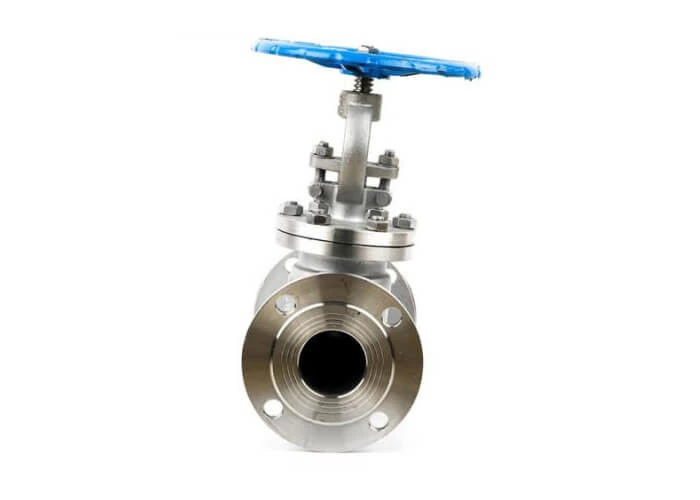

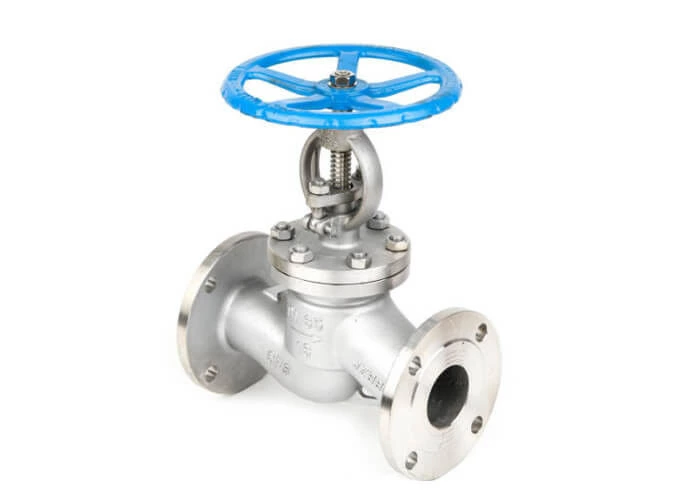

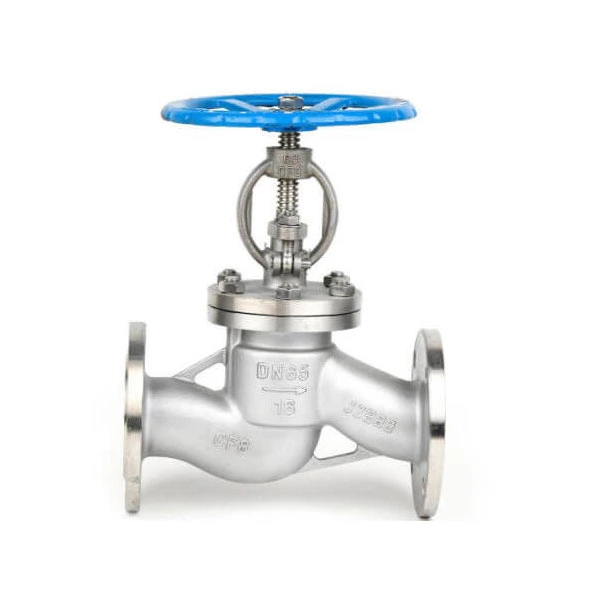

Pn16 CF8 Dn65 Stainless Steel Globe Valve BS1873 ANSI B16.34 Design
- Pressure:
- 150lb-1500lb
- Application:
- Cast Steel Globe Valve
- High Light:
- threaded globe valve , stainless steel flanged globe valve
- Standard:
- DIN, GB, ANSI, JIS
- Connection:
- Flange
- Stem Thread Position:
- Outside Screw Stem Globe Valve
Pn16 CF8 Dn65 Stainless Steel Hand Wheel Flange Globe Valve
Standard compliance:
1) Design and manufacture: BS1873, ANSI B16.34
2) Test and inspection: API598
3) Face to face dimensions: ANSI B16.10
4) Flanged end: ANSI B16.5
5) Butt-welding end: ANSI B16.25
6) Other standards (DIN, BS, JIS) is also available upon request.
Design Description
- Outside Screw and Yoke
- Bolted Bonnet
- Yoke Integral with Bonnet
- Loose Disc
- Integral Seat and Back Seat
- Rising Stem and Hand Wheel
- Available with Gear Operator
Material
- A351-CF8
- A351-CF8M
- A351-CF3M
- Other Materials upon Customer's Request
Ends
- Flanged Ends
Ratings
- ASME: 150# ~ 1500#
- JIS: 10K ~ 63K
- DIN: PN10 ~ PN160
Size
- 1/2" ~ 12"
