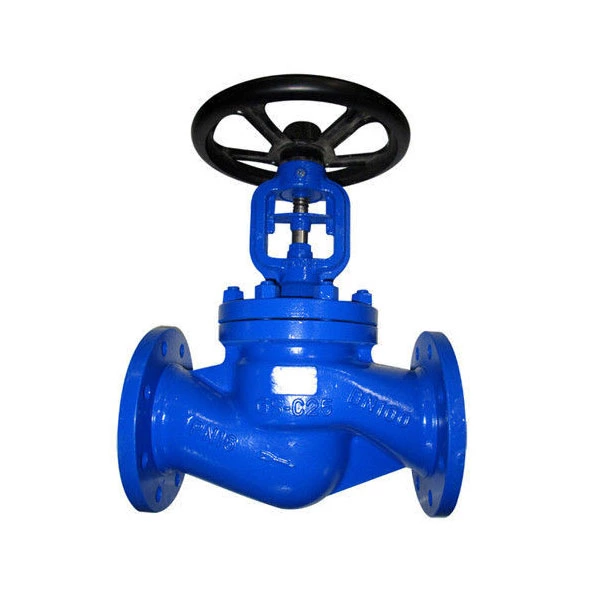

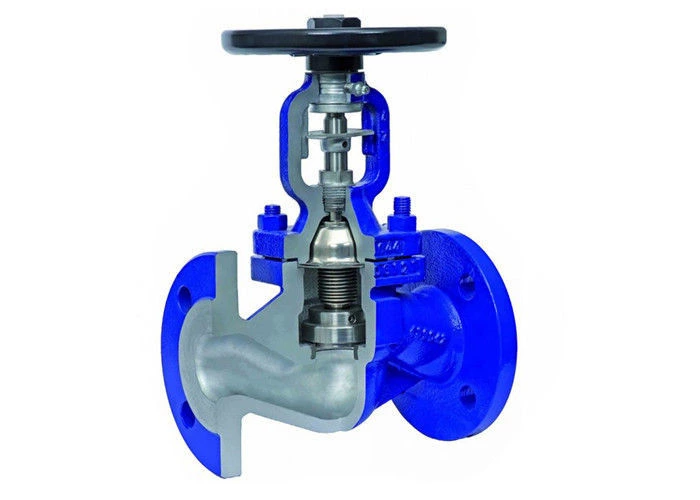

Durable Stainless Steel Globe Valve GS C25 DIN PN16 PN25 Air Steam Bellows Seal
- Certification:
- API ISO Ts CE
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Plywood Case
- Delivery Time:
- 7-30 work days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10000PCS/Mouth
Detailed Product Description
| Size: | DN10-DN200 | Pressure: | PN1.6～16MPa |
|---|---|---|---|
| Temperature: | -29～570℃ | Material Of Body: | WCB |
| Applicable Media: | Water, Oil, Steam And Other Non-corrosive Media | Design Specification: | GB/T 12235 |
| High Light: | ss globe valve , stainless steel flanged globe valve | ||
4 Inch Stainless Steel Globe Valve GS C25 DIN PN16 PN25 Air Steam Bellows Seal
echnical Specifications:
- Design & Manufacture standard: DIN3356
- Face to face dimension standard: DIN3202
- Flange standard: DIN2543 to DIN2546
- Test & Inspect: DIN3230
|
SPECIFICATIONS FOR BELLOWS SEAL GLOBE VALVES |
|||
|
Pressure rating and size: |
PN16,PN25,PN40 |
||
|
DN15 to DN600 |
|||
|
1/2"~24" |
|||
|
Material: |
Body : GS-C25, WCB, CF8, CF8M |
||
|
Disc : C.S+13Cr, SS304, SS316 |
|||
|
Stem : 1Cr13, SS304, SS316 |
|||
|
Bellows : SS304, SS316 |
|||
|
Bonnet : GS-C25, WCB, CF8, CF8M |
|||
|
Operated type |
Handwheel |
||
|
Structure: |
Bellows seal for high temperature medium |
||
|
Flange connection: |
EN1092 PN16, PN25, PN40 |
||
|
Medium: |
W.O.G |
||
|
Temperature: |
-20 to 425°C |
||
