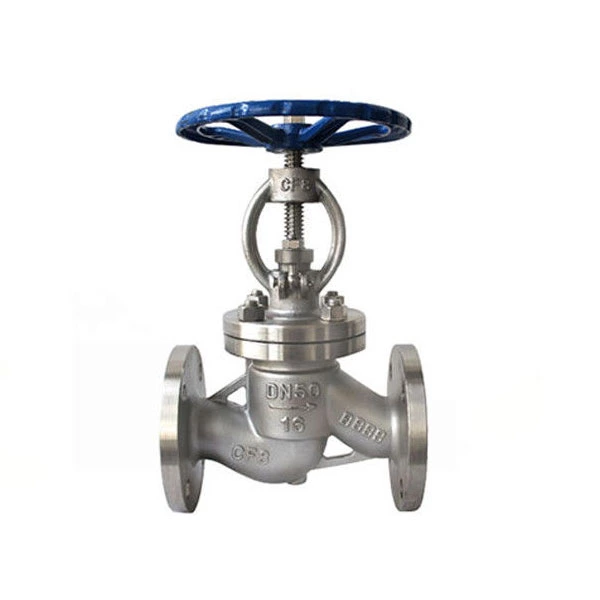

ANSI DIN Globe Valve Pn16-Pn40 With Manual Operation Good Sealing

Name: ANSI DIN Globe Valve Pn16-Pn40 With Manual Operation Good Sealing
Brand: JieYu Valve
SKU: 00123
Rating: 4.5 (56 reviews)

Body Material:: Wcb/CF8/CF8m
Application:: Needle Type Globe Valve, Plunger Type Globe Valve, Forged Steel Globe Valve, Bellows Globe Valve
High Light:: ss globe valve , threaded globe valve
Standard:: DIN, ANSI, JIS
Stem Thread Position:: Outside Screw Stem Globe Valve
Color:: Blue(as Per Customer)
Bolt Material:: Carbon Steel/Stainless Steel

Inquiry

Cast Steel/Stainless Steel/Forged Steel DIN Flanged Globe Valve Pn16--Pn40

Chief property and specification
Normal Pressure	Shell test	Water seal test
LB	Mpa	Mpa
1.6	2.4	1.8
2.5	3.8	2.8
4.0	6.0	4.4
6.4	9.6	7.0
10.0	15.0	11.0
16.0	24.0	18.0

Main external and connection dimension
DN	L	D	D1	D2	b	f	Z-d	H	Do	WT(kg)
PN16
10	130	90	60	40	14	2	4-14	198	120	4.7
15	130	95	65	45	16	2	4-14	218	120	5.2
20	150	105	75	55	16	2	4-14	258	140	7.1
25	160	115	85	65	16	2	4-14	275	160	7.4
32	180	135	100	78	18	2	4-18	280	180	8.5
40	200	145	110	85	18	3	4-18	330	200	12.5
50	230	160	125	100	18	3	4-18	350	240	20
65	290	180	145	120	18	3	4-18	400	280	25
80	310	195	160	135	20	3	8-18	355	280	35
100	350	215	180	155	22	3	8-18	415	320	50
125	400	245	210	185	24	3	8-18	460	360	75
150	480	280	240	210	24	3	8-23	510	400	100
200	600	335	295	265	26	3	12-23	710	400	210
250	650	405	355	320	30	3	12-23	768	450	446
300	750	460	410	375	30	3	12-23	925	500	648
