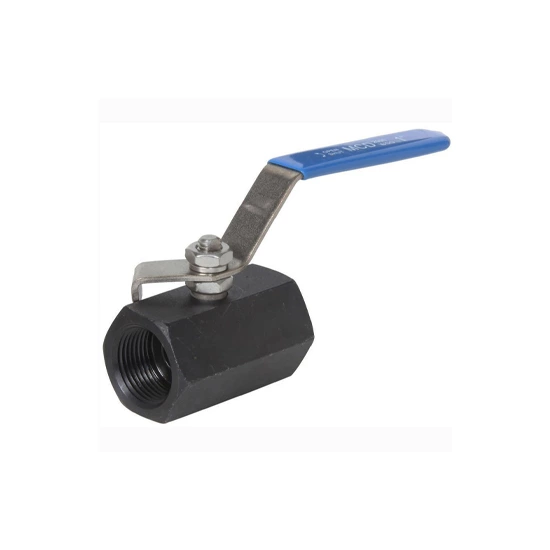

One Piece Hexagon Ball Valve, ASTM A105, 2000 PSI, FNPT Ends
- Product Name:
- One Piece Hexagon Ball Valve
- Body Material:
- ASTM A105
- Size:
- Customized
- Pressure:
- 2000 PSI
- End Connection:
- FNPT
- Operation:
- Lever
Key Specifications / Features
The One Piece Hexagon Ball Valve Manufacturer offers a durable and reliable carbon steel ball valve with an ASTM A105 body. This valve is designed with a customized size to meet specific requirements and features a high-pressure rating of 2000 PSI, making it suitable for demanding applications. It comes with FNPT (Female National Pipe Thread) threaded ends for easy installation and is operated via a lever for convenient and efficient control.
Product Range
Material: Carbon Steel ASTM A105
Size Range: NPS 1/4–2 Inch (DN6–DN50)
Pressure Rating: 2000 WOG/PSI
Threaded Ends: ANSI B1.20.1 (NPT)
Standards Compliance: ANSI B16.34, NACE MR-01-75
Port: Reduced Bore
Testing Standard: API 598
Temperature Range: -20°C to 150°C
Medium Compatibility: Water, Oil, Gas
The One Piece Hexagon Ball Valve is designed for controlling flow and stopping in hydraulic, fluid, and oil-gas pipelines. With a 2000 PSI threaded high-pressure rating, this valve boasts a compact structure, reliable sealing, and ease of maintenance. Its design minimizes flow resistance loss and ensures excellent sealing performance, while also being resistant to media erosion. This valve is easy to operate, maintain, and features a sleek, aesthetically pleasing design.

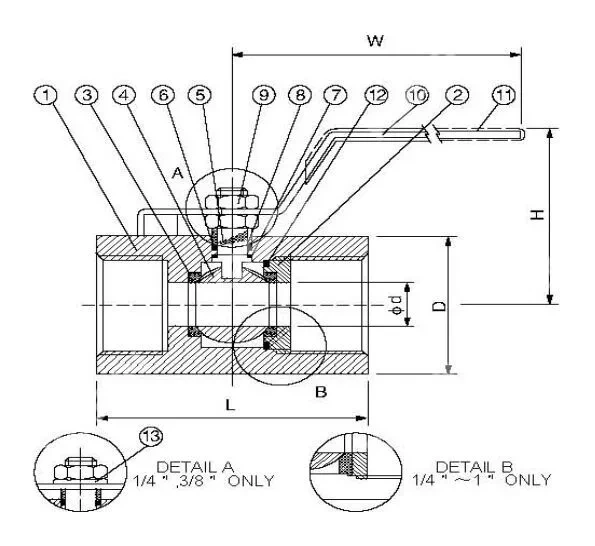

Materials of Main Parts
| No | Part | Material |
| 1 | BODY | ASTM A105 |
| 2 | CAP | ASTM A105 |
| 3 | SEAT | RPTFE |
| 4 | BALL | SS 316 |
| 5 | STEM | SS 316 |
| 6 | PACKING | PTFE |
| 7 | THRUST WASHER | PTFE |
| 8 | GLAND | SS 304 |
| 9 | NUT | SS 304 |
| 10 | HANDLE | SS 201 |
| 11 | HANDLE COVER | PVC |
| 12 | GASKET | PTFE |
| 13 | SPRING WASHER | SS 304 |
Main Dimensions (in)
| Size | Port | Pressure | d | D | L | H | W | Weight (Lbs) | Torque (in.Lb) |
| 1/4 Inch | RP | 2000 PSI | 0.20 | 0.83 | 1.70 | 1.25 | 2.63 | 0.29 | 42 |
| 3/8 Inch | RP | 2000 PSI | 0.28 | 0.98 | 1.86 | 1.33 | 2.63 | 0.44 | 42 |
| 1/2 Inch | RP | 2000 PSI | 0.36 | 1.18 | 2.46 | 2.19 | 4.65 | 0.71 | 49 |
| 3/4 Inch | RP | 2000 PSI | 0.49 | 1.42 | 2.75 | 2.42 | 4.65 | 1.19 | 73 |
| 1 Inch | RP | 2000 PSI | 0.63 | 1.81 | 3.38 | 2.57 | 4.72 | 2.09 | 113 |
| 1-1/4 Inch | RP | 2000 PSI | 0.79 | 2.17 | 3.69 | 2.90 | 5.75 | 3.09 | 253 |
| 1-1/2 Inch | RP | 2000 PSI | 0.96 | 2.40 | 4.00 | 3.10 | 5.75 | 3.75 | 288 |
| 2 Inch | RP | 2000 PSI | 1.26 | 2.95 | 4.50 | 3.54 | 6.00 | 6.13 | 391 |
