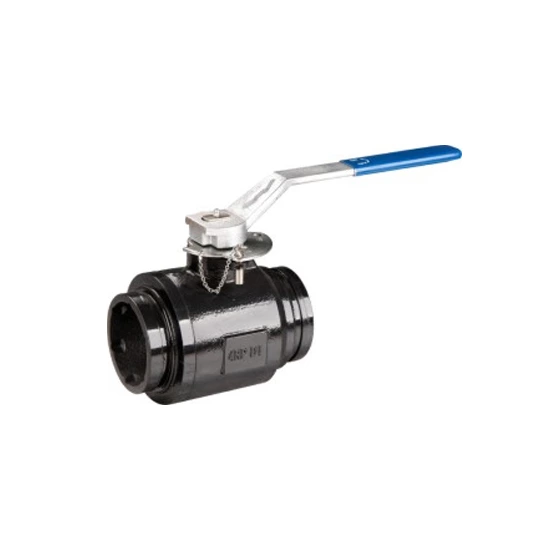

Grooved Ball Valve, Ductile Iron, 4 Inch, 1500 PSI, Lever
- Product Name:
- Grooved Oil Field Ball Valve
- Design Standard:
- 1500 PSI
- Body Material:
- Ductile Iron
- Size:
- 4 Inch, DN100
- End Connection:
- Grooved End
- Operation:
- Lever
Key Specifications / Features
This Grooved Ball Valve, supplied by a trusted manufacturer in China, features a durable ductile iron body, designed for high-pressure applications with a design pressure of 1500 PSI. With a 4-inch (DN100) size, it is ideal for oil field services, offering robust performance in demanding environments. The lever-operated mechanism ensures easy and efficient operation.
This ball valve is specifically designed for oil field applications. It consists of a robust ball valve body and a valve tube. The valve body features valve tubes on both the left and right sides. The right side of the inner cavity of the ball valve body is equipped with a secondary slide rail. The valve rod passes through the entire ball valve body. A stable block is securely mounted at the top of the valve rod, with a handwheel firmly attached to the top of the stable block for easy operation. Additionally, a limit device is installed within the inner cavity of the valve rod to ensure precise control and safety during operation.
Structural Features
» Size Range: NPS 2–6 Inch (DN50–DN150)
» Design Pressure: 1500 PSI (100 bar)
» Temperature Range: -29°C to 120°C
» Medium: Water, Oil, Gas, etc
» High-Grade Ductile Iron with Better Corrosion Resistance and Greater Yield Strength
» RPTFE Seat for 2 Inch, 3 Inch and 4 Inch; Delrin Seat for 6 Inch
» Standard port design
» NACE Valves Include Stainless Steel 316 Ball and Stem
» Locking Device Standard
» Grooved Dimensions Conform to ANSI/AWWA C606

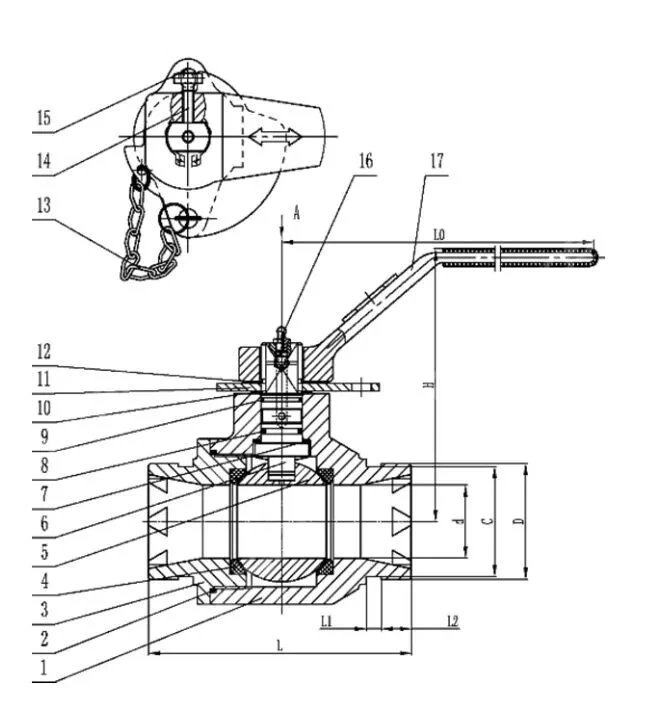

Materials of Main Parts
| No | Part | Material |
| 1 | Body | ASTM A395 |
| 2 | Body Seal | VITON |
| 3 | Bonnet | ASTM A395 |
| 4 | Seats | PTFE+15%GF/DELRIN |
| 5 | Ball | ASTM A182 F316 |
| 6 | Stem | ASTM A276 316 |
| 7 | Stem Bearing | PTFE |
| 8 | Stem Seal | VITON |
| 9 | Stem Seal | VITON |
| 10 | Thrust Bearing | PTFE |
| 11 | Stop Plate | CS+Ni |
| 12 | Retainer Ring | Spring Steel |
| 13 | Pin with chain | Stainless Steel |
| 14 | Bolt | Carbon Steel |
| 15 | Screw | Spring Steel |
| 16 | Grease Zerk | Carbon Steel |
| 17 | Handle | Ductile Iron |
Main Dimensions (Inch)
| Size | Pressure | L | D | C | d | L1 | L2 | H | Lo | Weight (Lbs) | Torque (in.Lb) |
| 2 Inch | 1500 PSI | 5.51 | 2.375 | 2.25 | 1.5 | 0.31 | 0.63 | 5.59 | 8.5 | 9.46 | 710 |
| 3 Inch | 1500 PSI | 6.73 | 3.5 | 3.344 | 2 | 0.31 | 0.63 | 5.51 | 10 | 17.2 | 945 |
| 4 Inch | 1500 PSI | 8.27 | 4.5 | 4.334 | 3 | 0.37 | 0.63 | 6.83 | 13.5 | 35.94 | 2155 |
| 6 Inch | 1500 PSI | 10.12 | 6.625 | 6.455 | 5 | 0.37 | 0.63 | 10.13 | 39.4 | 95.39 | 4425 |
