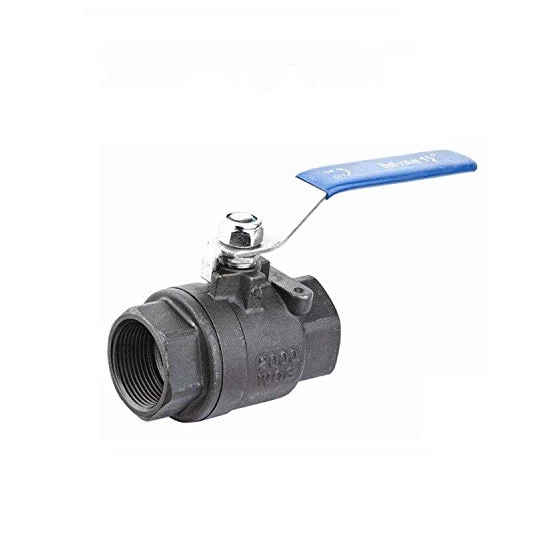

Locking Handle Ball Valve, A216 WCB, 1 IN, 2000 PSI, NPT, FP
- Product Name:
- Locking Handle Ball Valve, 2 Piece, Seal-Welded, FP
- Body Material:
- ASTM A216 WCB
- Size:
- 1 Inch, DN25
- Pressure:
- 2000 PSI
- End Connection:
- NPT Threaded
- Operation:
- Lever (Locking Handle)
- Temperature Range:
- -20°C to 150°C
- Medium:
- Water, Oil, Gas, etc
Key Specifications / Features
The China Locking Handle Ball Valve Plant offers a robust and reliable valve solution, featuring an ASTM A216 WCB cast carbon steel body designed for durability and strength. This 1-inch, DN25 valve is rated for 2000 PSI, ensuring it can handle high-pressure applications. Its two-piece construction with seal-welded joints enhances its integrity and prevents leakage. The full port design allows for maximum flow efficiency, while the NPT threaded ends provide easy installation and compatibility with standard piping systems.
The 2000PSI threaded high-pressure ball valve is primarily utilized for controlling flow and shutting off in hydraulic, fluid, and oil-gas pipelines. This type of valve is distinguished by its compact design, reliable sealing, and simple structure, which makes it easy to maintain. It is resistant to erosion from media, ensuring long-term durability. The valve is also designed for easy operation and maintenance, contributing to its overall efficiency.
Key features of this high-pressure ball valve include minimal flow resistance loss, dependable sealing performance, user-friendly operation, and an aesthetically pleasing appearance. These characteristics make it an ideal choice for applications requiring high performance and reliability in demanding environments.
Structural Features
» Port: Full Prot
» Size: 1/4 inch to 4 Inches
» Pressure: 2000 PSI
» SEAT: RPTFE/MPTFE
» Ends: ASME B1.20.1 (NPT)
» DIN 259/DIN 2999/ISO 228/BSP/PT
» 2-Piece Investment Casting Body
» Seal-Weld Body
» Adjustable Packing Gland
» Blow-out-Proof Stem
» Lockable Lever Handle
» 150 PSI Saturated Steam
» 250 PSI Steam Service (Multi-Seal Seat)
» Spring Return Oval Handle
» Test Standard: API 598, ASME B16.34, NACE MR-0175

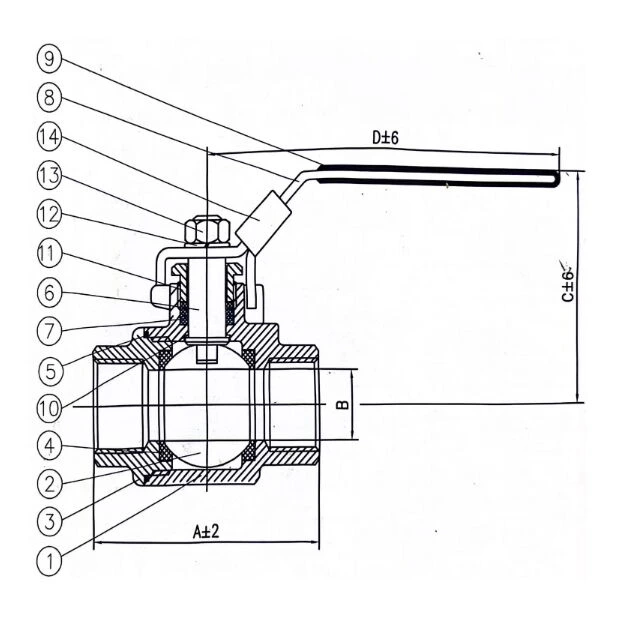

Structural Diagram
Materials of Main Parts
| Item | PART | MATERIAL |
| 1 | BODY | A216 WCB (CS) |
| 2 | BALL | SS 316, SS 304 |
| 3 | END CAP | A216 WCB (CS) |
| 4 | SEAT | RPTFE |
| 5 | BODY SEAL | RPTFE |
| 6 | STEM | SS 316, SS 304 |
| 7 | SETM SEAL | PTFE |
| 8 | HANDLE | SS 201 |
| 9 | HANDLE COVER | PVC |
| 10 | THRUST WASHER | RPTFE |
| 11 | GLAND NUT | SS 304 |
| 12 | HANDLE WASHER | SS 304 |
| 13 | HANDLE NUT | A2-70 (SS) |
| 14 | LOCKING PAD | SS 201 |
Main Dimensions (mm)
| Size | Port | Pressure | A | B | C | D | Kgs |
| 1/4 Inch | FP | 2000 PSI | 53 | 8 | 52 | 90 | 0.25 |
| 3/8 Inch | FP | 2000 PSI | 53 | 10 | 52 | 90 | 0.25 |
| 1/2 Inch | FP | 2000 PSI | 57 | 15 | 58 | 100 | 0.29 |
| 3/4 Inch | FP | 2000 PSI | 66 | 20 | 61 | 110 | 0.45 |
| 1 Inch | FP | 2000 PSI | 80 | 25 | 70 | 120 | 0.74 |
| 1-1/4 Inch | FP | 2000 PSI | 94 | 32 | 75 | 160 | 1.20 |
| 1-1/2 Inch | FP | 2000 PSI | 101.5 | 38 | 90 | 160 | 1.46 |
| 2 Inch | FP | 2000 PSI | 116 | 50 | 106 | 175 | 2.10 |
| 2-1/2 Inch | FP | 2000 PSI | 156 | 65 | 133 | 220 | 4.60 |
| 3 Inch | FP | 2000 PSI | 178 | 80 | 140 | 235 | 6.55 |
| 4 Inch | FP | 2000 PSI | 226 | 100 | 160 | 358 | 12.50 |
