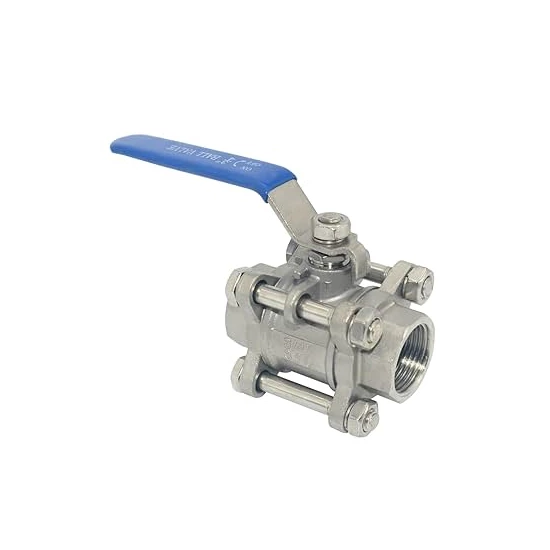

1000 PSI Ball Valves, ASTM A351 CF8, 1 IN, DN25, NPT, Lever
- Product Name:
- 3 Piece Threaded Ball Valve
- Body Material:
- ASTM A351 CF8, Cast Stainless Steel
- Size:
- 1 Inch, DN25
- Pressure:
- 1000 PSI
- End Connection:
- NPT Threaded
- Operation:
- Lever
- Temperature Range:
- -20°C to 150°C
- Medium:
- Water, Oil, Gas, etc
Key Specifications / Features
The 1000 PSI Ball Valves Factory from China specializes in producing high-pressure, 3-piece threaded ball valves. These valves are made from cast stainless steel, specifically ASTM A351 CF8, ensuring corrosion resistance and durability. They have a 1-inch diameter (DN25) and feature NPT threaded ends for secure connections. Operated by a lever, these valves offer easy and reliable control.
Three-Piece Bolted Body Ball Valves are available in both Forged and Investment Castings, offering Straight through two ports or Multi-ports structures. These valves are designed and manufactured to meet the latest international standards, including API 6D, ASME B16.34, BS 5351, or their equivalents. They come with standard features such as Fire Safe, Anti-static, and Blow-out Proof capabilities. The ball valve is widely used across various industries due to its robust design and stainless steel construction. This female stainless steel ball valve is ideal for applications involving water, oil, and gas, making it a versatile choice for multiple industrial needs.
Structural Features
» Product: 3 Piece Thread Ball Valve
» Size: 1/4-4 Inch (DN8-DN100)
» Material: SS 201, SS 304, SS 316 (ASTM A351 CF8, CF8M)
» Pressure: 1000 PSI, PN16
» Suitable medium: water, oil, air and some corrosive liquid, etc (WOG)
» Temperature Range: -20°C to 150°C
» Connection: F/F threaded
» Type of thread: NPT, BSPT, BSP, PT, DIN2999 ETC
» Sealing: PTFE, RPTFE, PPL ETC
Materials of Main Parts
| No | Part | Material |
| 1 | Body | ASTM A351 CF8, CF8M |
| 2 | Seat | PTFE, RPTFE, PPL |
| 3 | Cap | ASTM A351 CF8, CF8M |
| 4 | Ball | SS 304, SS 316 |
| 5 | Stem | SS 304, SS 316 |
| 6 | Nut | SS 304 |
| 7 | Gasket | SS 304 |
| 8 | Holster | PVC |
| 9 | Handle | SS 201 |
| 10 | Stem Nut | SS 304 |
| 11 | Nut | SS 304 |
| 12 | Packing | SS 304 |
| 13 | Thrust Washer | SS 304 |
| 14 | Bolt | SS 304 |
Dimensions (mm)
| Size | Port | Pressure | d | L | H | W |
| 1/4 Inch | FP | 1000 PSI | 11.6 | 68 | 100 | 100 |
| 3/8 Inch | FP | 1000 PSI | 12.7 | 68 | 100 | 100 |
| 1/2 Inch | FP | 1000 PSI | 15 | 72 | 130 | 130 |
| 3/4 Inch | FP | 1000 PSI | 20 | 82 | 130 | 130 |
| 1 Inch | FP | 1000 PSI | 25 | 90 | 165 | 165 |
| 1-1/4 Inch | FP | 1000 PSI | 32 | 112 | 165 | 165 |
| 1-1/2 Inch | FP | 1000 PSI | 38 | 120 | 190 | 190 |
| 2 Inch | FP | 1000 PSI | 50 | 145 | 190 | 190 |
| 2-1/2 Inch | FP | 1000 PSI | 65 | 185 | 250 | 250 |
| 3 Inch | FP | 1000 PSI | 80 | 210 | 250 | 250 |
| 4 Inch | FP | 1000 PSI | 100 | 250 | 280 | 280 |
