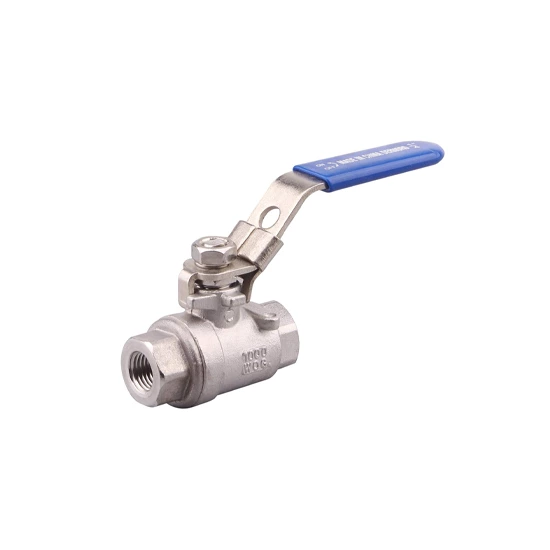

Stainless Steel Ball Valve, CF8M, 3/4 IN, 3000 PSI, 2 PC, FP
- Product Name:
- Stainless Steel Ball Valve, 2 Piece, Seal-Welded, FP
- Body Material:
- ASTM A351 CF8M
- Size:
- 3/4 Inch, DN20
- Pressure:
- 3000 PSI
- End Connection:
- NPT Threaded
- Operation:
- Lever
- Temperature Range:
- -20°C to 150°C
- Medium:
- Water, Oil, Gas, etc
Key Specifications / Features
The China Stainless Steel Ball Valve Plant offers a high-quality 2-piece body ball valve, crafted from ASTM A351 CF8M stainless steel. This full port valve features seal-welded construction for enhanced durability and reliability. With a 3/4 inch (DN20) size, it supports a maximum pressure of 3000 PSI and is equipped with NPT threaded ends for easy installation. The lever-operated design ensures smooth and efficient operation, making it ideal for various industrial applications requiring robust and precise flow control.
The 3000 high-pressure ball valve is engineered with a 3000 PSI pressure rating, making it highly suitable for demanding high-pressure applications in various industrial settings. Its robust design ensures exceptional durability and reliability, which is why it is widely utilized in industries such as petrochemicals, gas and oil, and hydraulics.
The body of the 3000 PSI internal thread ball valve is manufactured using a silica gel casting process, resulting in a well-structured and visually appealing design. The valve seat features an elastic sealing structure, which not only provides a highly reliable seal but also ensures smooth and easy operation when opening and closing the valve.
Furthermore, the valve rod is designed with a bottom-mounted structure and an inverted seal. This innovative design prevents the valve rod from being forced out in the event of abnormal pressure buildup within the valve chamber, enhancing the overall safety and reliability of the valve.
Structural Features
» 2-Piece Threaded, Full Port 1/4-2 Inch
» Seal Weld Construction
» ASTM A351 CF8M
» Rating of 3000 CWP
» NACE MR0175 Compliant
» Tested to API 598
» Locking Device Handle
» NPT Threaded Ends Comply with ANSI B1.20.1
» Blowout Proof Ball Valve Stem
» Anti-Static Ball Valve Device
» Mounting Pad

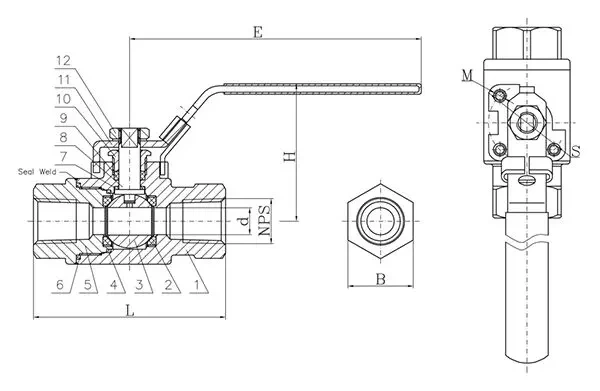

Structural Diagram
Materials of Main Parts
| No | Part | Material |
| 1 | BODY | ASTM A351 CF8M |
| 2 | SEAT | DELRIN, PEEK |
| 3 | BALL | SS 316 |
| 4 | WASHER | SS 316 |
| 5 | BONNET | ASTM A351 CF8M |
| 6 | GASKET | SS 304 |
| 7 | WASHER | GRAPHITE |
| 8 | STEM | SS 316 |
| 9 | PACKING | RPTFE |
| 10 | GLAND | SS 304 |
| 11 | HANDLE | SS 201+PVC |
| 12 | NUT | A2-70 |
Main Dimensions (mm)
| Size | Port | Pressure | d | L | H | S | M | E |
| 1/4 Inch | FP | 3000 PSI | 10 | 76 | 62 | 36 | M5 | 145 |
| 3/8 Inch | FP | 3000 PSI | 12.7 | 76 | 62 | 36 | M5 | 145 |
| 1/2 Inch | FP | 3000 PSI | 12.7 | 90 | 62 | 36 | M5 | 145 |
| 3/4 Inch | FP | 3000 PSI | 19 | 100 | 73 | 42 | M5 | 180 |
| 1 Inch | FP | 3000 PSI | 25 | 118 | 80 | 50 | M6 | 190 |
| 1-1/2 Inch | FP | 3000 PSI | 38 | 135 | 115 | 70 | M8 | 250 |
| 2 Inch | RP | 3000 PSI | 38 | 140 | 115 | 70 | M8 | 250 |
