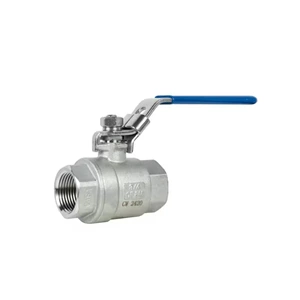

Full Port Ball Valve, ASTM A216 WCB, 3600 PSI, EUE, NPT

Key Specifications / Features

The Full Port Oilfield Ball Valve, manufactured with a carbon steel ASTM A216 WCB body, is designed for high-performance applications in oil and gas fields. It offers a customizable size and is rated for a pressure of 3600 PSI, ensuring reliability under extreme conditions. The valve features NPT ends with 8rd threads/EUE for secure and robust connections. Operated by a lever, this valve provides ease of use and efficient flow control.

This ball valve is designed specifically for use in oil fields, featuring a ball valve body and valve tubes on both the left and right sides. The right side of the inner cavity of the valve body is equipped with a second slide rail, allowing for smooth operation. The valve rod runs through the body, and a stable block is positioned at the top of the rod for stability. A handwheel is securely fixed to the top of the stable block for manual operation, while a limit device is installed within the inner cavity of the valve rod to ensure precise control and prevent over-travel.

Product Range

» Size Ranges: NPS 2-3/8 Inch, 2-7/8Inch
» Pressure: 2000, 3000, 3600 WOG/PSI, Full Port
» Material: ASTM A216 WCB (Carbon Steel), A351 CF8M (Stainless Steel)
» End Connections: ASME B1.20.1 (NPT), API 5B LP
» Temperature Range: -20°C to 120°C
» Medium: Water, Oil, Gas
» Blow-Out Proof Stem for enhanced safety
» Delrin Seat for durability and sealing
» Standards:
   Inspection and Test: API 598
   Threads: API 5B
   NACE MR-01-75 compliance for corrosion resistance in sour gas applications

Materials of Main Parts

Main Dimensions (Inch)
