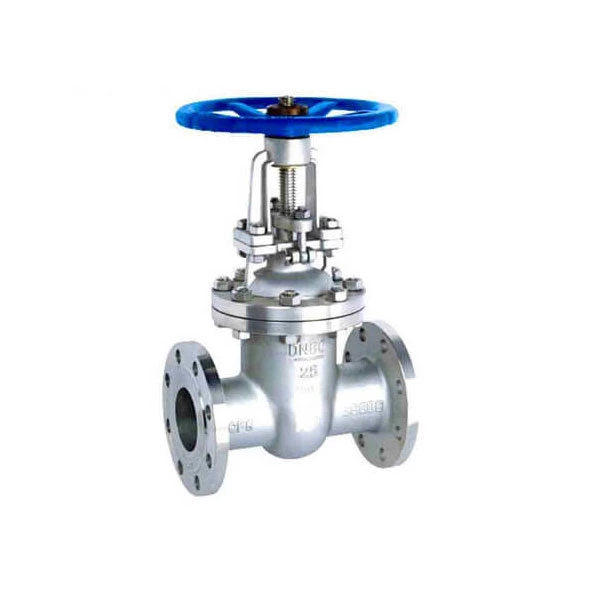

OEM/ODM Stainless Steel Gate Valve For Water / Sewage / Fire Protection
- Certification:
- API ISO Ts CE
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Plywood Case
- Delivery Time:
- 7-30 work days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10000PCS/Mouth
Detailed Product Description
| Material: | Stainless Steel | Structure: | Gate |
|---|---|---|---|
| Function: | Water,Oil Field,Power Station | Medium: | Water Oil Gas Air Etc. |
| Application: | General | Pressure: | 1.6 Mpa |
| High Light: | ss gate valve , full port gate valve | ||
High quality gate valve for water, sewage, fire protection, oil, Acid, alkali, ammonia, urea, sulfur-containing natural
Main material list
| Part | Material |
| Body | Ductile Iron, cast steel, stainless steel, etc |
| Disc | Ductile Iron +EPDM; WCB, CF8, CF8M |
| Stem nut | Bronze/stainless steel |
| Shaft | SS420 / SS431/ SS304 |
Pressure and temperature
| Working Pressure | PN10 / PN16 / PN25/PN40 |
| Testing Pressure |
Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. |
| Working Temperature | -20°C to 400°C |
| Suitable Media | Water, Oil and gas etc. |
Features & Benefits
•O-ring effectively reduce the leakage and can be easily replaced under pressure.
•Epoxy painted providing an increased resistance to rust and corrosion.
•Packaged in pallet box containers, adequately protected for sea shipment.
•All valve are 100% tested.
•Various materials and services available to meet your unique requirement
