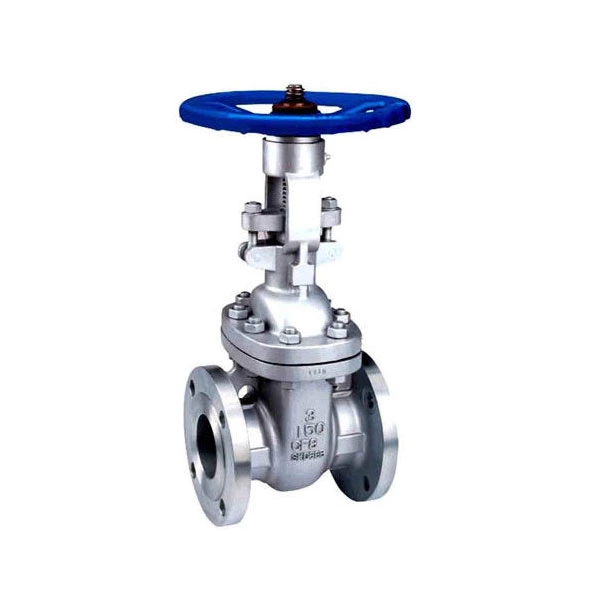

DIN 3352 Stainless Steel Gate Valve Double Flanged Pattern Gate Valve
- Certification:
- API ISO Ts CE
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Plywood Case
- Delivery Time:
- 7-30 work days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10000PCS/Mouth
Detailed Product Description
| Media: | Water,oil,gas | Structure: | Gate |
|---|---|---|---|
| Body Material: | Stainless Steel | Pressure: | Medium Pressure |
| Application: | General | Material: | Stainless Steel |
| High Light: | flange type gate valve , full port gate valve | ||
DIN 3352 Stainless Steel Double Flanged Pattern Gate Valve
Applicable standard Design and manufacturing : DIN3352
Length of face to face : DIN 3202
Flange end size : DIN 2543-2546
Inspection and test : DIN 3230
Product Range:
Size : 2"~ 40"
Pressure :PN16-PN64
Material : CF8,CF8M, CF3,CF3M
|
Pressure (Mpa):PN 1.6 Mpa |
|||
|
Size (DN) |
Length of face to face |
Height (open) |
Weight(kg) |
|
50 |
150 |
305 |
15 |
|
65 |
170 |
354 |
17 |
|
80 |
180 |
402 |
23 |
|
100 |
190 |
437 |
43 |
|
125 |
200 |
496 |
51 |
|
150 |
210 |
541 |
68 |
|
200 |
230 |
699 |
105 |
|
250 |
250 |
815 |
176 |
|
300 |
270 |
914 |
285 |
|
350 |
290 |
1189 |
356 |
|
400 |
310 |
1350 |
568 |
|
450 |
330 |
1680 |
702 |
|
500 |
350 |
1907 |
895 |
|
600 |
390 |
2050 |
1045 |
|
Pressure (Mpa):PN 2.5 Mpa |
|||
|
Size (DN) |
Length of face to face |
Height (open) |
Weight(kg) |
|
50 |
150 |
325 |
20 |
|
65 |
170 |
363 |
30 |
|
80 |
180 |
415 |
39 |
|
100 |
190 |
453 |
58 |
|
125 |
200 |
505 |
80 |
|
150 |
210 |
556 |
101 |
|
200 |
230 |
744 |
190 |
|
250 |
250 |
865 |
290 |
|
300 |
270 |
948 |
405 |
|
350 |
290 |
1269 |
510 |
|
400 |
310 |
1450 |
650 |
|
450 |
330 |
1680 |
702 |
|
500 |
350 |
1907 |
895 |
|
600 |
390 |
2050 |
1045 |
