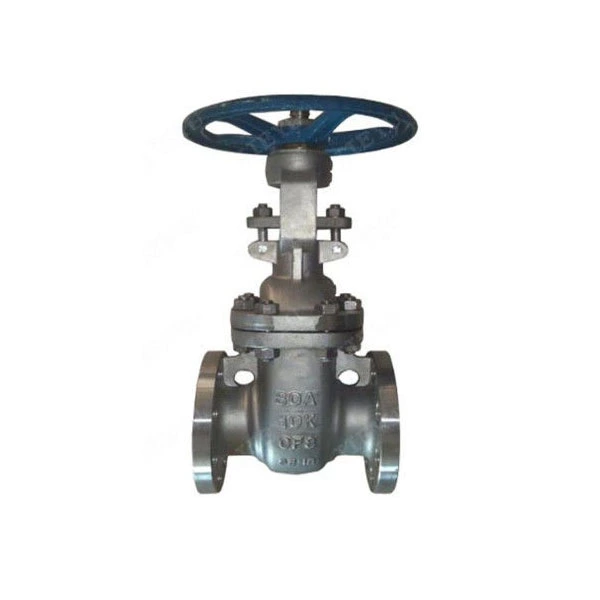

JIS 10k 80A Stainless Steel Gate Valve , CF8 Rising Stem Gate Valve
- Type:
- Straight-through
- Pressure:
- Ordinary Pressure
- Application:
- Industrial Usage, Water Industrial Usage, Household Usage
- Materials:
- Staninless Steel CF8 CF8m CF3 CF3m CF8c
- High Light:
- ss gate valve , full port gate valve
- Standard:
- JIS
- Connection Form:
- Flanged(RF. RTF, FM0)
- Seal Surface:
- Wedge Gate Valve
- Actuator:
- Handwheel ,Gear Operated
- Usage:
- Flow Control
- Thread Position Of Valve Rod:
- Outside Gate Valve
JIS 10K 80A Stainless Steel CF8 Rising Stem Gate Valve
Specification:
Size: 1/2"-24"
Pressure: 150LB~1500LB
Material: WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, Etc.
Type: Rising Stem, BB, FB, OS&Y
Operation: Hand Wheel. Gear, Electricty, Etc.
Full Port Design, OS&Y, Outside and Screw, Bolted bonnet, Back Seal Structure
Flexible wedge, Fully guided, Choice of Solid or Split wedge
Renewable or welded seat
Extended stem design for low temperature
Flanged or Butt-welding ends
Standard:
Design And Manufacture: API 600, API 6D, BS1414, BS5351, JIS B2073 B2083, Etc
Face To Face (End To End): ANSI B16.10, API 6D, JIS B2002, Etc
Flanged Connection: ANSI B16.5JISB2212-JISB2214, Etc
Test And Inspection: API 598, API 6D, JIS B2003, Etc
| NO. | Part Name | Material | ||
| 01 | Body | ASTM A216WCB | ASTM A351 CF8 | ASTM A351 CF8M |
| 02 | Seat Ring | ASTM A216+13Cr | ASTM A351 CF8 | ASTM A351 CF8M |
| 03 | Wedge | ASTM A216+13Cr | ASTM A351 CF8 | ASTM A351 CF8M |
| 04 | Stem | ASTM A276 420 | ASTM A182 F304 | ASTM A182 F316 |
| 05 | Gasket | 304+Graphite | 304+Graphite | 316+Graphite |
| 06 | Bonnet | ASTM A216WCB | ASTM A351 CF8 | ASTM A351 CF8M |
| 07 | Stud | ASTM A193 B7 | ASTM A193-B8 | ASTM A193-B8M |
| 08 | Nut | ASTM A194 2H | ASTM A194-8 | ASTM A194-8M |
| 09 | Backseat | ASTM A216+13Cr | ASTM A351 CF8 | ASTM A351 CF8M |
| 10 | Packing | Graphite | Graphite | Graphite |
| 11 | Pin | C.S | S.S | S.S |
| 12 | Gland Bolt | ASTM A193 B7 | ASTM A193-B8 | ASTM A193-B8M |
| 13 | Gland Nut | ASTM A194 2H | ASTM A194-8 | ASTM A194-8M |
| 14 | Bushing | ASTM A216 F6a | S.S | S.S |
| 15 | Gland | ASTM A216WCB | ASTM A351 CF8 | ASTM A351 CF8M |
| 16 | Stem Nut | ZcuAl10Fe3 Bronze | ZcuAl10Fe3 Bronze | ZcuAl10Fe3 Bronze |
| 17 | Lubricator | Cu | Cu | Cu |
| 18 | Retaining Nut | C.S | C.S+Cr | C.S+Cr |
| 19 | Handwheel | ASTM A47 | ASTM A47 | ASTM A47 |
| 20 | H.W. Lock Nut | C.S | C.S+Cr | C.S+Cr |
