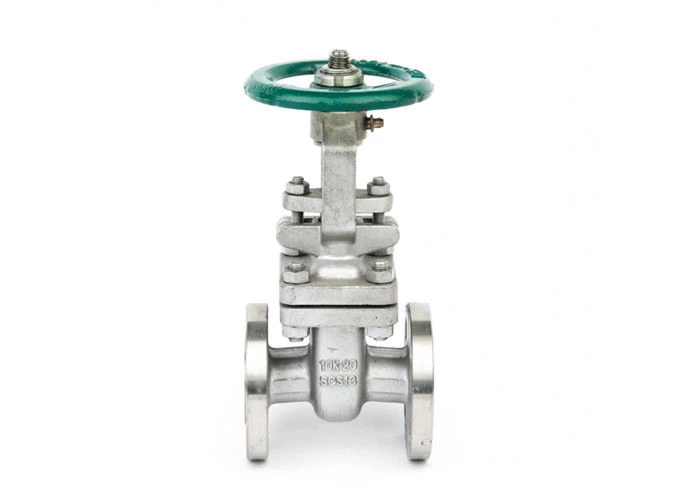

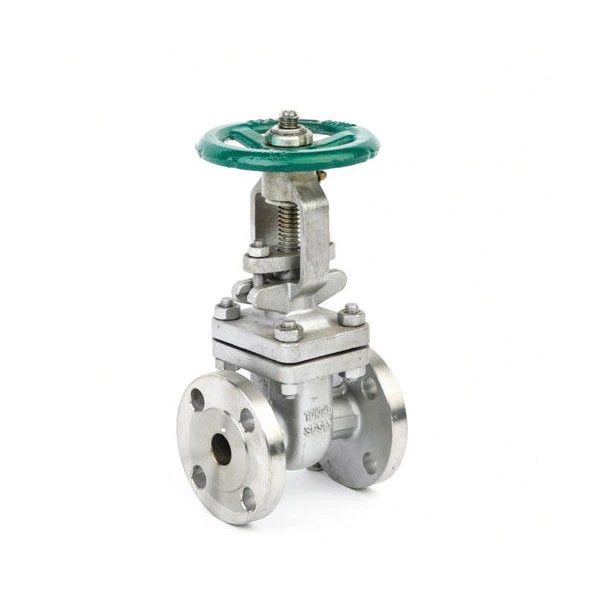

ANSI 150lb Flanged Stainless Steel Gate Valve With Handwheel , Straight Through Type
- Type:
- Straight-through
- Pressure:
- Ordinary Pressure
- Application:
- Industrial Usage, Water Industrial Usage, Household Usage
- Materials:
- Stainless Steel
- High Light:
- ss gate valve , full port gate valve
- Standard:
- ANSI
- Media:
- Water
- Connection Form:
- Flange
- Temperature:
- Ordinary Temperature
- Specification:
- 1/2"-48"(Dn15-Dn1200)
- Seal Surface:
- Wedge Gate Valve
- Actuator:
- Manual
- Usage:
- Regulation
- Thread Position Of Valve Rod:
- Outside Gate Valve
- Connection Type:
- RF Flanged Or Rtj Flanged
ANSI 150LB Stainless Steel Flanged Gate Valve with Handwheel
Function Description:
Gate valve is a valve that the valve plate moves along the vertical direction in the pipeline.
Advantages of gate valve:
1.Small fluid resistance
2.The torque for opening and closing is small, so it is easy to open and close.
3.The medium flowing direction is not restricted, and it doesn't disturb flowing and reduce the pressure of pipeline.
4. Short length structure
5. Good sealing performance
6. Simple shape, good casting process, widely used
Application:
Applicable Temperature: ≤425 ºC
Main Materials: WCB/CF8/CF8M/CF3/CF3M
Applicable Medium: Water / Oil / Gas / Causticity Medium
Pressure Rating: PN10-PN100, 150LB-1500LB
Size Range: 1/2" ~ 48"(DN15-DN1200)
Main Material:
| ITEM | PART | MATERIAL | ||
| 1 | Body | CF8M/CF3M | CF8/CF3 | WCB |
| 2 | Disc | CF8M/CF3M | CF8/CF3 | WCB |
| 3 | Nut | A194-8 | ||
| 4 | Gasket | 304+Graphite | ||
| 5 | Bolt | A194-8 | ||
| 6 | Bonnet | CF8M/CF3M | CF8/CF3 | WCB |
| 7 | Stem Packing | PTFE | ||
| 8 | Hanging Pin | 304 | ||
| 9 | Eye bolt | 304 | ||
| 10 | Nut | A193-B8 | ||
| 11 | Sleeve | Brass | ||
| 12 | Wheel Handle | FCD | ||
| 13 | Stem Nut | 304 | ||
| 14 | Gland | 304 | ||
| 15 | Stem | 304 | 304 | F6A |
| 16 | Gland | 304 | ||
