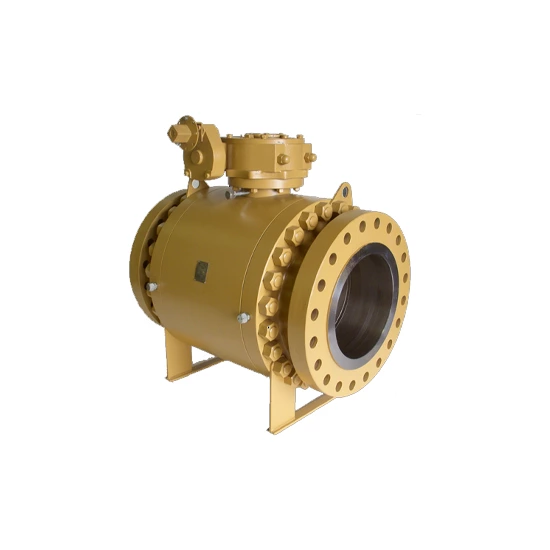

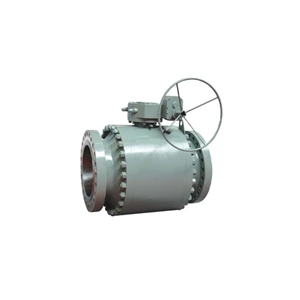

Side Entry Trunnion Ball Valve, API 6D, A105N, 24 IN, 600 LB

Key Specifications / Features

The Side Entry Trunnion Mounted Ball Valve is a high-performance valve designed for critical industrial applications. It complies with API 6D standards and is constructed from ASTM A105N forged carbon steel, ensuring durability and reliability. The valve features a 24-inch diameter (DN600) and a pressure rating of 600 LB (PN100), making it suitable for high-pressure environments. It is equipped with raised face (RF) flanged ends for secure and leak-free connections.

Trunnion mounted ball valves ensure easy and smooth operation even at high line pressures. The carefully aligned bearings facilitate low torque operation. The ball is fixed in position yet free to turn. All cast trunnion ball valves are made with reliable, high-quality castings and feature a fire-safe design certified according to BS 6755, API 607, and API 6FA. They meet all applicable ASME standards. Cast steel trunnion ball valves manufactured are available in two types: Two Piece Split Body and Three Piece Bolted Body. They are designed and manufactured to the most updated international standards, including API 6D, ASME B16.34, and BS 5351 or equivalents. These valves come with standard features such as fire-safe design, anti-static properties, and stem blow-out proofing.

Technical Specification

» Product: Trunnion Mounted Ball Valve
» Size Ranges: NPS 2–48 Inch (DN50–DN1200)
» Temperature Range: -46°C to 120°C
» Design Pressure: Class 150–2500 LB (PN10–PN420)
» Materials: Cast Carbon Steel, Stainless Steel, Duplex, or Other Specials
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other specials
» Seat Materials: RPTFE, DEVLON, PEEK
» End Connections: Flanged RF, RTJ, Welded
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face to Face (End to End): ASME B16.10
» Flanged Connection: ASME B16.5, ASME B16.47
» Test and Inspection: API 598, API 6D
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A

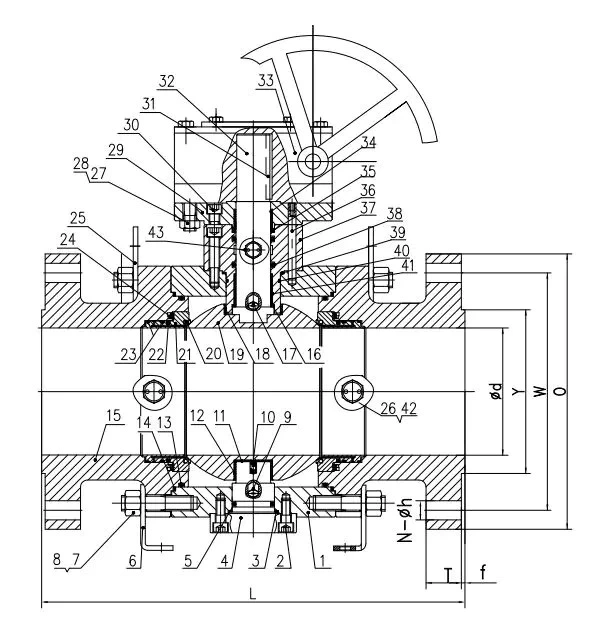

Structural Diagram

Product Features

» Double Block And Bleed(DBB)
» Low Operating Torque
» Emergency Sealing Device
» Fireproof Structure Design
» Anti-static Structure
» Reliable seat sealing structure
» Single Sealing (automatic Pressure Relief In Middle Cavity Of Valve)
» Double Sealing (double Piston)
» Safety Relief Device
» Special Structure Of Automatic Pressure Relief Towards Upper Stream
» Blow-out Proof Stem
» Corrosion Resistance And Sulfide Stress Resistance
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port or Reduce Bore
