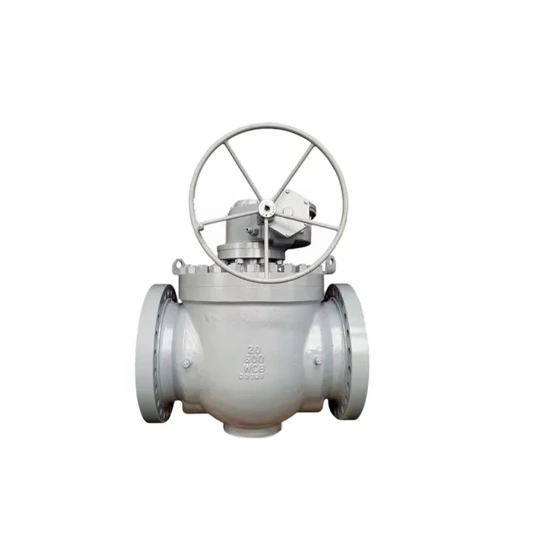

Reduced Bore Top Entry Ball Valve, API 6D, A216 WCB, 10*8 IN

Key Specifications / Features

This Reduced Bore Top Entry Ball Valve, compliant with API 6D standards, features a cast carbon steel ASTM A216 WCB body for excellent strength and durability. With a 10 x 8-inch (DN250 x DN200) size, it is rated for Class 1500 LB and PN250 pressure, making it suitable for high-pressure applications. The valve is equipped with RTJ flanged ends.

Top Entry Trunnion Ball Valves are the perfect solution for both offshore and onshore systems. These valves are designed with convenience of operation and maintenance in mind, simplifying in-line disassembly for trim inspection or internal repairs, even in restrictive spaces. They offer excellent corrosion resistance and superior sealing performance at both high and low pressures. Manufactured in a single forged or cast piece, these valves are configured with two independent seats for bi-directional sealing. They are produced in accordance with customer-specific requirements and international standards.

Technical Specifications

» Size Range: NPS 2-60 Inch (DN50-DN1500)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Cast Carbon Steel, Stainless Steel, Duplex, or Other Special Alloys (ASTM A216 WCB, WCC, A352 LCB, LCC, A351 CF8, CF8M, CF3, CF3M)
» Ends Connections: Flanged RF, RTJ, Welded BW
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Temperature Range: -46°C to 200°C
» Medium: Water, Gas, Oil
» Standards:
   Design and Manufacture: API 6D, GB/T 19672, GB/T 12237
   Face-to-Face Dimensions: ASME B16.10, GB/T 12221
   Flanged Connections: ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79
   Test and Inspection: API 598, API 6D, GB/T 13927
   Butt Welded End: ASME B16.25
   Fire Safety Standards: API 607, API 6A

Product Features

» One-Piece Flange Top Entry Trunnion Design
» Double Block and Bleed (DBB/DIB-1/DIB-2) Design Diversity
» One-Piece Ball and Stem for Precise Positioning
» Anti-Blowout One-Piece Ball/Stem Design
» O-Rings Plus Fire-Safe Packing to Prevent Leakage
» Corrosion-Resistant Low-Friction Bearings
» Wave Springs for Upstream and Downstream Sealing
» Stainless Steel Sealant Injection Fittings for Emergency Stem or Seat Sealing
» Inline Repairable Due to Reasonable Seat Retainer Design
» Minimized Torque Required to Open and Close Valve
» Anti-Static Grounding Between Ball, Stem, and Body
» Integral Top Works Direct Mounting Pad
» Optional Locking Device or Stem Extension
» Emergency Rescue and Valve Lubrication
» Low Torque Value
