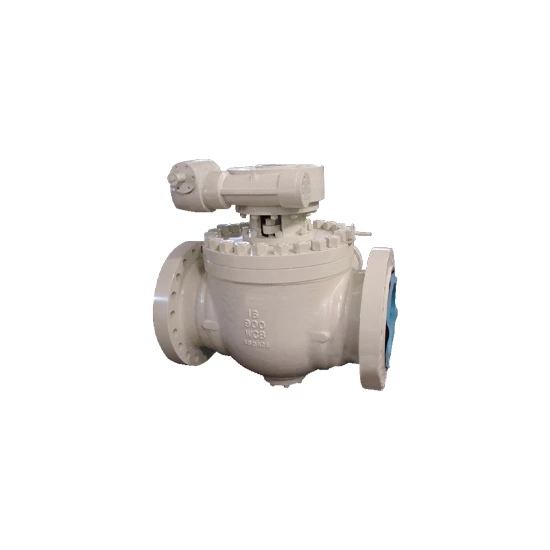

Full Bore Top Entry Ball Valve, API 6D, WCB, 20 Inch, 600 LB

Key Specifications / Features

The Full Bore Top Entry Ball Valve features a trunnion-mounted design and is manufactured in accordance with API 6D standards. It has a carbon steel ASTM A216 WCB body, ensuring strength and reliability. With a size of 20 inches (DN500), a Class 600 LB pressure rating, and a PN100 pressure class, it is suitable for high-pressure applications. The valve also includes RF (Raised Face) ends.

Top Entry Trunnion Ball Valves offer an ideal solution for both offshore and onshore systems. Designed for easy operation and maintenance, these valves simplify in-line disassembly for trim inspections or internal repairs, even in space-restricted environments. They provide excellent corrosion resistance and superior sealing performance at both high and low pressures. Constructed from a single forged or cast piece, the valves feature two independent seats for bi-directional sealing and are manufactured according to customer specifications and international standards.

Technical Specifications

» Size Range: NPS 2-60 Inch (DN50-DN1500)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Cast Carbon Steel, Stainless Steel, Duplex, or Other Specials (ASTM A216 WCB, WCC, A352 LCB, LCC, A351 CF8, CF8M, CF3, CF3M)
» End Connections: Flanged RF, RTJ, Welded BW
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Temperature Range: -46°C to 200°C
» Medium: Water, Gas, Oil, etc.

Design and Manufacturing Standards

» Design and Manufacture: API 6D, GB/T 19672, GB/T 12237
» Face-to-Face (End-to-End): ASME B16.10, GB/T 12221
» Flanged Connections: ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79
» Test and Inspection: API 598, API 6D, GB/T 13927
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A

Product Features

» One-piece Flange Top Entry Trunnion Design
» Double Block and Bleed (DBB/DIB-1/DIB-2) Design Variability
» One-piece Ball and Stem for Precise Positioning
» Anti-blowout Ball/Stem Design
» O-rings and Fire-safe Packing for Leak Prevention
» Corrosion-resistant, Low-friction Bearings
» Wave Springs for Upstream and Downstream Sealing
» Stainless Steel Sealant Injection Fittings for Emergency Stem or Seat Sealing
» In-line Repairable Due to Seat Retainer Design
» Minimized Torque for Operation
» Anti-static Grounding Between Ball, Stem, and Body
» Integral Top Works Direct Mounting Pad
» Optional Locking Device or Stem Extension
» Emergency Rescue and Valve Lubrication
» Low Torque Operation
