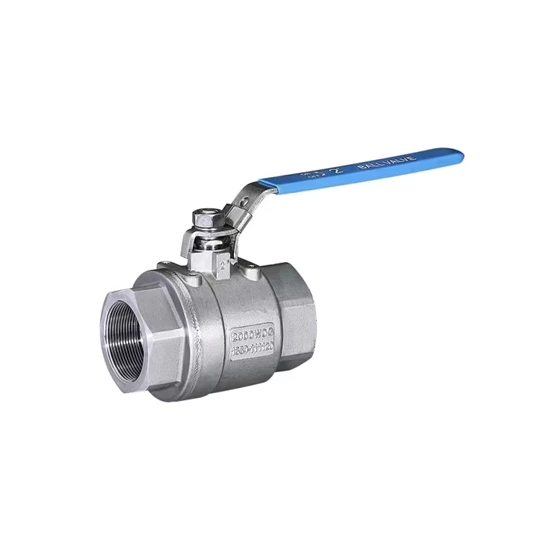

Investment Casting Ball Valve, SS 316, 2 Inch, 2000 PSI, NPT
- Product Name:
- Investment Casting Ball Valve
- Design Standard:
- ASME B16.34
- Body Material:
- Stainless Steel SS 316
- Size:
- 2 Inch, DN50
- Pressure:
- 2000 PSI
- End Connection:
- NPT Threaded
- Operation:
- Lever
- Temperature Range:
- -20°C to 150°C
- Medium:
- Water, Oil, Gas, etc
Key Specifications / Features
The Investment Casting Ball Valve is a high-performance valve designed for precision and durability. Manufactured with a Stainless Steel SS 316 body, it offers excellent corrosion resistance and strength. With a 2-inch (DN50) size and a maximum pressure rating of 2000 PSI, this valve is ideal for demanding industrial applications. The NPT threaded ends ensure secure and easy installation, while the lever operation provides quick and reliable control. Certified to ASME B16.34 standards, this valve is a top choice for applications requiring high-quality fluid control.
The 2000 PSI high-pressure ball valve is designed to handle high-pressure applications with exceptional durability. It is widely used in industries such as petrochemicals, gas and oil, and hydraulics due to its robust design, reliable sealing, and ease of operation. The valve body is cast using the silica gel process, resulting in a structurally sound and aesthetically pleasing design. The seat features an elastic sealing structure, ensuring reliable sealing and smooth operation. The valve rod is designed with a bottom-mounted structure and an inverted seal, preventing it from being forced out even under abnormal pressure conditions.
Structural Features
» Port: Full Port
» Size: 1/4 Inch to 4 Inches
» Pressure Rating: 2000 PSI
» Body Material: Stainless Steel A351CF8M
» Seat Material: RPTFE/MPTFE
» End Connections: ASME B1.20.1 (NPT); DIN 259/DIN 2999/ISO 228/BSP/PT
» Body Construction: 2-Piece Investment Casting Body
» Body Sealing: Seal-Weld Body
» Packing Gland: Adjustable Packing Gland
» Stem: Blow-out-Proof Stem
» Handle: Lockable Lever Handle
» Steam Service: 150 PSI Saturated Steam; 250 PSI Steam Service (Multi-Seal Seat)
» Handle Design: Spring Return Oval Handle
» Testing Standards: API 598, ASME B16.34, NACE MR-0175

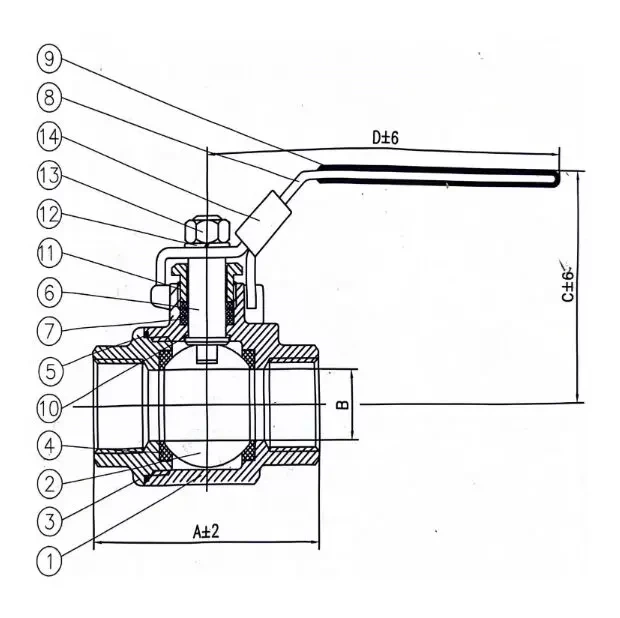

Structural Diagram
Materials of Main Parts
| Item | PART | MATERIAL |
| 1 | BODY | A351-CF8M(SS) |
| 2 | BALL | SS316 |
| 3 | END CAP | A351-CF8M(SS) |
| 4 | SEAT | RPTFE |
| 5 | BODY SEAL | RPTFE |
| 6 | STEM | SS316 |
| 7 | SETM SEAL | PTFE |
| 8 | HANDLE | SS201 |
| 9 | HANDLE COVER | PVC |
| 10 | THRUST WASHER | RPTFE |
| 11 | GLAND NUT | SS304 |
| 12 | HANDLE WASHER | SS304 |
| 13 | HANDLE NUT | A2-70(SS) |
| 14 | LOCKING PAD | SS201 |
Main Dimensions (mm)
| Size | Port | Pressure | A | B | C | D | Kgs |
| 1/4 Inch | FP | 2000 PSI | 53 | 8 | 52 | 90 | 0.25 |
| 3/8 Inch | FP | 2000 PSI | 53 | 10 | 52 | 90 | 0.25 |
| 1/2 Inch | FP | 2000 PSI | 57 | 15 | 58 | 100 | 0.29 |
| 3/4 Inch | FP | 2000 PSI | 66 | 20 | 61 | 110 | 0.45 |
| 1 Inch | FP | 2000 PSI | 80 | 25 | 70 | 120 | 0.74 |
| 1-1/4 Inch | FP | 2000 PSI | 94 | 32 | 75 | 160 | 1.20 |
| 1-1/2 Inch | FP | 2000 PSI | 101.5 | 38 | 90 | 160 | 1.46 |
| 2 Inch | FP | 2000 PSI | 116 | 50 | 106 | 175 | 2.10 |
| 2-1/2 Inch | FP | 2000 PSI | 156 | 65 | 133 | 220 | 4.60 |
| 3 Inch | FP | 2000 PSI | 178 | 80 | 140 | 235 | 6.55 |
| 4 Inch | FP | 2000 PSI | 226 | 100 | 160 | 358 | 12.50 |
