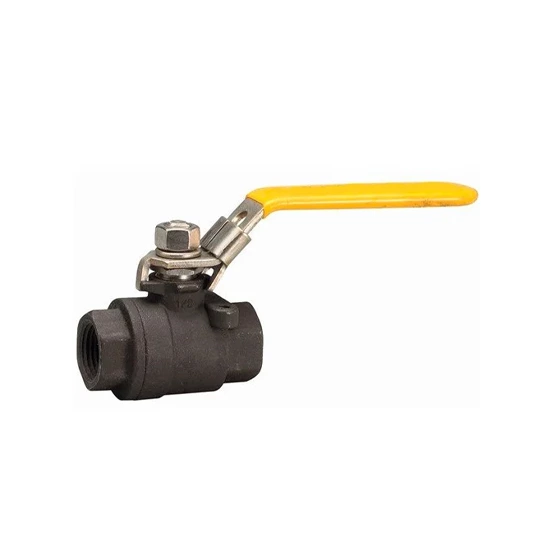

2 Piece Ball Valve, A216 WCB, 1-1/2 IN, 3000 PSI, Seal-Weld
- Product Name:
- 2PC Ball Valve, Seal-Welded, FP
- Design Standard:
- ASME B16.34
- Body Material:
- ASTM A216 WCB
- Size:
- 1-1/2 Inch, DN40
- Pressure:
- 3000 PSI
- End Connection:
- NPT Threaded
- Operation:
- Lever
- Temperature Range:
- -20°C to 150°C
- Medium:
- Water, Oil, Gas, etc
Key Specifications / Features
The 2 Piece Full Port Ball Valve is a high-quality, durable valve designed for demanding industrial applications. It features an ASTM A216 WCB body, ensuring robustness and reliability. With a 1-1/2 inch (DN40) size and a maximum pressure rating of 3000 PSI, this valve is suitable for high-pressure systems. The full port design allows for minimal pressure drop and maximum flow capacity. The valve is seal-welded for enhanced leak-tightness and features NPT threaded ends for easy installation. Lever-operated, it provides quick and convenient control.
The 3000 PSI high-pressure ball valve is engineered to manage high-pressure applications with remarkable durability. It is commonly utilized in industries such as petrochemicals, gas and oil, and hydraulics due to its robust design, reliable sealing, and user-friendly operation. The valve body is cast using the silica gel process, ensuring a rational structure and an aesthetically pleasing form. The seat of the 3000 PSI internal thread ball valve features an elastic sealing structure, which guarantees reliable sealing and smooth operation. The valve rod is designed with a bottom-mounted structure and an inverted seal, preventing it from being forced out even under abnormal pressure conditions in the valve chamber.
Structural Features
Configuration: 2-Piece Threaded, Full Port 1/4 to 2 Inches
Construction: Seal Weld
Body Material: ASTM A216 WCB
Pressure Rating: 3000 CWP
Corrosion Resistance: NACE MR-01-75 compliant
Testing Standard: API 598
Handle: Locking Device Handle
End Connections: NPT Threaded Ends (comply with ANSI B1.20.1)
Stem: Blowout Proof Stem
Safety Feature: Anti-static Device
Mounting Option: Mounting Pad

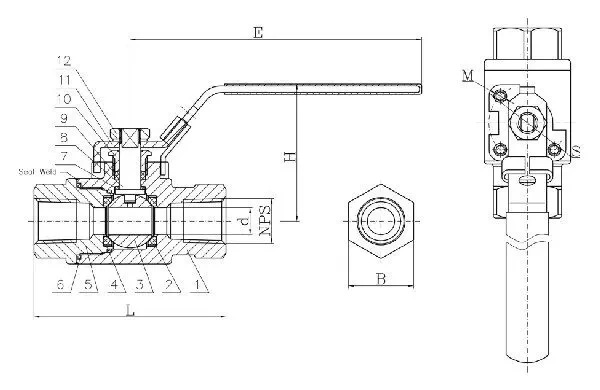

Structural Diagram
Materials of Main Parts
| No | Part | Material |
| 1 | BODY | ASTM A216 WCB |
| 2 | SEAT | DELRIN, PEEK |
| 3 | BALL | SS 316 |
| 4 | WASHER | SS 316 |
| 5 | BONNET | ASTM A216 WCB |
| 6 | GASKET | SS 304 |
| 7 | WASHER | GRAPHITE |
| 8 | STEM | SS316 |
| 9 | PACKING | RPTFE |
| 10 | GLAND | SS 304 |
| 11 | HANDLE | SS 201+PVC |
| 12 | NUT | A2-70 |
Main Dimensions (mm)
| Size | Port | Pressure | d | L | H | S | M | E |
| 1/4 Inch | FP | 3000 PSI | 10 | 76 | 62 | 36 | M5 | 145 |
| 3/8 Inch | FP | 3000 PSI | 12.7 | 76 | 62 | 36 | M5 | 145 |
| 1/2 Inch | FP | 3000 PSI | 12.7 | 90 | 62 | 36 | M5 | 145 |
| 3/4 Inch | FP | 3000 PSI | 19 | 100 | 73 | 42 | M5 | 180 |
| 1 Inch | FP | 3000 PSI | 25 | 118 | 80 | 50 | M6 | 190 |
| 1-1/2 Inch | FP | 3000 PSI | 38 | 135 | 115 | 70 | M8 | 250 |
| 2 Inch | RP | 3000 PSI | 38 | 140 | 115 | 70 | M8 | 250 |
