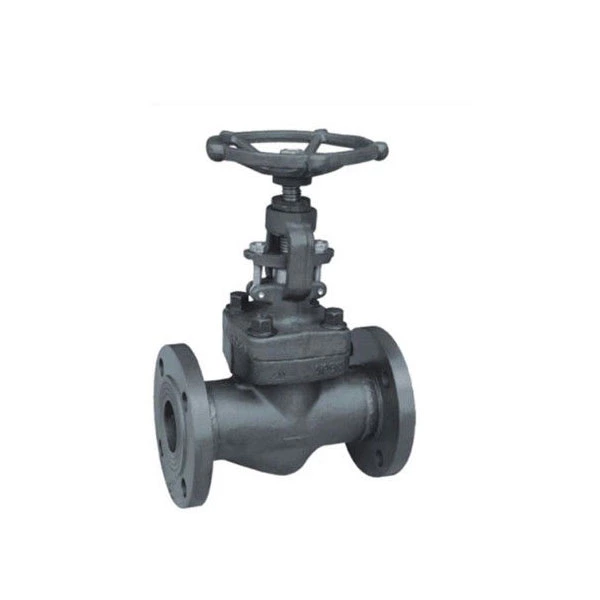

Professional Straight Globe Valve , Forged Steel Globe Valve With Manual Actuator
- Certification:
- API ISO Ts CE
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Wooden Case
- Delivery Time:
- 7-30 work days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
| Media: | Oil | Temperature: | Ordinary Temperature |
|---|---|---|---|
| Actuator: | Manual | Material: | Stainless Steel |
| Structure: | Through Way Globe Valve | Sealing Form: | Gland Packings Globe Valve |
| Stem Thread Position: | Outside Screw Stem Globe Valve | Application: | Lining Fluorine Valve, Cryogenic Globe Valve, Heat Preservation Globe Valve, Forged Steel Globe Valve |
| Standard: | DIN, ANSI | Body: | A105 / Lf2 / F5 / F9 / F11 / F22 / F316 / F304 / F |
| Trim: | F6a / F316 / F304 / F316L / F321 / F51 / F55 | Ends: | Flange Ends, Socket Weld End, Screwed End, Butt-We |
| High Light: | forged steel globe valve , straight way valve | ||
Forged Steel Straight Way Globe Valve
JIEYU Forged Steel Globe Valves are compact, sturdy and ideal for high pressure and high temperature applications. These valves are outside screw and yoke type (OS & Y) with rising stem and rising handwheel. These valves shall be bolted bonnet or welded bonnet type with full or standard bore options.
Design Features:
- Outside Screw and Yoke(OS&Y)
- Two Piece self aligning packing gland
- Bolted bonnet with spiral-wound gasket or Weld bonnet
- Integral backseat
Optional Features:
- Forged Carbon, Stainless or Alloy Steel Materials
- Full Port option available for classes 150 - 2500
- Extended Stem or Below Seal
- Flanged, Threaded or Socket Weld Ends
- Available in all trim configurations
- Welded Bonnet or Pressure Seal Bonnet
- Locking Device upon request
- Manufacturing to NACE MR0175 upon request
Material Selection for Globe Valves:
- Carbon Steel (A105)
- Low Temperture Carbon Steel (LF2)
- Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
- Low Alloys (F1, F11, F22)
- High Alloys (F5, F9,F91, F62, F20 )
- Duplex & Super Duplex (2205, 2507, S32760)
- Bronze (C95800, C95500, C95400)
- Inconel (Inconel 625, Inconel 825)
Remarks: The above materials are applicable to valve body. Contact JIEYU for the valve component material.
