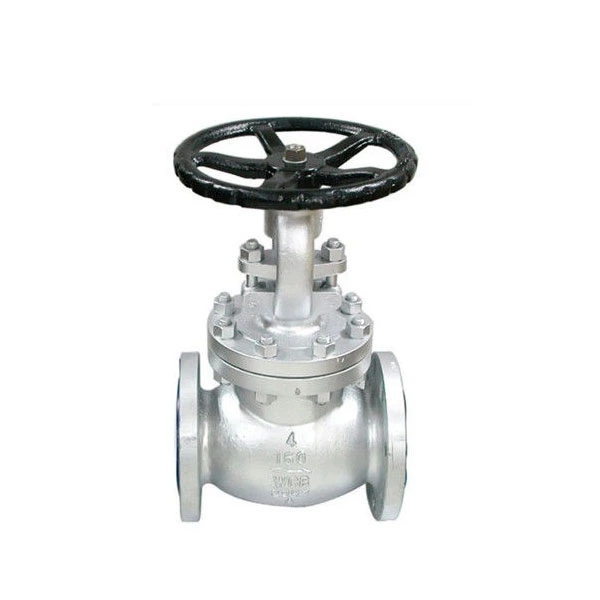

JIS 10K 20K 40K RF Straight Pattern Globe Valves Stainless Steel Material
- Application:
- Cryogenic Globe Valve, Heat Preservation Globe Valve, Forged Steel Globe Valve
- Materials:
- Stainless Steel
- High Light:
- forged steel globe valve , straight way valve
- Structure:
- Through Way Globe Valve
- Standard:
- DIN, ANSI, JIS
- Media:
- Oil
- Temperature:
- Ordinary Temperature
- Sealing Form:
- Gland Packings Globe Valve
- Actuator:
- Manual
- Stem Thread Position:
- Outside Screw Stem Globe Valve
- Body / Disc / Stem / Seat:
- 4A(2205), 5A(2507), C5, C12A, Wc6, Wc9,Inconel 625
Stainless Steel JIS 10K 20K 40K RF Straight Pattern Globe Valves
JIEYU VALVE manufactures superior cast body, bolted bonnet globe valves in a variety of materials, trims, packing types, sizes (2" thru 18") and pressure classes (150 thru 2500). The mechanical characteristics (moveable disc and stationary seat ring) make the JIEYU globe valve ideal for repeatable pipeline unidirectional throttling applications and frequent operation.
The valve design conforms to API 598 and B16.34. Face-to-face and end-to-end dimensions conform to ANSI B16.5 and B16.25.
Key Features:
- Swivel Plug Disc Design Standard
- Bolted Bonnet Construction
- Outside Screw and Yoke, Rising stem
- Handwheel Operated (Actuation Available)
- Renewable Threaded-in Backseat Bushing
- Renewable Threaded-in or Welded-in Seat Ring
Material Selection for Globe Valves:
- Carbon Steel (A105-WCB, WCC)
- Low Temperture Carbon Steel (LF2-LCC, LCB)
- Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
- Low Alloys (F1-WC1, F11-WC6, F22-WC9)
- High Alloys (F5-C5, F9-C12,F91-C12A, F62-CN3MN, F20-Alloy 20 )
- Duplex & Super Duplex (2205-4A, 2507-5A, S32760-6A)
- Bronze (C95800, C95500, C95400)
- Inconel (Inconel 625, Inconel 825)
Remarks: The above materials are applicable to valve body. Contact JIEYU for the valve component material.
