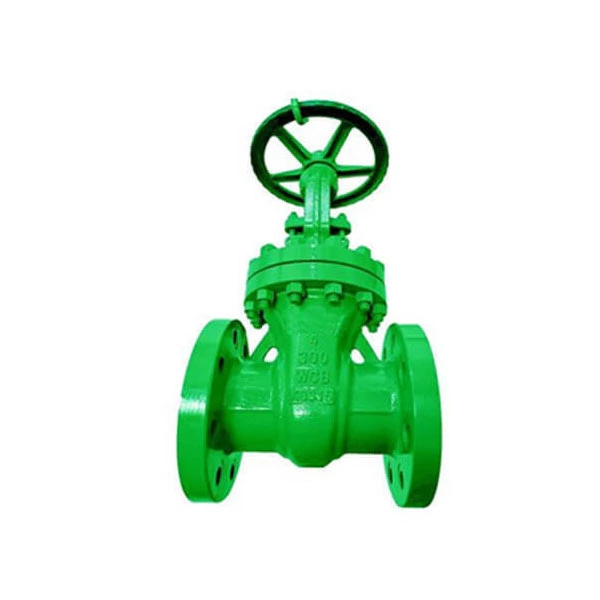

Rising Stem Flanged Bolted Bonnet Gate Valve API 6D 600 With Cast Steel A216 Wcb Body

Certification:

API ISO Ts CE

Minimum Order Quantity:

1PC

Prices:

Negotiable

Packaging Details:

Plywood Case

Delivery Time:

7-30 work days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

10000PCS/Mouth

Contact Now

Detailed Product Description

Usage:	Regulation, Flow Control	Application:	Industrial Usage
Actuator:	Manual	Standard:	DIN
Body:	CS, SS304, SS316	Seal Surface:	Wedge Gate Valve
High Light:	industrial gate valve , full bore gate valve

API 6D 600 Cast Steel A216 Wcb Body Bolted Bonnet Rising Stem Flange

roduct Range
-Valve size:
2" ~ 48" (DN50-DN1200)
-Pressure:
ANSI Class 150~2500(PN16-PN420)
-Temperature:
-196ºC~ 500ºC
-Body Materials:
Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
-Trim (Disc/Stem):
Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel

Technical Specifications
-Design: ASME 16.34/ API 6D/ API 600/ BS 1414
-Face to Face: ASME B16.10
-End Flange: ASME B16.5, ASME B16.47
-BW End: ASME B16.25
-Test: API 598/ API 6D/ BS 6755
-Special: NACE MR-01-75

Design Features
-OS & Y, Rising stem
- Bolted Bonnet with spiral-would gasket
-Flexible Wedge
-Backseat Weld-Deposited
-Threaded or welded seat ring
-Renewable seat rings
-Extended Bonnet for Cryogenic Service
-Flanged or butt welded ends.
-By Pass on Request
-Locking Device Optional

Size and Dimensions:

Class	Dimensions(mm)
	NPS(inch)	2	2002/1/2	3	4	5	6	8	10	12	14	16	18	20	24	28	32	40	48
	DN(mm)	50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800	1000	1200
150LB	L	178	190	203	229	254	267	292	330	356	381	406	432	457	508	610	711	813	1067
	H	360	490	503	588	740	767	970	1158	1393	1543	1738	1955	2210	2698	2590	2870	3302	3962
	W	200	250	250	250	300	300	350	400	450	500	600	650	650	700	800	800	1000	1000
300LB	L	216	241	283	305	381	403	419	457	502	762	838	914	991	1143	1346	1524	1955	2286
	H	384	470	528	615	760	800	1005	1212	1455	1585	2035	2195	1680	2200	2641	2857	3713	4501
	W	200	250	250	250	350	350	400	450	500	600	650	650	850	850	850	850	750	750
600LB	L	292	330	356	432	508	559	660	787	838	889	991	1092	1194	1397	1549	1778	2149	2667
	H	495	550	615	735	826	970	1122	1330	1519	1716	2110	1727	2019	2383	2663	3100	3600	4600
	W	250	250	300	350	400	450	500	600	750	850	850	850	850	600	600	750	750	750
900LB	L	368	419	381	457	562	610	727	838	965	1029	1130	1219	1321	1549	-	-	-	-
	H	590	700	740	870	950	1078	1318	1580	1860	2004	2178	2362	2463	3048	-	-	-	-
	W	250	300	300	350	450	560	640	800	800	900	1000	750	750	900	-	-	-	-
1500LB	L	368	419	470	546	673	705	832	991	1130	1257	1384	1537	1664	1943	-	-	-	-
	H	590	700	780	880	1120	1222	1572	1830	2076	2057	2311	2438	2590	2946	-	-	-	-
	W	250	350	400	500	600	720	900	900	1000	750	750	850	850	850	-	-	-	-
2500LB	L	451	508	578	673	794	914	1022	1270	1422	-	-	-	-	-	-	-	-	-
	H	580	630	765	850	960	1100	1150	1460	1660	-	-	-	-	-	-	-	-	-
	W	300	300	300	300	500	500	500	600	600	-	-	-	-	-	-	-	-	-
