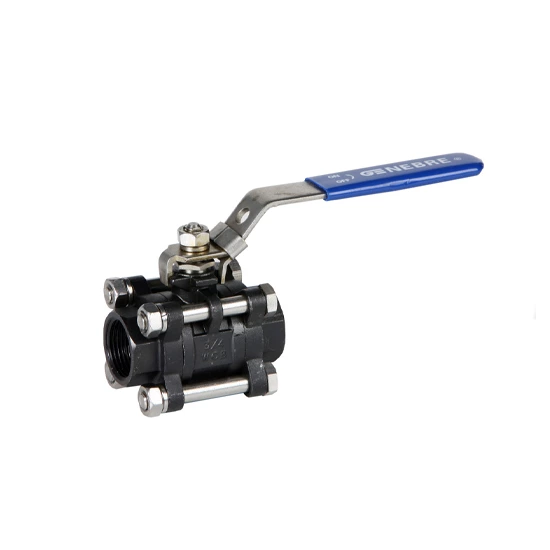

3 Piece Threaded Ball Valve, A216 WCB, 1 Inch, 1000 PSI, NPT
- Product Name:
- 3 Piece Threaded Ball Valve, Carbon Steel
- Body Material:
- ASTM A216 WCB
- Size:
- 1 Inch, DN25
- Pressure:
- 1000 PSI
- End Connection:
- NPT Threaded
- Operation:
- Lever
- Temperature Range:
- -20°C to 150°C
- Medium:
- Water, Oil, Gas, etc
Key Specifications / Features
The 3 Piece Threaded Ball Valve Factory specializes in producing high-quality ball valves with ASTM A216 WCB carbon steel bodies, designed for durability and strength. These 1-inch (DN25) ball valves are rated for pressures up to 1000 PSI, making them suitable for demanding industrial applications. The valves feature NPT threaded ends for easy installation and compatibility with standard piping systems. Lever-operated for convenient manual control, these valves offer reliable performance and ease of use.
Three Piece Bolted Body Ball Valves are available in both forged and investment castings, with straight-through two-port or multi-port structures. These valves are designed and manufactured to the latest international standards, including API 6D, ASME B16.34, and BS 5351, or their equivalents. Standard features include fire-safe, anti-static, and blow-out prevention capabilities. The stainless steel construction makes these ball valves suitable for a variety of industries, particularly for applications involving water, oil, and gas.
Structural Features
Product: 3 Piece Thread Ball Valve
Size: 1/4-4 Inch (DN6-DN100)
Material: ASTM A216 WCB
Pressure: 1000 PSI, PN16
Suitable Medium: Water, oil, air, and some corrosive liquids (WOG)
Temperature Range: -20°C to 150°C
Connection: Female threaded (F/F)
Type of Thread: NPT, BSPT, BSP, PT, DIN2999, etc.
Sealing: PTFE, RPTFE, PPL, etc.
Materials of Main Parts
| No | Part | Material |
| 1 | Body | ASTM A216 WCB |
| 2 | Seat | PTFE, RPTFE, PPL |
| 3 | Cap | ASTM A216 WCB |
| 4 | Ball | SS 304,SS 316 |
| 5 | Stem | SS 304,SS 316 |
| 6 | Nut | SS 304 |
| 7 | Gasket | SS 304 |
| 8 | Holster | PVC |
| 9 | Handle | SS 201 |
| 10 | Stem Nut | SS 304 |
| 11 | Nut | SS 304 |
| 12 | Packing | SS 304 |
| 13 | Thrust Washer | SS 304 |
| 14 | Bolt | SS 304 |
Dimensions(mm)
| Size | Port | Pressure | d | L | H | W |
| 1/4 Inch | FP | 1000 PSI | 11.6 | 68 | 100 | 100 |
| 3/8 Inch | FP | 1000 PSI | 12.7 | 68 | 100 | 100 |
| 1/2 Inch | FP | 1000 PSI | 15 | 72 | 130 | 130 |
| 3/4 Inch | FP | 1000 PSI | 20 | 82 | 130 | 130 |
| 1 Inch | FP | 1000 PSI | 25 | 90 | 165 | 165 |
| 1-1/4 Inch | FP | 1000 PSI | 32 | 112 | 165 | 165 |
| 1-1/2 Inch | FP | 1000 PSI | 38 | 120 | 190 | 190 |
| 2 Inch | FP | 1000 PSI | 50 | 145 | 190 | 190 |
| 2-1/2 Inch | FP | 1000 PSI | 65 | 185 | 250 | 250 |
| 3 Inch | FP | 1000 PSI | 80 | 210 | 250 | 250 |
| 4 Inch | FP | 1000 PSI | 100 | 250 | 280 | 280 |
