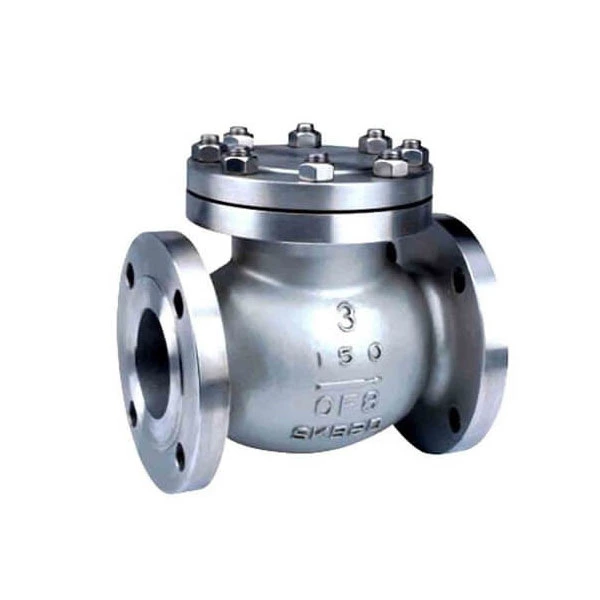

Flange End Cast Steel Swing Type Check Valve 150LB Pressure BS1868 Design
- Size:
- 2"-24"
- Pressure:
- 150LB
- Medium:
- W.O.G
- Materials:
- WCB
- High Light:
- stainless steel swing check valve , swing type non return valve
- Structure:
- Swing Type Check Valve
- Flange Connection:
- ANSI B16.5
Flange End Cast Steel Swing Check Valve 150LB Pressure BS1868 Design
| CAST STEEL SWING CHECK VALVE | |||
| Pressure rating and size: | CL150-CL2500 | ||
| DN50 to DN1200 | |||
| 2"~48" | |||
| Material: | Body&Cover :WCB, WC6, WC9, LCB, CF8, CF8M, CF3M | ||
| Disc : WCB+STL,LCB,CF8,CF8M,WC6,WC9,CF3M | |||
| Seat: A105+STL, F304, F316. | |||
| Arm : WCB, WC6, WC9, LCB, CF8, CF8M, CF3M | |||
| Operated type: | N/A | ||
| Structure: | Swing type check valve | ||
| Design: | BS1868 | ||
| Test: | API 598 | ||
| Flange connection: | ANSI B16.5 | ||
| Butt-weld ends: | ASME B16.25 | ||
| Medium: | W.O.G | ||
| Temperature: | -196 to 593°C | ||
Construction of Check Valve
Check valves are "automatic" valves that open with forward flow and close with reverse flow. The pressure of the fluid passing through a system opens the valve, while any reversal of flow will close the valve. Exact operation will vary depending on the type of Check valve mechanism. Most common types of Check valves are swing, lift (piston and ball), butterfly, stop and tilting-disk.
