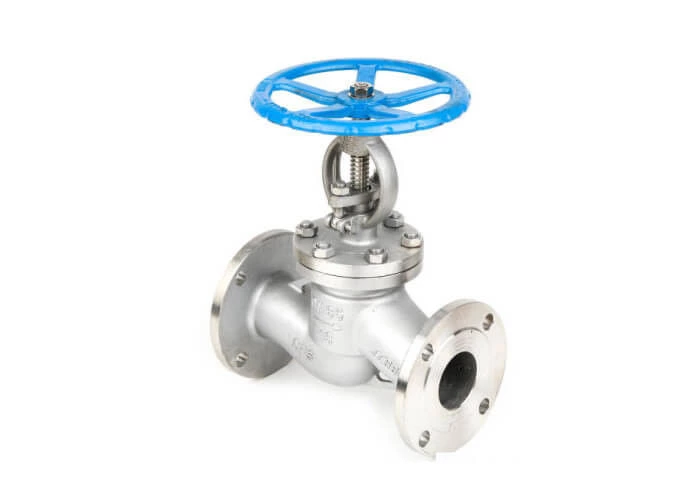

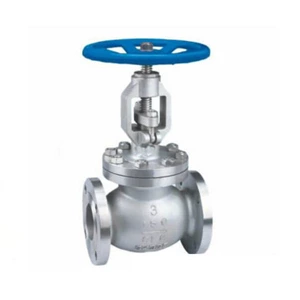

Medium Pressure Stainless Steel Globe Valve ANSI Standard For Water System
- Pressure:
- Medium Pressure
- Application:
- Lining Fluorine Valve, Cryogenic Globe Valve, Heat Preservation Globe Valve, Forged Steel Globe Valve, Oxygen Globe Valve, Bellows Globe Valve
- Materials:
- Casting, Stainless Steel, Carbon Steel
- High Light:
- threaded globe valve , stainless steel flanged globe valve
- Standard:
- ANSI
- Connection:
- Flange
- Stem Thread Position:
- Outside Screw Stem Globe Valve

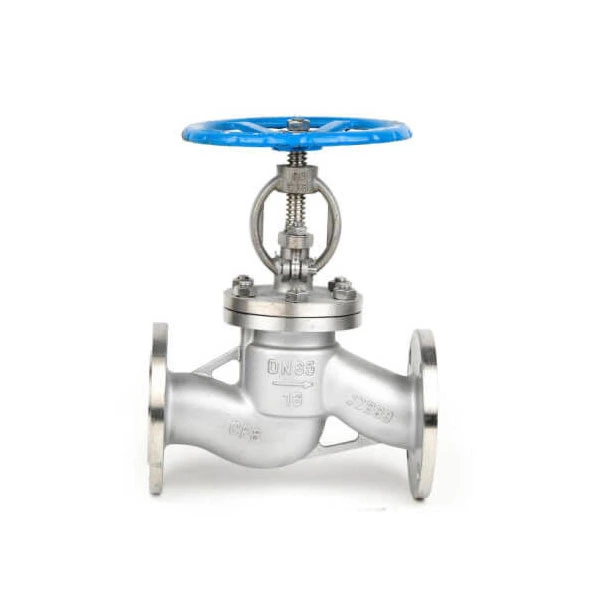

Stainless Steel Hand Wheel Flange Globe Valve
Specification:
Size: DN15-DN300
Model:J41H/J41W
Pressure: PN16-PN40
Material: 1.4308(CF8), 1.4408(CF8M)Etc
Type: Rising Stem Flange end RF/FTJ/FM
Operation: Handwheel, Gear Worm ,Electric operated
Product Features
1. Simple structure, convenient manufacturing and maintenance
2, the work schedule is small, the opening and closing time is short
3, good sealing, small friction between sealing surfaces, long life

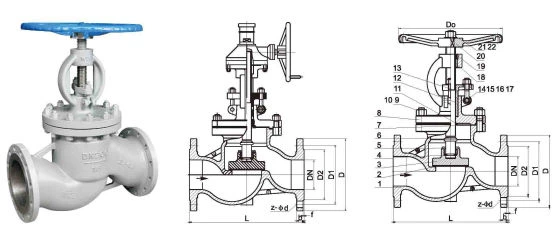

| NO. | Part Name | Material | |
| 01 | Body | ASTM A216WCB | GS-C25,CF8,CF8M |
| 02 | Seat Ring | ASTM A216+13Cr | |
| 03 | Disc | ASTM A105+13Cr | A105,SS304,SS316 |
| 04 | Split Ring | C.S | |
| 05 | Disc Cover | C.S | 25#,SS304,SS316 |
| 06 | Stem | ASTM A182 F6a | 13Cr,SS304,SS316 |
| 07 | Gasket | 304+Graphite | 304+Graphite |
| 08 | Bonnet | ASTM A216WCB | A105,SS304,SS316 |
| 09 | Stud | ASTM A193 B7 | |
| 10 | Nut | ASTM A194 2H | |
| 11 | Backseat | ASTM A216+13Cr | |
| 12 | Packing | Graphite | Graphite |
| 13 | Bushing | ASTM A216 F6a | |
| 14 | Gland | ASTM A216WCB | Cu Alloy |
| 15 | Pin | C.S | 13Cr,SS304,SS316 |
| 16 | Gland Bolt | ASTM A193 B7 | |
| 17 | Gland Nut | ASTM A194 2H | |
| 18 | Stem Nut | ZcuAl10Fe3 | |
| 19 | Screw | C.S | |
| 20 | Handwheel | ASTM A395 | C.S |
| 21 | H.W. Lock Nut | C.S | 25# |
