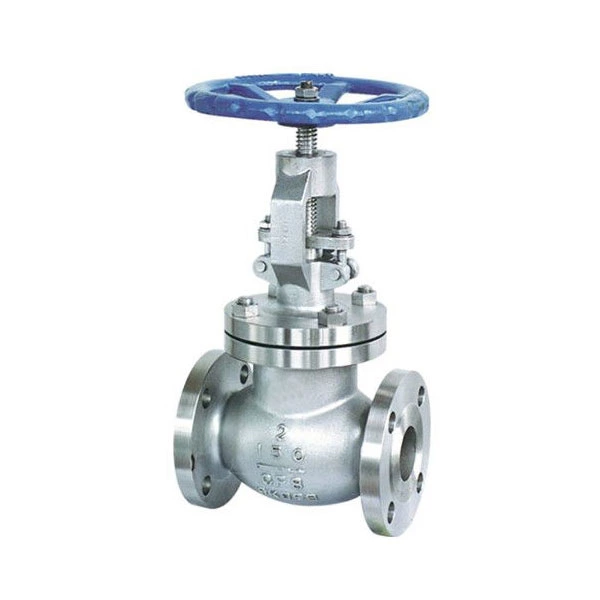

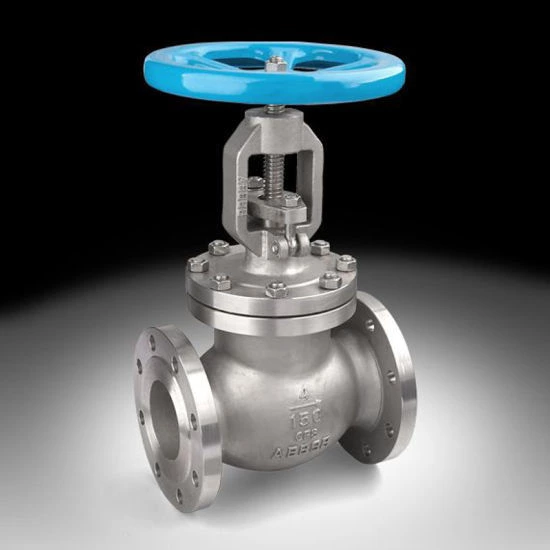

Class150-2500 ASME Stainless Steel Globe Valve , High Temperature Globe Valve
- Certification:
- API ISO Ts CE
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Plywood Case
- Delivery Time:
- 7-30 work days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10000PCS/Mouth
Detailed Product Description
| Color: | Customized | Pressure: | Medium Pressure |
|---|---|---|---|
| Application: | Stainless Steel Flanged Globe Valve | Standard: | ASME |
| Connection: | Flange | Stem Thread Position: | Outside Screw Stem Globe Valve |
| High Light: | ss globe valve , threaded globe valve | ||
Class150-2500 ASME Stainless Steel Flanged Globe Valve
Product Range
| Type | Globe |
| Rating | 150~2500LB (PN16~PN420) |
| Body Materials | Stainless Steel |
| Trim | Per API600 |
| Size | NPS2-20; DN50-500 |
Design Feature
| Optional threaded or welded seat Optional plug disc (Globe) Optional full jacket or semi-jacket design Optional stem extension |
| NO. | Part Name | Material | |
| 01 | Body | ASTM A216WCB | GS-C25,CF8,CF8M |
| 02 | Seat Ring | ASTM A216+13Cr | |
| 03 | Disc | ASTM A105+13Cr | A105,SS304,SS316 |
| 04 | Split Ring | C.S | |
| 05 | Disc Cover | C.S | 25#,SS304,SS316 |
| 06 | Stem | ASTM A182 F6a | 13Cr,SS304,SS316 |
| 07 | Gasket | 304+Graphite | 304+Graphite |
| 08 | Bonnet | ASTM A216WCB | A105,SS304,SS316 |
| 09 | Stud | ASTM A193 B7 | |
| 10 | Nut | ASTM A194 2H | |
| 11 | Backseat | ASTM A216+13Cr | |
| 12 | Packing | Graphite | Graphite |
| 13 | Bushing | ASTM A216 F6a | |
| 14 | Gland | ASTM A216WCB | Cu Alloy |
| 15 | Pin | C.S | 13Cr,SS304,SS316 |
| 16 | Gland Bolt | ASTM A193 B7 | |
| 17 | Gland Nut | ASTM A194 2H | |
| 18 | Stem Nut | ZcuAl10Fe3 | |
| 19 | Screw | C.S | |
| 20 | Handwheel | ASTM A395 | C.S |
| 21 | H.W. Lock Nut | C.S | 25# |
