Full Port Soft Seated Ball Valve , Trunnion Mounted Three Piece Ball Valve
- Certification:
- API ISO Ts CE
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Plywood Case
- Delivery Time:
- 7-30 work days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10000PCS/Mouth
Detailed Product Description
| Application: | Industrial Usage, Water Industrial Usage, Household Usage | Structure: | Floating Ball Valve |
|---|---|---|---|
| Function: | Blow-Down Valve | Standard: | BS5351 |
| Body: | 4A(2205), 5A(2507), C5, C12A, Wc6, Wc9,Inconel 625 | Seat: | 4A(2205), 5A(2507), C5, C12A, Wc6, Wc9,Inconel 625 |
| High Light: | high pressure ball valve , stainless steel ball valve | ||

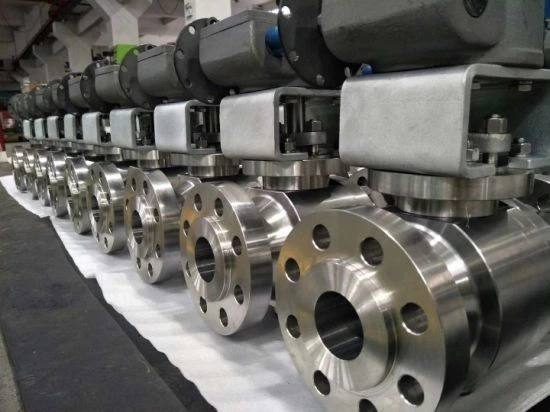

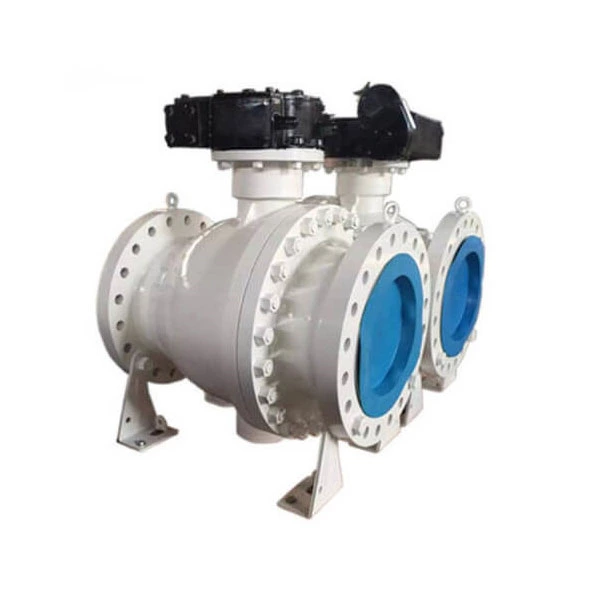

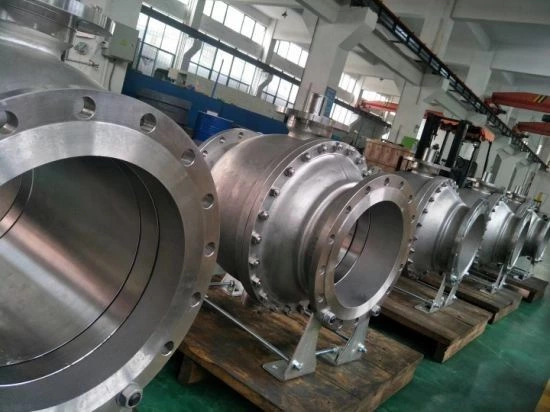

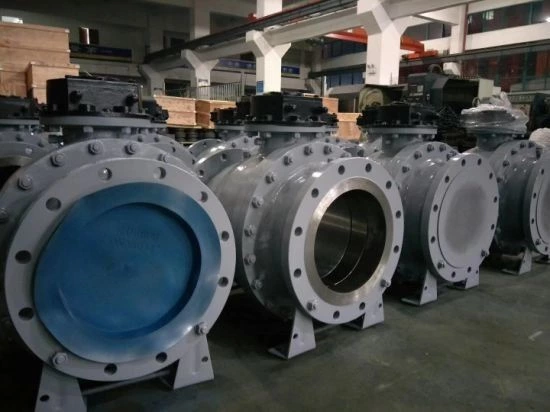

Soft Seated 3-Piece Industrial Trunnion Mounted Ball Valves
Design Features
- Full port, 1/2"~6" (DN15~DN150)
- W.P. : CLASS 150-300
- W.T. : -20°C~200°C (-4°F~392°F)
- Investment casting
- Blow-out proof stem
- Silicone Free
- Anti-static device (option)
- Locking device
- Mounting pad ISO 5211
- Flange dimension: ASME B16.5
- Face to face: ASME B16.10

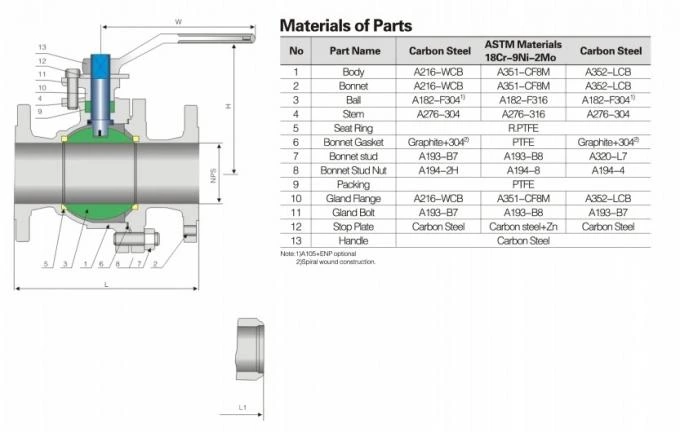

Material Selection for Ball Valves:
- Carbon Steel (A105-WCB, WCC)
- Low Temperture Carbon Steel (LF2-LCC, LCB)
- Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
- Low Alloys (F1-WC1, F11-WC6, F22-WC9)
- High Alloys (F5-C5, F9-C12,F91-C12A, F62-CN3MN, F20-Alloy 20 )
- Duplex & Super Duplex (2205-4A, 2507-5A, S32760-6A)
- Bronze (C95800, C95500, C95400)
- Inconel (Inconel 625, Inconel 825)
