DN15~DN150 Soft Seated Ball Valve With Casting And Forged Steel Body
- Certification:
- API ISO Ts CE
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Plywood Case
- Delivery Time:
- 7-30 work days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10000PCS/Mouth
Detailed Product Description
| Application: | Industrial Usage, Water Industrial Usage, Household Usage | Structure: | Floating Ball Valve |
|---|---|---|---|
| Function: | Blow-Down Valve | Standard: | BS5351 |
| Body: | A105, SS304, SS304L, SS316, SS316L, Ss347, 904L | Seat: | 4A(2205), 5A(2507), C5, C12A, Wc6, Wc9,Inconel 625 |
| High Light: | forged ball valve , high pressure ball valve | ||
API 6D Cast Steel Industrial Floating Ball Valve
Valve manufactures some of the most dependable cast and forged steel Ball Valves in the industry. Our products are manufactured and tested in accordance with respective API, ASME, and ANSI standards. With features such as double block and bleed capabilities, secondary sealant injections, and spring energized self relieving seats, the YIBO design offers many features and options beneficial for oil, gas, and liquid applications making it one of the most preferred ball valves on the market.
Design Features
- Full port, 1/2"~6" (DN15~DN150)
- W.P. : CLASS 150-300
- W.T. : -20°C~200°C (-4°F~392°F)
- Investment casting
- Blow-out proof ste
- Silicone Free
- Anti-static device (option)
- Locking device
- Mounting pad ISO 5211
- Flange dimension: ASME B16.5
- Face to face: ASME B16.10

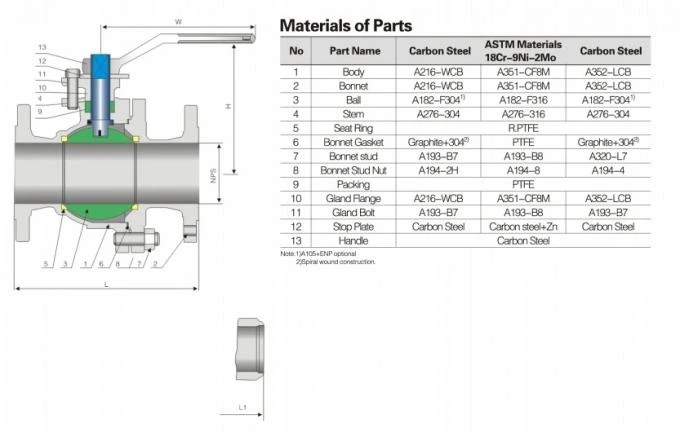

Material Selection for Ball Valves:
- Carbon Steel (A105-WCB, WCC)
- Low Temperture Carbon Steel (LF2-LCC, LCB)
- Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
- Low Alloys (F1-WC1, F11-WC6, F22-WC9)
- High Alloys (F5-C5, F9-C12,F91-C12A, F62-CN3MN, F20-Alloy 20 )
- Duplex & Super Duplex (2205-4A, 2507-5A, S32760-6A)
- Bronze (C95800, C95500, C95400)
- Inconel (Inconel 625, Inconel 825)
