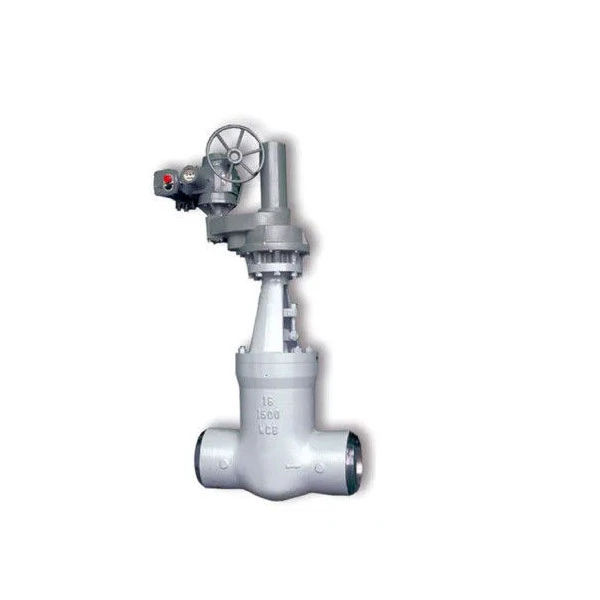

ISO Standard Industrial Rising Stem Gate Valve , Pressure Seal Bonnet Valve
- Application:
- Industrial Usage, Water Industrial Usage
- High Light:
- rising gate valve , gate valve rising stem
- Seal Surface:
- Wedge Gate Valve
- Actuator:
- Manual
- Usage:
- Regulation
- Transport Package:
- Wooden Case
- Thread Position Of Valve Rod:
- Outside Gate Valve
- Wedge:
- 4A(2205), 5A(2507), C5, C12A, Wc6, Wc9,Inconel 625
JIEYU VALVE manufactures superior cast body, bolted bonnet OS&Y gate valves in a variety of materials, trims, packing types, sizes (2" thru 48") and pressure classes (150 thru 2500). The mechanical characteristics make the YIBO wedge gate valve are ideal for bi-directional "total flow system open/shut-off" applications with minimal turbulance and pressure drop.
The valve design conforms to API 600 and B16.34. Face-to-face and end-to-end dimensions conform to ANSI
B16.5 and B16.25.
Gate Valve Benefits
- Little friction and minimal drop in pressure when fully opened
- Eliminates leaks
- Rising stem configurations make visual inspections easy
- Nonrising stem configurations are ideal for areas underground or where space is limited
- Increase efficiency by saving energy when opening or closing a gate valve
Material Selection for Gate Valves
- Carbon Steel (A105-WCB, WCC)
- Low Temperture Carbon Steel (LF2-LCC, LCB)
- Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
- Low Alloys (F1-WC1, F11-WC6, F22-WC9)
- High Alloys (F5-C5, F9-C12,F91-C12A, F62-CN3MN, F20-Alloy 20 )
- Duplex & Super Duplex (2205-4A, 2507-5A, S32760-6A)
- Bronze (C95800, C95500, C95400)
- Inconel (Inconel 625, Inconel 825)
Remarks: The above materials are applicable to valve body.
