API 602 Lift Type Check Valve , Forged Steel Check Valve High Rigid
- Certification:
- API ISO Ts CE
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Wooden Case
- Delivery Time:
- 7-30 work days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10000PCS/Mouth
Detailed Product Description
| Media: | Oil | Temperature: | Ordinary Temperature |
|---|---|---|---|
| Material: | Stainless Steel | Connection Form: | Thread |
| Structure: | Swing | Pressure: | High Pressure |
| Sealing Form: | Normal | Flow Direction: | Bidirectional |
| Standard: | ANSI | Application: | Industrial Usage, Water Industrial Usage, Household Usage |
| Function: | Ddcv Double Lobe, Nrvr Silence, Sfcv Rubber Lobe, Nrvz Silence, Nrvg Silence | Body: | A105 / Lf2 / F5 / F9 / F11 / F22 / F316 / F304 / F |
| Trim: | F6a / F316 / F304 / F316L / F321 / F51 / F55 | Ends: | Flange Ends, Socket Weld End, Screwed End, Butt-We |
| High Light: | horizontal lift check valve , stainless steel non return valve | ||

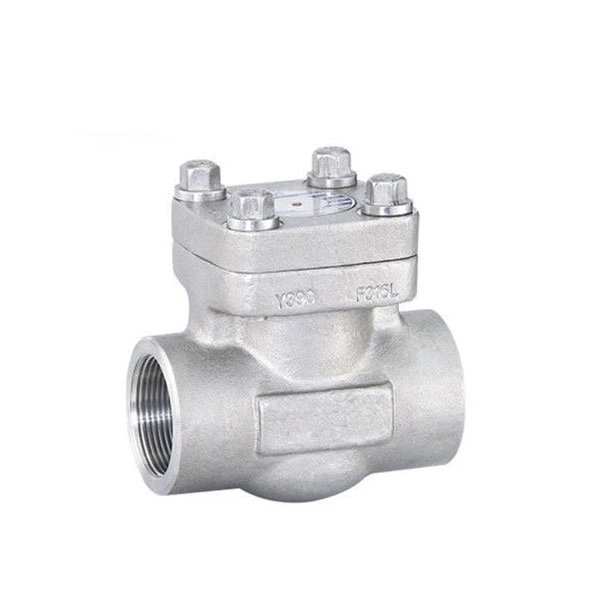

API 602 Forged Lift Check Valve
JIEYU Forged Steel Check Valves are compact, sturdy and ideal for high pressure and high temperature applications. These valves are lift type, spring loaded check valve and available in with two type configurations, i.e., Plug type and Ball type. These valves shall be bolted bonnet or welded bonnet type with full or standard bore options. These valves are non-return valves, which allows flow in one direction.
Design Features:
- Bolted bonnet with spiral-wound gasket
- Lift or Piston Check
- Ball check
- Swing check
Optional Features:
- Forged Carbon, Stainless or Alloy Steel Materials
- Full Port option available for classes 150 - 2500
- Extended Stem or Below Seal
- Welded Bonnet or Pressure Seal Bonnet
- Flanged, Threaded or Socket Weld Ends
- Available in all trim configurations
- Locking Device upon request
- Manufacturing to NACE MR0175 upon request

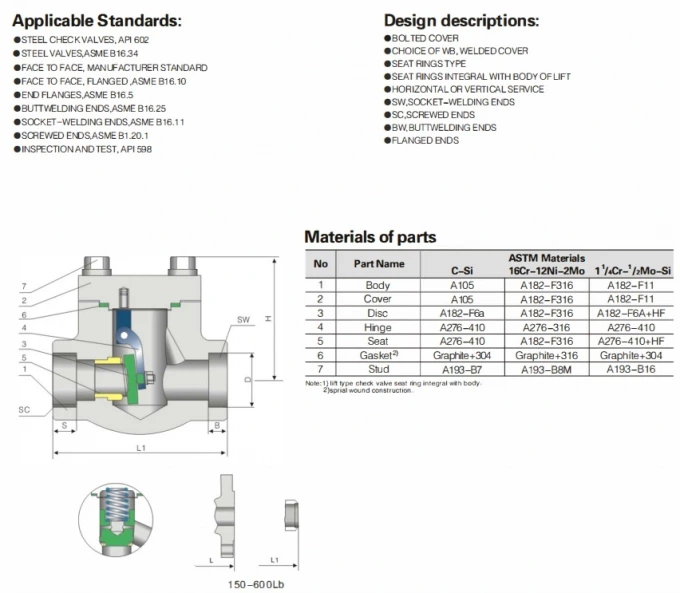

Material Selection for Check Valves:
- Carbon Steel (A105)
- Low Temperture Carbon Steel (LF2)
- Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
- Low Alloys (F1, F11, F22)
- High Alloys (F5, F9,F91, F62, F20 )
- Duplex & Super Duplex (2205, 2507, S32760)
- Bronze (C95800, C95500, C95400)
- Inconel (Inconel 625, Inconel 825)
Remarks: The above materials are applicable to valve body. Contact JIEYU for the valve component material.
