J41 J941 Cast Steel Globe Valve Russian Standard For Low Pressure

Name: J41 J941 Cast Steel Globe Valve Russian Standard For Low Pressure
Brand: JIEYU
SKU: JIEYU
Rating: 4.6 (134 reviews)

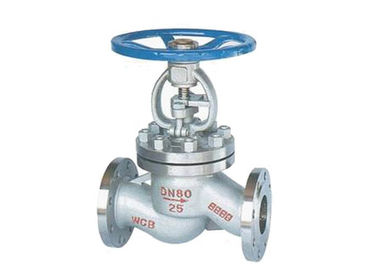

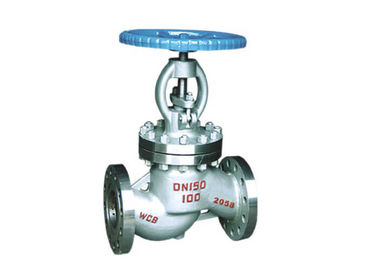

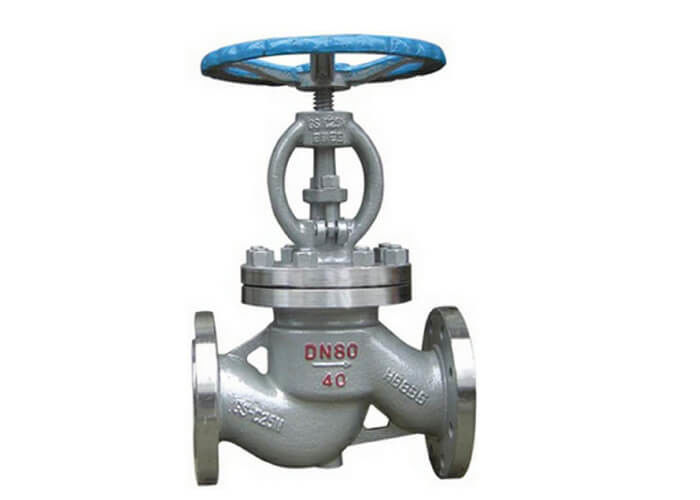

Large Image : J41 J941 Cast Steel Globe Valve Russian Standard For Low Pressure

Product Details:

Place of Origin:	Wenzhou China
Brand Name:	JIEYU
Certification:	API ISO Ts CE

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	7-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Mouth

Contact Now

Detailed Product Description

Media:	Gas	Structure:	Gate
Power:	Manual	Application:	Oil ,gas ,water
Material:	Cast Steel	Pressure:	Low Pressure
Highlight:	wcb globe valve , industrial globe valve

J41 J941russian standard cast steel globe valve and motorized globe valve price

Structural Features:
· Straigh pattern body design
· OS&Y, Outside screw and yoke
· BB, Bolted bonnet
· Yoke integral with bonnet
· Rising stem and handwheel
· Loose disc , choice of plug or ball
· Renewable seat ring
· Impact handwheel for 10 inch or above horizontal service
· Flanged or butt welding ends.

Technical Specification
Design and Manufacture: BS1873 or ASME B16.34
Inspection and Test: API 598
End flange dimension: ASME B16.5
BW end dimension: ASME B16.25
Socket-weld dimension: ASME B16.11
Face to face and end to end: ASME B16.10
Pressure-temperature rating: ASME B16.34
Main material :

Parts name	Materials
Parts name	WCB/Trim 1	WCB/Trim 5	WCB/Trim 8	CF8/304	CF8M/316
Body	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M
Seating ring	A105+13Cr	A105+STL	A105+STL	ASTM A351 CF8	ASTM A351 CF8M
Disc	ASTM A216 WCB+13C.r	ASTM A216 WCB+STL	ASTM A216 WCB+13Cr	ASTM A351 CF8	ASTM A351 CF8M
Stem	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F304	ASTM A182 F316
Disc nut	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M
Bonnet nut	ASTM A194 2H	ASTM A194 2H	ASTM A194 2H	ASTM A194 8	ASTM A194 8M
Bonnet bolt	ASTM A193 B7	ASTM A193 B7	ASTM A193 B7	ASTM A193 B8	ASTM A193 B8M
Gasket	304 sheet+ Graphite	304 sheet+ Graphite	304 sheet+ Graphite	304+ Graphite	316+ Graphite
Backseat bushing	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F6a	ASTM A351 CF8	ASTM A351 CF8M
Bonnet	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M
Packing	Graphite	Graphite	Graphite	Graphite	Graphite
Eyebolt pin	ASTM A36	ASTM A36	ASTM A36	304SS	316SS
Gland eyebolt	ASTM A193 B7	ASTM A193 B7	ASTM A193 B7	ASTM A193 B8	ASTM A193 B8M
Gland	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F304	ASTM A182 F316
Gland Flange	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M
Eyebolt nut	ASTM A194 2H	ASTM A194 2H	ASTM A194 2H	ASTM A194 8	ASTM A351 CF8M
Stem nut	ASTM A493 D2	ASTM A493 D2	ASTM A493 D2	ASTM A493 D2	ASTM A493 D2
Hand wheel	Ductile Iron	Ductile Iron	Ductile Iron	Ductile Iron	Ductile Iron
Hand wheel	Carbon steel	Carbon steel	Carbon steel	Carbon steel	Carbon steel

The main products of our company include:

(1) ANSI gate valve, DIN gate valve, GOST gate valve, Soft sealing gate valve, Knife gate vave, Flat gate valve

(2)Wafer type butterfly valve, flange type butterlfy valve, single eccentric butterfly valve, double eccentric butterfly valve, Three eccentric buterrfly valve

(3)Check valve, lift check valve, swing check valve, wafer type check valve, spring check valve

(4) ball valve, tee ball valve, 4 way ball valve, welding ball valve

(5)strainer, filter, Y type strianer

Materials

WCB A216 ; Q235,ST37 ; LBC/LCC ; WC6/WC9 ; WCC ; CA15 A217 ; M-30C ; H.B/H.C ; HT250/GG25 ; GGG40 ; SS304 ; SS304L ; SS316 ; SS316L
