Handle Operated Full Port Flanged Ball Valve Double Flange Ends GB Standard

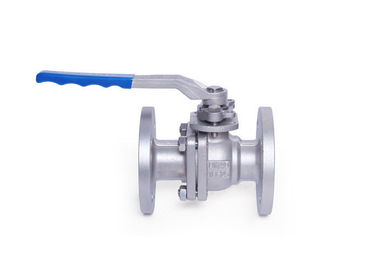

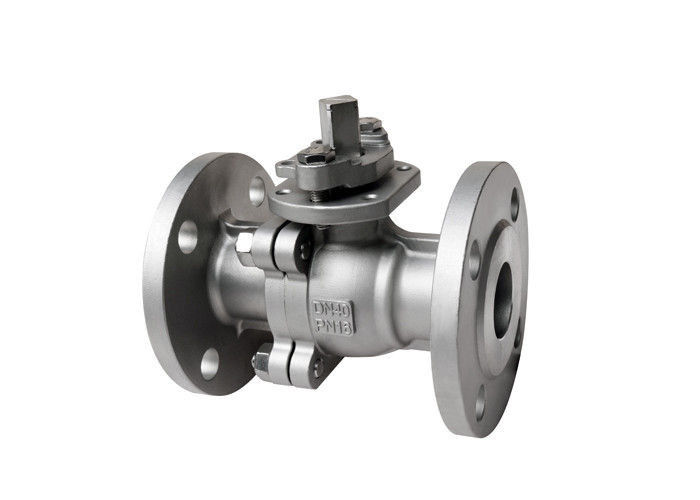

Large Image : Handle Operated Full Port Flanged Ball Valve Double Flange Ends GB Standard

Product Details:

Place of Origin:	Wenzhou China
Brand Name:	JIEYU
Certification:	API ISO Ts CE

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	7-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Mouth

Contact Now

Detailed Product Description

Valve Material:	Stainless Steel	Connection:	Flange
Size:	DN15~DN200	Operation:	Handle
Pressure:	PN16	Medium:	Water Oil Gas
High Light:	flange end ball valve , ss flanged ball valve

Handle Operated Full Port Flanged Ball Valve Double Flange Ends GB Standard

Specifications

GB Handle Oprated Ball Valve

Applicable Standards:
- Design and Manufacturing:GB12237-89

- Connection:JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection:GB/T13927-1992

Size Range:

- DN15~DN200

Pressure Rating:
- GB PN16 PN25 PN40
Temperature Range:
- -20°C~185°C

Ball valve and gate valve are the same type of valve. The difference is that the opening&closing part is a ball, and the ball rotates around the valve body to achieve the valve opens&closes. The ball valve is mainly used in the pipeline to cut, distribute and change the flow direction of the medium. Flange ball valve standard GB/T21465-2008 "Valve terminology" is defined as: the opening and closing member (sphere) is driven by the valve stem and rotates around the axis of the valve stem.

Unit:mm
Pressure	Size	L	φE	φB	φC	T	f
PN16	15	130	95	65	45	14	2
	20	140	105	75	55	14	2
	25	150	115	85	65	14	2
	32	165	135	100	78	16	2
	40	180	145	110	85	16	3
	50	200	160	125	100	16	3
	65	220	180	145	120	18	3
	80	250	195	160	135	20	3
	100	280	215	180	155	20	3
	125	320	245	210	185	22	3
	150	360	280	240	210	24	3
	200	400	335	295	265	26	3

Application

The ball valve is mainly used in the pipeline to cut, distribute and change the flow direction of the medium.

Strength of Ball Valve

1. Anti-static performance: a spring is arranged between the ball, the valve stem and the valve body, and the static electricity generated by the switching process can be derived.

2. Since the material such as polytetrafluoroethylene has good self-lubricating property and the friction loss with the spherical body is small, the service life of the pneumatic ball valve is long.

3. The fluid resistance is low, and the pneumatic ball valve is the one with the smallest fluid resistance in all kinds of valve.

4. The valve stem seal is reliable. Because the valve stem only performs the same movement as the lifting movement, the packing seal of the valve stem is not easy to be damaged, and the sealing capacity increases as the pressure of the medium increases.

Model Selection

2PC Full Port Floating Ball Valve

Standard	ANSI	GB	JIS	DIN
Pressure	150LB/300LB	PN16/PN25/PN40	10K/20K	PN16/PN25/PN40
Matreial	1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB
Model	1) High Platform Model 2) Handle Model
