Product Details:
Payment & Shipping Terms:
|
Size: | DN50~DN300 | Temperature: | -196°~593° |
---|---|---|---|
Material: | WCB, LCB, WC6, WC9, C12,CF8, CF8M, CF3,CF3M,etc | Operation Method: | Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator |
Connection End Type: | ASME B16.5, ASNE B16.47, BSEN 1092,DIN | Pressure: | PN16~PN160 |
High Light: | wcb globe valve,industrial globe valve |

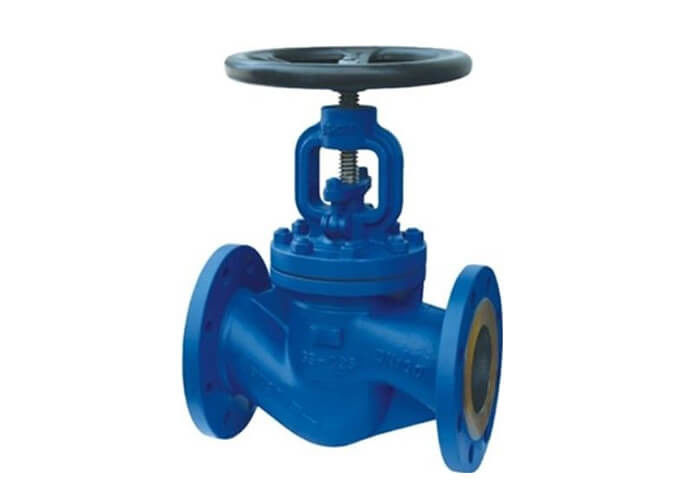

Flexible Wedge Cast Globe Valve / Cast Steel Globe Valve Stable Performance
Size:DN50~DN300
Class:PN10~PN160
Body Material:Cast Carbon Steel,Cast Alloy Steel,Cast Stainless Steel,Duplex Steel,etc.
OS&Y,Rising Stem
Bolted bonnet
Conic Disc
Locking Device (On Request)
Extended Bonnet for Cryogenic Service(On Request)
Design: | DIN3356,EN13709, |
Face to Face: | DIN3202,EN558 |
End Flange: | DIN2543,DIN2544,DIN2545,DIN2546,DIN2547,DIN2548 |
Test: | DIN3230,EN12266-1 |
Contact Person: Hu
Tel: 86-13957755057
