Body Material: | CF8/CF8M/CF3/CF3M | Screen: | CF8/CF8M/CF3/CF3M |
---|---|---|---|
Temperature: | -25℃~180℃ | Pressure: | 150LB |
Medium: | Water.Air.gas | Bonnet Bolt: | WCB/SS304 |
High Light: | stainless steel y strainer flanged,flanged y type strainer |

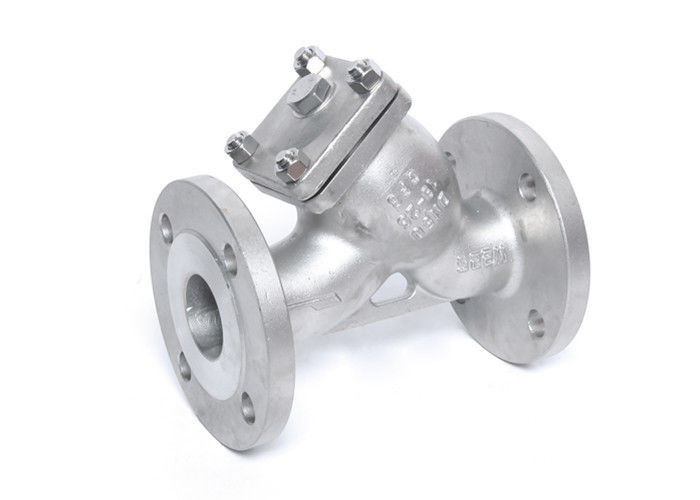

Flange Connection 2 Inch Y Strainer Valve Stainless Steel For Natural Gas
Specifications
Size: 1/2"~12"
Material: CF8M/CF8,SS316/SS304,1.4408/1.4301,WCB
Design Standard: ASME B16.34 API 6D
Wall Thickness: ASME B16.34
Inspection/Testing: API598
Application
Y-type filter is an indispensable filter device for conveying medium. Y-type filter is usually installed at the inlet end of pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to remove impurities in the medium. To protect the normal use of valves and equipment. Y-type filter has the characteristics of advanced structure, low resistance and convenient sewage discharge. The Y-type filter is suitable for water, oil and gas. The general water network is 18~30 mesh, the ventilation net is 10~100 mesh, and the oil network is 100~480 mesh. The basket filter is mainly composed of a nozzle, a main pipe, a filter blue, a flange, a flange cover and a fastener. When the liquid enters the filter blue through the main pipe, the solid impurity particles are blocked in the filter blue, and the clean fluid passes through the filter blue and is discharged from the filter outlet.
Feature
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
FAQ
Q: Are you trading company or manufacturer ?
A: We are a factory.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
