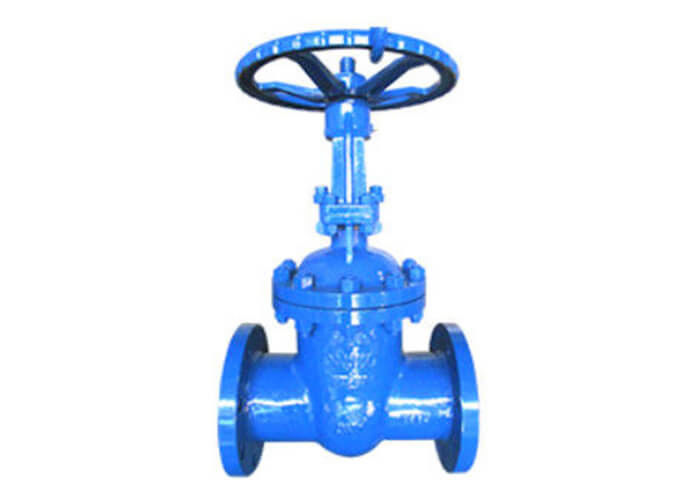

DN50-DN1200 Bolted Bonnet Cast Steel Gate Valve API ISO CE Certification

DN50-DN1200 Bolted Bonnet Cast Steel Gate Valve API ISO CE Certification
DN50-DN1200 Bolted Bonnet Cast Steel Gate Valve API ISO CE Certification

Large Image :  DN50-DN1200 Bolted Bonnet Cast Steel Gate Valve API ISO CE Certification

Product Details:

Place of Origin: Wenzhou China
Brand Name: JIEYU
Certification: API ISO Ts CE

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 7-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/Mouth
Contact Now
Detailed Product Description
Material: WC6, WC9, C12,CF8, CF8M, CF3,CF3M,etc Pressure Rating: PN10~PN160
Temperature: -196°~593° Connection End: ASME B16.5, ASNE B16.47, BSEN 1092
Size: DN50~DN1200 Operation Method: Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
High Light:

industrial gate valve

,

full bore gate valve

Din Cast Gate Valve , Cast Steel Gate Valve API ISO CE Certification



Features



Size:DN50~DN1200
Class:PN10~PN160
Body Material:Cast Carbon Steel,Cast Alloy Steel,Cast Stainless Steel,Duplex Steel,etc.
OS&Y,Rising Stem
Bolted bonnet
Flexible Wedge
By Pass (On Request)
Extended Bonnet for Cryogenic Service(On Request)



Specification

Design: DIN3352,EN1984
Face to Face: DIN3202,EN558,EN12982
End Flange: DIN2532,DIN2546,DIN2547,DIN2548
BW Ends: EN12627
Test: EN12266-1
