Product Details:
Payment & Shipping Terms:
|
| Material: | ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB | Media: | Oil, Gas, Water, Steam, Acids |
|---|---|---|---|
| Operation: | Handwheel | Pressure: | PN10 / 16 / 40 / 64 |
| Connection End Type: | Bolted Bonnet Socket-Welding End, Threaded End, Flange End, Socket-Welding & Threaded End (to Order) | Size: | 1-1/2"~48" |
| High Light: | industrial gate valve,full bore gate valve |
||

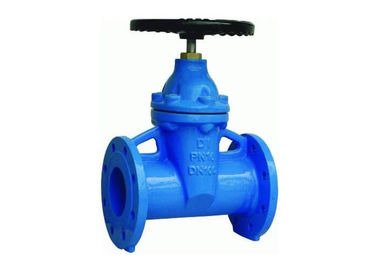

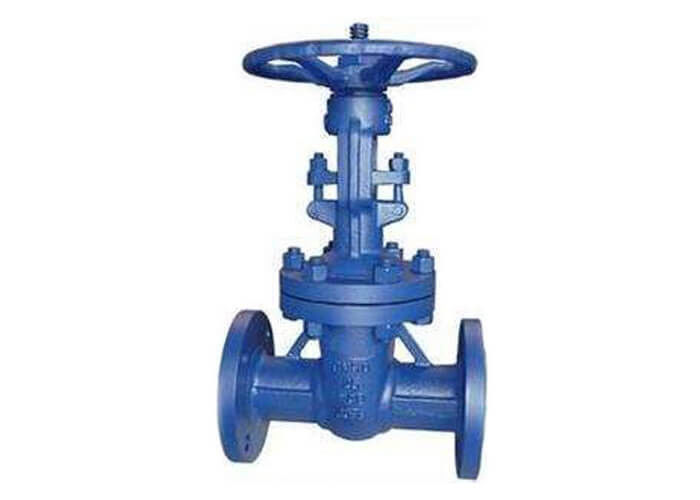

DIN Standard Cast Steel Gate Valve PN10 / 16 / 40 / 64 Pressure Handwheel Operation
Gate valves are characterised as having either a rising or a nonrising stem. Rising stems provide a visual indication of valve position because the stem is attached to the gate such that the gate and stem rise and lower together as the valve is operated. Nonrising stem valves may have a pointer threaded onto the upper end of the stem to indicate valve position, since the gate travels up or down the stem on the threads without raising or lowering the stem.
Design Description
Full Port Design
OS&Y, outside screw and yoke
BB, Bolted Bonnet
Flexible wedge, fully guided
Choice of Solid or Split Wedge
Renewable Seat Rings
Rising Stem and Non-rising Handwheel
Flanged
Available with BG operator.
Standard:
Steel Gate Valves, API 600/API 6D
Steel Gate Valves, ISO 10434/ISO14313
Steel Valves, ASME B 16.34
Face to Face: ASME B16.10
End Flanges: ASME B16.5
Inspection and Test, API 598 /API 6D
Specification
| Product Name | API Wcb Flange Cast Steel Gate Valve (150LB~1500LB) |
| 1. Material | A351 CF8M/CF8/CF3/CF3M, A216 WCB |
| 2. Size | 1 1/2''~48'' ( DN40~DN1200) |
| 3.Certificate | ISO9001 & CE |
| 4. Port | Full Port |
| 5. Working Pressure | 150LB~1500LB |
| 6. Connection Ends | Flange |
| 7. Working Temp. | -196ºC~450ºC |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Seal | Metal |
| Standard | |
| Design & Manufacture standard: | API 600, API 6D |
| Pressure & Temperature standard: | ASME B16.34 |
| Face to Face | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Inspection & Testing | API598 |
| Shipment | |
| Delivery Time | 15~20 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
|
30% prepayment, 70% balance paid before shipping or against copy of BL |
|
| Warranty | 12 Months after leaving factory |
| Others |
We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer |
