Product Details:
Payment & Shipping Terms:
|
| Body Material: | CF8/CF8M/CF3/CF3M | Standard: | ANSI |
|---|---|---|---|
| Size: | 1/2" ~ 8" | Connection: | Flange |
| Structure: | Split Body | Pressure: | 150LB |
| High Light: | flange end ball valve,ball valve flange type |
||

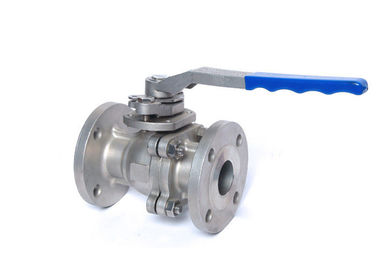

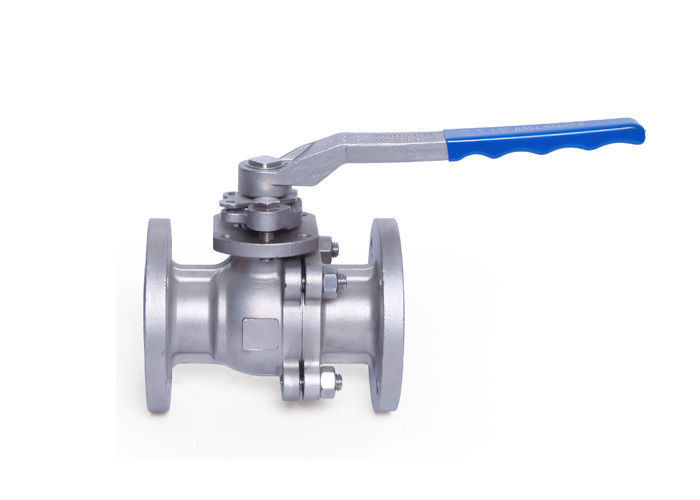

ANSI Industrial Flanged Ball Valve Split Body Stainless Steel Floating Class 150
Specifications
ANSI Standard Handle Oprated Ball Valve
Applicable Standards:
- Design and Manufacturing: ASME B16.34, API 608
- Flange Connection: ASME B16.5
- Fireproof Test: API607 4th 1993
- Test and Inspection: API598, API6D
- Face to face dimension: ASME B16.10
Size Range:
- 1/2" ~ 8"
Pressure Rating:
- ANSI 150LB 300LB
Temperature Range:
- -20°C~185°C
Ball valves shut off the flow of water using a ball, inside the valve. When in the "on" position, the opening is in line with the pipe, allowing water to flow freely. When in the "off" position, the opening is perpendicular to the flow of water, stopping the flow completely. In a ball valve, flow is controlled with a lever. Placing the lever perpendicular to the pipe allows water to flow. Moving it at 90-degree angle stops the flow.
| Unit:mm | ||||||||
| Pressure | Size | φD | L | φE | φB | φC | T | f |
| Class150 | 1/2" | 13 | 108 | 89 | 60.5 | 35 | 11.5 | 1.6 |
| 3/4" | 19 | 117 | 98 | 70 | 43 | 11.5 | 1.6 | |
| 1" | 25 | 127 | 108 | 79.5 | 51 | 12 | 1.6 | |
| 1 1/4" | 32 | 140 | 117 | 89 | 64 | 13 | 1.6 | |
| 1 1/2" | 38 | 165 | 127 | 98.5 | 73 | 15 | 1.6 | |
| 2" | 51 | 178 | 152 | 120.5 | 92 | 16 | 1.6 | |
| 2 1/2" | 64 | 190 | 178 | 139.5 | 105 | 18 | 1.6 | |
| 3" | 76 | 203 | 190 | 152.5 | 127 | 19 | 1.6 | |
| 4" | 102 | 229 | 229 | 19.5 | 157 | 24 | 1.6 | |
| 5" | 127 | 356 | 254 | 216 | 186 | 24 | 1.6 | |
| 6" | 152 | 394 | 279 | 241.5 | 216 | 26 | 1.6 | |
| 8" | 203 | 457 | 343 | 298.5 | 270 | 29 | 1.6 | |
Application
Ball valves are commonly chosen thanks to their ability to be successful used across a range of applications and markets. As mentioned before, ball valves are a big hit with the oil and natural gas industry, but also find a place in many manufacturing sectors, chemical storage, and even residential uses.
Why choose ball valve?
Ball valves enjoy massive popularity thanks to their compact and low maintenance design that requires no lubrication while still offering users a tight seal with minimal torque. Ball valves are also the least expensive option when it comes to choosing among all of the valve arrangement types.
Model Selection
2PC Full Port Floating Low Platform Ball Valve
| Standard | ANSI | GB | JIS | DIN |
| Pressure | 150LB/300LB | PN16/PN25/PN40 | 10K/20K | PN16/PN25/PN40 |
| Matreial | 1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB | |||
| Model | 1) High Platform Model 2) Handle Model | |||
