6 Inch Industrial Globe Valve , Stainless Steel Globe Valve For Flow Control

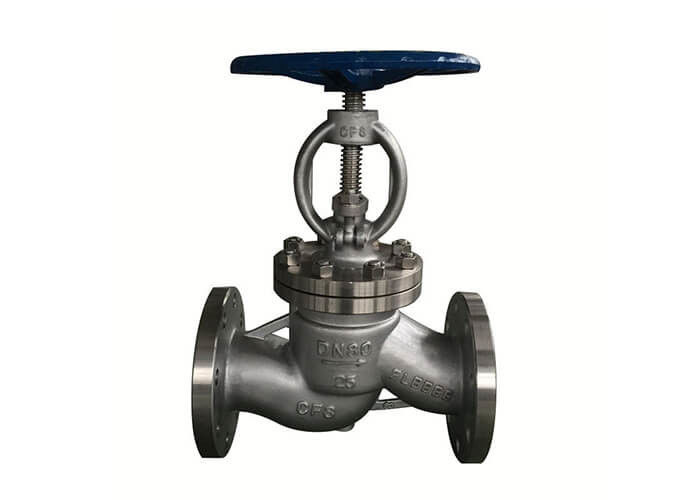

Large Image : 6 Inch Industrial Globe Valve , Stainless Steel Globe Valve For Flow Control

Product Details:

Place of Origin:	Wenzhou China
Brand Name:	JIEYU
Certification:	API ISO Ts CE

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	7-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Mouth

Contact Now

Detailed Product Description

Body:	Cast Lron,Ductile Lron,Carbon Steel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L	Disc:	Ductile Lron Coated By Nylon,Ductile Lron Coated By Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316l,Duplex Stainless Steel,Aluminum Bronze
Seat:	EPDM,NBR,PTFE,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon Rubber	Stem:	Carbon Steel 45#,Stainess Steel 416,Stainless Steel 304,Stainless Steel 316
Nominal Pressure:	DN40-DN150	Design Specification:	GB/T 12235
High Light:	flange globe valve , wcb globe valve

6 Inch Industrial Globe Valve , Stainless Steel Globe Valve For Flow Control

【Product Usage】
The opening and closing parts of J41H, J41Y and J41W GB stainless steel globe valves are cylindrical discs with a flat or conical surface and the valve disc moves linearly along the centerline of the fluid. The national standard stop valve is only suitable for full opening and full closing. It is generally not used to regulate the flow. It is allowed to adjust and throttle when customized.

【Features】
1. Simple structure, convenient manufacturing and maintenance
2, the work schedule is small, the opening and closing time is short
3, good sealing, small friction between sealing surfaces, long life

[Executive Standards]
Design specification: GB/T 12235
Structure length: GB/T 12221
Flange connection: JB/T 79
Test and inspection: JB/T 9002
Product identification: GB/T 12220
Supply specification: JB/T 7928

[performance parameters]

Model		J41H-16C～160C	J41Y-16C～160C	J41W-16P～160P
Working pressure (MPa)		1.6～16.0
Applicable temperature (°C)		≤425		≤150
Applicable medium		Water, steam, oil		Weakly corrosive medium
material	Valve body, bonnet	Carbon steel		Chrome nickel titanium stainless steel
	Valve stem	Chrome stainless steel		Chrome nickel titanium stainless steel
	Sealing surface	Surfacing iron-based alloy	Hardfacing hard alloy	Body material
	filler	Asbestos graphite, flexible graphite, PTFE

[Main shape and connection size]

Nominal diameter	[Main shape and connection size]
	L	D	D1	D2	b	Z-d	H	D0
J41H-16C
15	130	95	65	45	14-2	4-Φ14	170	120
20	150	105	75	55	14-2	4-Φ14	190	140
25	160	115	85	65	14-2	4-Φ14	205	160
32	180	135	100	78	16-2	4-Φ18	270	180
40	200	145	110	85	16-3	4-Φ18	310	200
50	230	160	125	100	16-3	4-Φ18	358	240
65	290	180	145	120	18-3	4-Φ18	373	240
80	310	195	160	135	20-3	8-Φ18	435	280
100	350	215	180	155	20-3	8-Φ18	500	300
125	400	245	210	185	22-3	8-Φ18	614	320
150	480	280	240	210	24-3	8-Φ23	674	360
200	600	335	295	265	26-3	12-Φ23	811	400
250	650	405	355	320	30-3	12-Φ25	969	450
300	750	460	410	375	30-3	12-Φ25	1145	580
350	850	520	470	435	34-4	16-Φ25	1280	640
400	980	580	525	485	36-4	16-Φ30	1452	640
J41H-25C
15	130	95	65	45	16-2	4-Φ14	170	120
20	150	105	75	55	16-2	4-Φ14	190	140
25	160	115	85	65	16-2	4-Φ14	205	160
32	180	135	100	78	18-2	4-Φ18	270	180
40	200	145	110	85	18-3	4-Φ18	310	200
50	230	160	125	100	20-3	4-Φ18	358	240
65	290	180	145	120	22-3	8-Φ18	373	240
80	310	195	160	135	22-3	8-Φ18	435	280
100	350	230	190	160	24-3	8-Φ23	500	300
125	400	270	220	188	28-3	8-Φ25	614	320
150	480	300	250	218	30-3	8-Φ25	674	360
200	600	360	310	278	34-3	12-Φ25	811	400
250	650	425	370	332	36-3	12-Φ30	969	450
300	750	485	430	390	40-4	16-Φ30	1145	580
350	850	550	490	448	44-4	16-Φ34	1280	640
400	980	610	550	505	48-4	16-Φ34	1452	640
