OS Y Type Angle Globe Valve Rising Stem Bolted Bonnet Construction
- Certification:
- API ISO Ts CE
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Plywood Case
- Delivery Time:
- 7-30 work days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10000PCS/Mouth
Detailed Product Description
| Size: | NPS 1/2"~20" | Flanged Dimenson: | ASME B16.5, ASME B16.47, BSEN 1092 |
|---|---|---|---|
| Material: | CF8M, A105, CF3,CF3M, F51, CF8, WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, CF3, CF3M | Operation Method: | Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator |
| Connection End Type: | ASME B16.5, ASNE B16.47, BSEN 1092,DINASME B16.25BSEN 558, ASME B16.5 ,BSEN 1092 | Face To Face: | ASME B16.10 |
| High Light: | wcb globe valve , industrial globe valve | ||

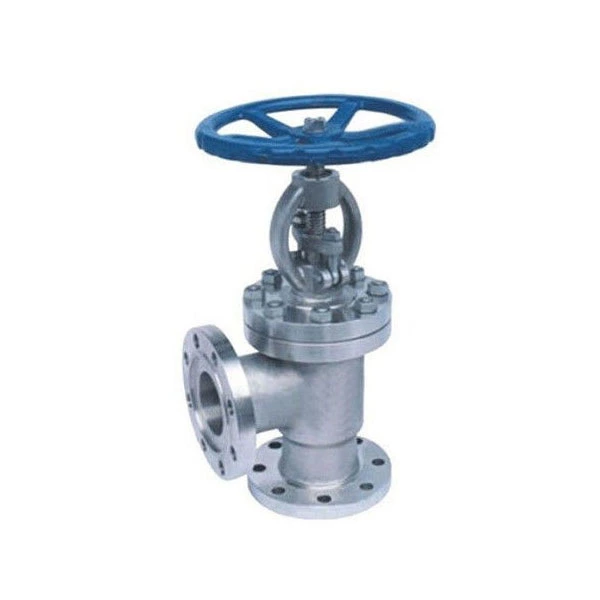

Angle Globe Valve OS Y Type Rising Stem Bolted Bonnet Construction
- Material of angle valve: Cast steel, cast iron and stainless steel.
- Size of angle valve: 1/2inch(DN15) - 20 inch (DN500)
- Pressure of angle valve: 150LB(PN10)-1500LB(PN250)
- Connection type: Flange(FF,RF,FM,RTJ) BW,SW
- Kind of drive: Wrench,Gear,Electric actuators and pneumatic actuators
- Operating temperature : -100℃ - 600℃
- Working medium : water, gas,oil,Sulfuric acid and hydrochloric acid
The angle globe valve have anther name is angle stop valve,OS & Y Type, Rising Stem, Bolted Bonnet Design
The angle globe Valves from our comapny are outside screw, rising Stem, bolted bonnet cnstruction, threads are away from the line fluid and easy to lubricate.normal stop valve,the inlet and outlet on a straight line,but the inlet of the angle type globe valve and outlet of the angle type globe valve are perpendicular to each other,so the resistance coefficient of fluid for angle globe valve is higher than conventional globe valves. so the angle type globe valve on can used for vertical installation.
The angle globe valves are generally available with plug type disc and slap type disc, they also are the forging, so it is very strong, the disc can rotate around itself,so it no need with the stem rotate simultaneously ,when the workers open and close the valve(Rotary the stem),this This structure design ensures the disc is not easy to wear . which is designed to give leak tight seating over a long period of in built wear life. the seat ring of the globe valve is replaceable type, the threaded seat ring which has large taper area that is for ample seating. Two nos. slots are provided on seat ring of body, which is for easy removal for servicing at site. Welded type seat ring & Integral seat ring are also available in globe valve. all of stems are made from solid one piece construction.they also are forging, the yoke bush of globe valve has a long thread engagement for accurate stem alignment. The standard range of our company's globe valve in sizes of up to 12 (300mm)
Design standard as per: BS1873,ASME B16.34, GB/T 12235, DIN3356
Generally, lift of disc is just 1/4 of the valve seat port, ensuring a short opening and closing time.
Only one sealing face is designed on the valve body and valve disc,
For large size valves will be designed with main disc and vice disc type, and medium flow from up disc to down disc.
Full stellite overlay seat sealing surface
Good for manufacturing process and easy to maintain.
The valve is designed as a back seat sealing structure.
Use flexible and woven graphite collaboration type packing or PTFE packing(V type).
