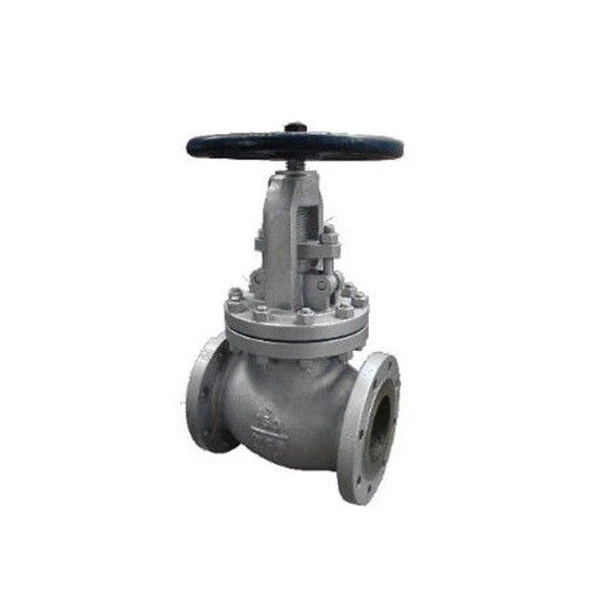

Lever Operation Industrial Globe Valve Flange Type , Carbon Steel Globe Valve
- Size:
- 1/2"~36"
- Pressure:
- CL150~2500
- Operation:
- Lever
- Materials:
- Carbon Steel
- High Light:
- flange globe valve , industrial globe valve
- Connection End Type:
- ASME B16.25BSEN 558, ASME B16.5 ,BSEN 1092
- Flanged Dimenson:
- ASME B16.5, ASME B16.47, BSEN 1092
Flanged End Cast Globe Valve Carbon Steel 1/2" - 36" Size Stainless Steel Material
Specifications:
- 1/2"~36"(DN15~DN900)
- W. P.:PN16 CLASS 150/300/600/900/1500/2500
| ITEM | PARTS | MATERIAL | ||
| Trim1 | Trim5 | Trim8 | ||
| 1 | BODY | ASTM A216-WCB | ||
| 2 | SEAT RING | ASTM A216-WCB+Cr13 | ASTM A105+STL#6 | ASTM A105+STL#6 |
| 3 | DISC | ASTM A216-WCB+Cr13 | ASTM A105+STL#6 | ASTM A216-WCB+Cr13 |
| 4 | STEM | ASTM A182-F6a | ||
| 5 | GASKET | SPW SS304+GRAPHITE | ||
| 6 | BONNET | ASTM A216-WCB | ||
| 7 | NUT | ASTM A194-2H | ||
| 8 | STUD | ASTM A193-B7 | ||
| 9 | BACK SEAT | ASTM A276-410 | ||
| 10 | PACKING A | GRAPHITE | ||
| 11 | PACKING B | |||
| 12 | PACKING C | |||
| 13 | GLAND | ASTM A276-410 | ||
| 14 | GLAND FLANGE | ASTM A216-WCB | ||
| 15 | STEM BUSHING | ASTM A439 D-2 | ||
| 16 | SCREW | ASTM A29-1035 | ||
| 17 | HANDWHEEL | DUCTILE IRON | ||
| 18 | WASHER | ASTM A29-1025 | ||
| 19 | HANDWHEEL NUT | ASTM A29-1045 | ||
| 20 | DISC NUT | ASTM A276-410 | ||
| 21 | EYE BOLT | ASTM A193-B7 | ||
| 22 | NUT | ASTM A194-2H | ||
| 23 | PIN | ASTM A29-1025 | ||
| 24 | NAMEPLATE | SS 304 | ||
| 25 | RIVET | |||
