Detailed Product Description
| Media: |
Gas |
Structure: |
Gate |
| Power: |
Manual |
Application: |
Oil ,gas ,water |
| Material: |
Cast Steel |
Pressure: |
Low Pressure |
| High Light: |
wcb globe valve , industrial globe valve |

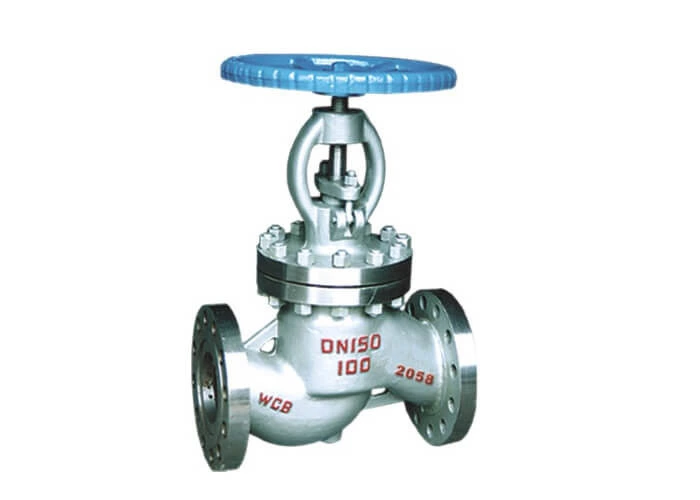

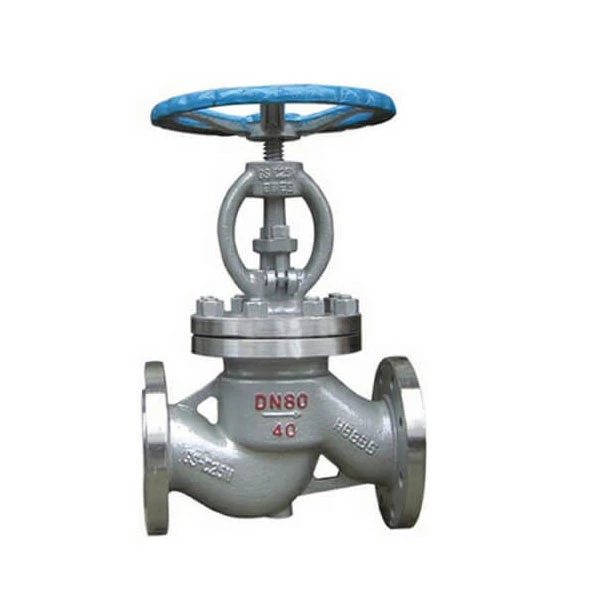

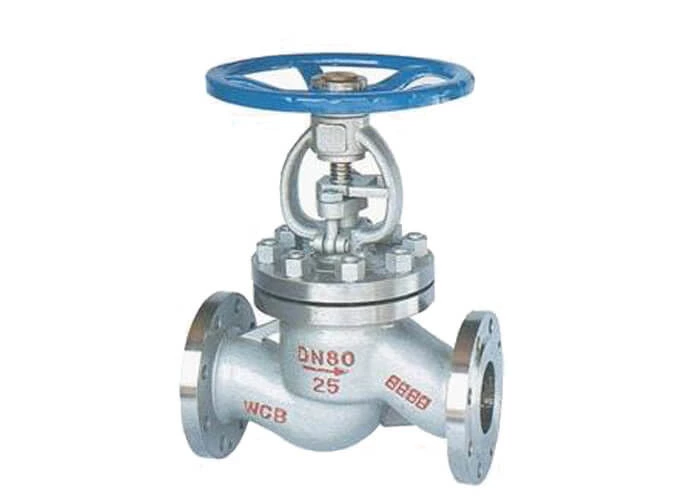

J41 J941russian standard cast steel globe valve and motorized globe valve price
Structural Features:
· Straigh pattern body design
· OS&Y, Outside screw and yoke
· BB, Bolted bonnet
· Yoke integral with bonnet
· Rising stem and handwheel
· Loose disc , choice of plug or ball
· Renewable seat ring
· Impact handwheel for 10 inch or above horizontal service
· Flanged or butt welding ends.
Technical Specification
Design and Manufacture: BS1873 or ASME B16.34
Inspection and Test: API 598
End flange dimension: ASME B16.5
BW end dimension: ASME B16.25
Socket-weld dimension: ASME B16.11
Face to face and end to end: ASME B16.10
Pressure-temperature rating: ASME B16.34
Main material :
| Parts name |
Materials |
| WCB/Trim 1 |
WCB/Trim 5 |
WCB/Trim 8 |
CF8/304 |
CF8M/316 |
| Body |
ASTM A216 WCB |
ASTM A216 WCB |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8M |
| Seating ring |
A105+13Cr |
A105+STL |
A105+STL |
ASTM A351 CF8 |
ASTM A351 CF8M |
| Disc |
ASTM A216 WCB+13C.r |
ASTM A216 WCB+STL |
ASTM A216 WCB+13Cr |
ASTM A351 CF8 |
ASTM A351 CF8M |
| Stem |
ASTM A182 F6a |
ASTM A182 F6a |
ASTM A182 F6a |
ASTM A182 F304 |
ASTM A182 F316 |
| Disc nut |
ASTM A216 WCB |
ASTM A216 WCB |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8M |
| Bonnet nut |
ASTM A194 2H |
ASTM A194 2H |
ASTM A194 2H |
ASTM A194 8 |
ASTM A194 8M |
| Bonnet bolt |
ASTM A193 B7 |
ASTM A193 B7 |
ASTM A193 B7 |
ASTM A193 B8 |
ASTM A193 B8M |
| Gasket |
304 sheet+ Graphite |
304 sheet+ Graphite |
304 sheet+ Graphite |
304+ Graphite |
316+ Graphite |
| Backseat bushing |
ASTM A182 F6a |
ASTM A182 F6a |
ASTM A182 F6a |
ASTM A351 CF8 |
ASTM A351 CF8M |
| Bonnet |
ASTM A216 WCB |
ASTM A216 WCB |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8M |
| Packing |
Graphite |
Graphite |
Graphite |
Graphite |
Graphite |
| Eyebolt pin |
ASTM A36 |
ASTM A36 |
ASTM A36 |
304SS |
316SS |
| Gland eyebolt |
ASTM A193 B7 |
ASTM A193 B7 |
ASTM A193 B7 |
ASTM A193 B8 |
ASTM A193 B8M |
| Gland |
ASTM A182 F6a |
ASTM A182 F6a |
ASTM A182 F6a |
ASTM A182 F304 |
ASTM A182 F316 |
| Gland Flange |
ASTM A216 WCB |
ASTM A216 WCB |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8M |
| Eyebolt nut |
ASTM A194 2H |
ASTM A194 2H |
ASTM A194 2H |
ASTM A194 8 |
ASTM A351 CF8M |
| Stem nut |
ASTM A493 D2 |
ASTM A493 D2 |
ASTM A493 D2 |
ASTM A493 D2 |
ASTM A493 D2 |
| Hand wheel |
Ductile Iron |
Ductile Iron |
Ductile Iron |
Ductile Iron |
Ductile Iron |
| Hand wheel |
Carbon steel |
Carbon steel |
Carbon steel |
Carbon steel |
Carbon steel |
| The main products of our company include: |
| (1) ANSI gate valve, DIN gate valve, GOST gate valve, Soft sealing gate valve, Knife gate vave, Flat gate valve |
| (2)Wafer type butterfly valve, flange type butterlfy valve, single eccentric butterfly valve, double eccentric butterfly valve, Three eccentric buterrfly valve |
| (3)Check valve, lift check valve, swing check valve, wafer type check valve, spring check valve |
| (4) ball valve, tee ball valve, 4 way ball valve, welding ball valve |
| (5)strainer, filter, Y type strianer |
| Materials |
| WCB A216 ; Q235,ST37 ; LBC/LCC ; WC6/WC9 ; WCC ; CA15 A217 ; M-30C ; H.B/H.C ; HT250/GG25 ; GGG40 ; SS304 ; SS304L ; SS316 ; SS316L |
