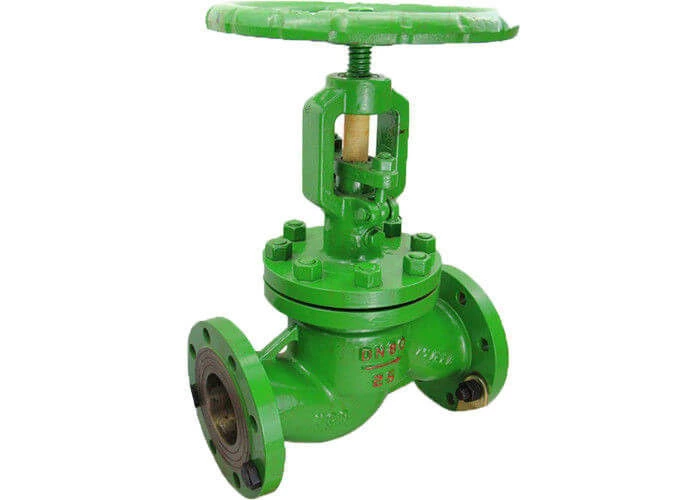

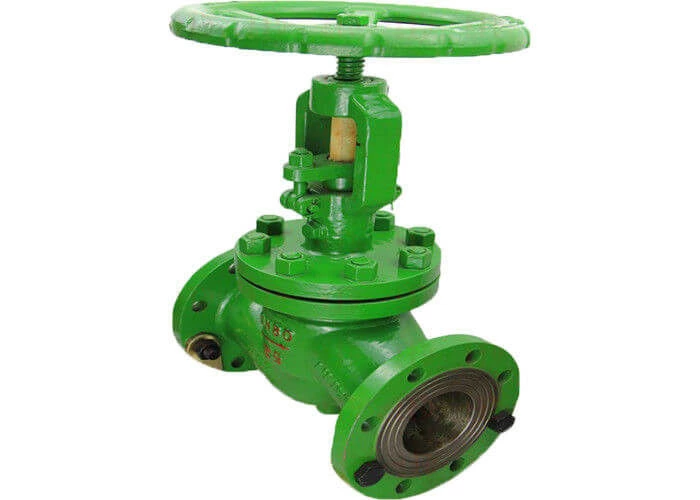

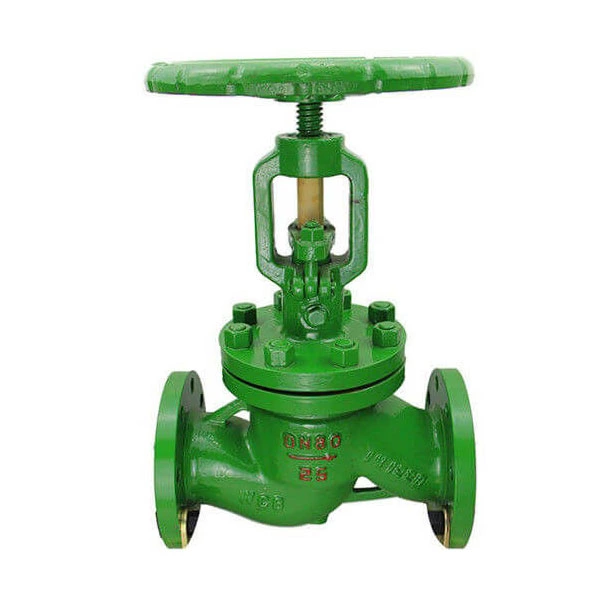

Durable Cast Steel Flange Globe Valve Manual Wheel Operated For Water Steam

Durable Stainless Steel Globe Valve Manual Wheel Operated For Water Steam

Flange Globe valves offer the ultimate in dependavle service for steam, air, gas, oil , oil vapor and high pressure in stallations. All have streight-though ports to assure minimum turbulence, erosion, and resistance to flow. They are available in a wide variety of trims.

1 . Body: Body is cast with heavy sections reinforced at points subjected to the greates stress.

2 . Disc: Disc is plug type.

3 . Stem: The Tee-head disc-stem connection prevents lateral strain on the stem for smooth, easy operation.

4 . Bonnet Gasket: Bonnet gasket provides a positive seal against leakage. PN16 to PN40 valves have a male/Female bonnet joint. A ring type gasket is employed in PN63 to PN100

5 . Operator: Handwheel, Gear Box, Pneumatic, Electric Acutator

Technical Specifications:

• Design & Manufacture standard: DIN3356
• Face to face dimension standard: DIN3202
• Flange standard: DIN2543 to DIN2546
• Test & Inspect: DIN3230
