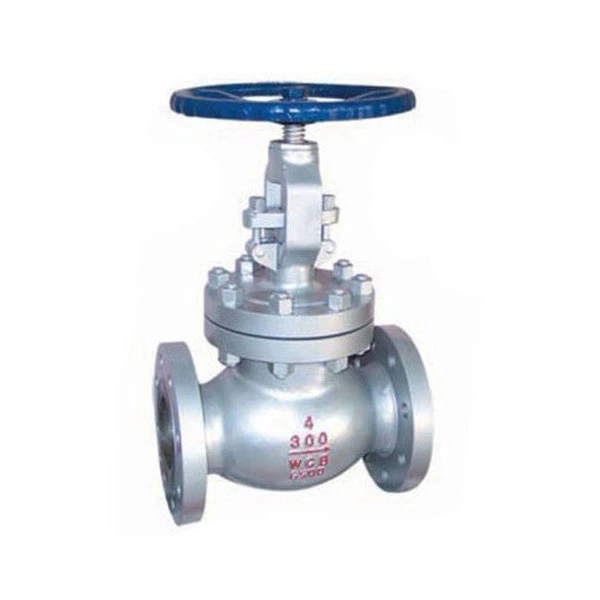

300lb ASTM A216 Wcb Globe Valve With Flanged / Butt - Welding End Connection
- Application:
- Lining Fluorine Valve, Needle Type Globe Valve, Cryogenic Globe Valve, Plunger Type Globe Valve, Heat Preservation Globe Valve, Forged Steel Globe Valve, Oxygen Globe Valve, Bellows Globe Valve
- High Light:
- flange globe valve , wcb globe valve
- Standard:
- ANSI
- Connection:
- Flanged Or Butt-Welding End
- Actuator:
- Manual
- Usage:
- Regulation, Safety, Emptying, Drain, Temperature Control, Flow Control
- Bore:
- Full Port Design, Regular Bore Design
300lb ASTM A216 Wcb Cast Steel Globe Valves
Application:
Applicable Temperature: ≤425 ºC
Main Materials: WCB/CF8/CF8M/CF3/CF3M
Applicable Medium: Water / Oil / Gas / Causticity Medium
Pressure Rating: PN10-PN100, 150LB-1500LB
Size Range: 1/2" ~ 12"(DN15-DN300)
Main Material:
| ITEM | PART | MATERIAL | ||
| 1 | Body | CF8M/CF3M | CF8/CF3 | WCB |
| 2 | Disc | CF8M/CF3M | CF8/CF3 | WCB |
| 3 | Half Ring | 304 | ||
| 4 | Disc Cover | CF8M/CF3M | CF8/CF3 | WCB |
| 5 | Bolt | A193-B8 | ||
| 6 | Gasket | PTFE | ||
| 7 | Nut | A194-8 | ||
| 8 | Stem Packing | PTFE | ||
| 9 | Bonnet | CF8M/CF3M | CF8/CF3 | WCB |
| 10 | Stem | 316 | 304 | |
| 11 | Wheel Handle | FCD | ||
| 12 | Stem Nut | A194-8 | ||
| 13 | Washer | 301 | ||
| 14 | Small Bolt | 301 | ||
| 15 | Nut | A194-8 | ||
| 16 | Eye Bolt | 304 | ||
| 17 | Locking Pin | 304 | ||
